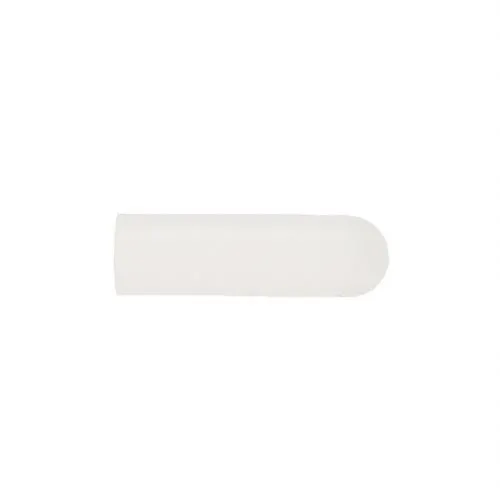

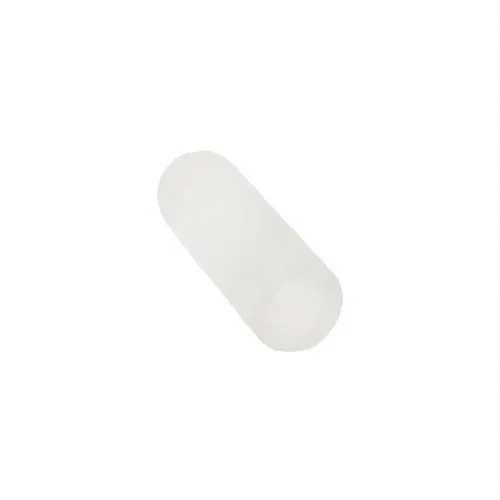

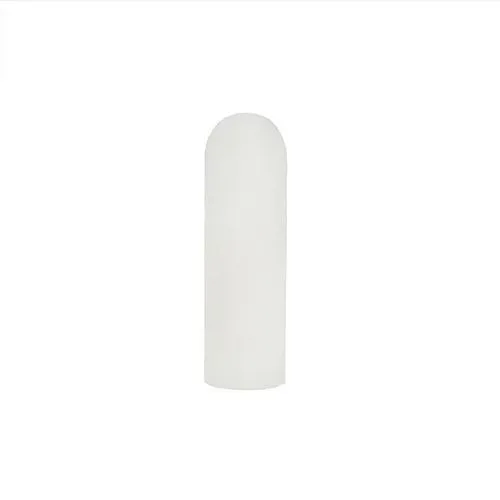

0.89mm x 12.7mm Silicone End Cap (Clear) 1.27mm Wall Thickness
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 499 | £0.07 | £0.09 |
| 500 - 999 | £0.07 | £0.08 |
| 1000 - 4999 | £0.04 | £0.05 |
| 5000 + | £0.03 | £0.03 |
Product Specification
| Internal Diameter | 0.89mm |
| Internal Length | 12.70mm |
| Wall Thickness | 1.27mm |
| Colour | Clear |
| Material | Silicone |
Frequently Bought Together
Total Price: £0.00
0.89mm Clear Silicone Cap -12.7mm Internal Length -1.27mm Wall
This 0.89mm internal diameter clear silicone masking cap with a 12.7mm internal length is a short-depth, ultra-miniature cap designed for applications where visual confirmation of correct placement matters. Suited to the finest precision engineering applications -PCB connectors, miniature medical device ports and micro-bore tube ends where virtually no other masking solution fits reliably. Push the cap firmly over the stud, tube end or port and the flexible silicone stretches to form a secure, leak-proof seal that holds through powder coating, e-coating, electroplating, anodizing and wet paint processes -withstanding continuous temperatures from -40°C to +315°C without melting, deforming or leaving residue on the masked surface. Once finishing is complete it peels away cleanly, leaving the masked surface completely unaffected.
Clear silicone lets you confirm the cap is correctly seated and that the masked surface underneath is clean before the part enters the finishing line -reducing the risk of masking errors that cause surface contamination or rejection. Reusable across multiple production cycles -a cost-effective alternative to single-use tape masking. Used across electronics assembly, precision medical device production and miniature instrument manufacturing where no other standard masking product fits these bore sizes reliably.
Common Applications
- Powder coating and e-coating masking for ultra-miniature 0.89mm bore studs, tube ends and ports
- Electroplating, anodizing and blasting protection -rated to +315°C for short studs, shallow ports and bolt-end masking where only minimal coverage depth is needed
- Reusable clear silicone masking cap for electronics assembly, medical device manufacturing and precision instrument production applications
- High-temperature silicone cap for short fastener masking and shallow port protection on industrial finishing lines

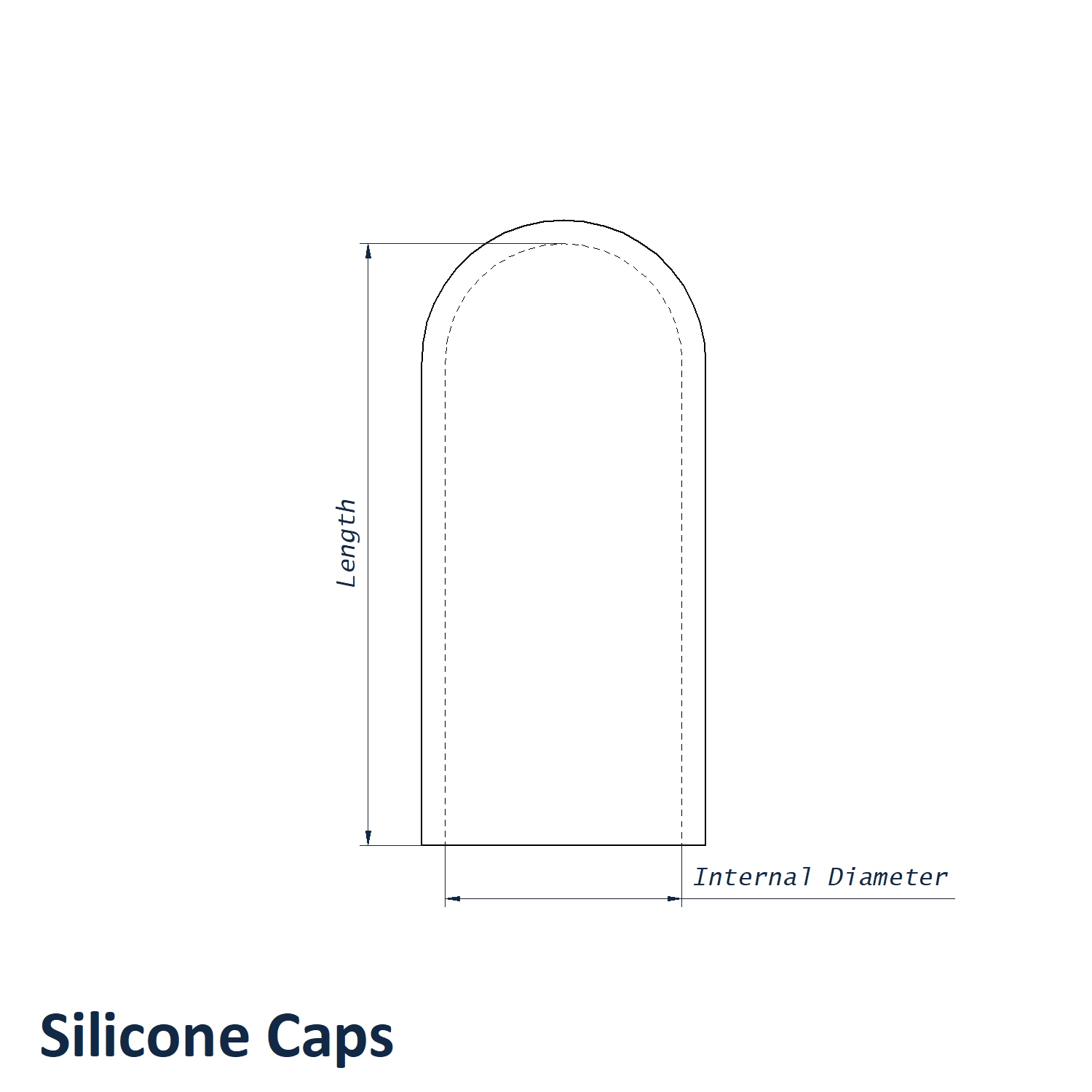

0.89mm Clear Silicone Cap Dimensions
- Internal Diameter: 0.89mm
- Internal Length: 12.7mm
- Wall Thickness: 1.27mm
- Colour: Clear
- Material: Silicone Rubber
- Temperature Range: -40°C to +315°C
- Reusable: Yes
- Chemical Resistance: Moderate -suitable where exposure to acids and alkalis is limited
- Application: Push Fit
View our full silicone cap range or browse our complete masking cap collection.
