5.49mm x 8.03mm Silicone Cone (Tapered) Cap (Clear) 12.7mm Flange
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £0.10 | £0.12 |
| 100 - 499 | £0.09 | £0.11 |
| 500 - 999 | £0.07 | £0.09 |
| 1000 - 4999 | £0.06 | £0.07 |
| 5000 + | £0.04 | £0.05 |
Product Specification
| Internal Diameter | 5.49mm |
| Outside Diameter | 8.03mm |
| Flange Diameter | 12.7mm |
| Length | 25.4mm |
| Colour | Clear |
Frequently Bought Together
Total Price: £0.00
5.49mm ID x 8.03mm OD Silicone Cone Cap | 12.7mm Flange | Clear Silicone
Manufactured for accurate high-temperature masking, this 5.49mm ID x 8.03mm OD Silicone Cone Cap is suited to finishing work where a neat seal is needed around exposed metalwork.
As a tapered silicone masking cap, it gives operators a simple cone shaped protective cap for repeat masking work. Because the cap narrows internally, it can be pushed over the part until the required seal is achieved. This makes it useful for powder coating, anodising and spray finishing where coating creep around the masked area needs to be controlled.
What Are Silicone Cone Caps?
A silicone cone cap is a reusable masking cap with a tapered internal profile. It is pushed onto a projection such as a stud, bolt, rod or tube end to keep coating materials, blasting media or process chemicals away from the area that needs to remain clean.
Common Applications
- Anodising masking for aluminium components
- Spray coating protection on machined parts
- Temporary cover for threaded rods
- Finishing work on small brackets and fixtures

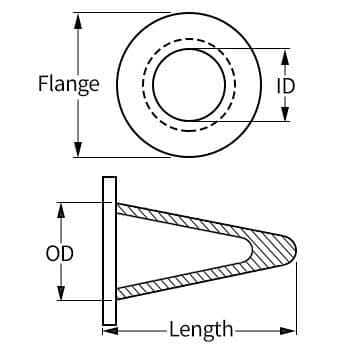

5.49mm ID x 8.03mm OD Silicone Cone Cap Dimensions
- Internal Diameter: 5.49mm
- Outside Diameter: 8.03mm
- Flange Diameter: 12.7mm
- Length: 25.4mm
- Colour: Clear
- Material: Silicone
Product Support and Bulk Orders
For production runs, mixed size masking jobs or repeat ordering, our team can help confirm the most suitable silicone cone cap before you buy. Speak to Vital Parts on 01233 713581 for sizing support, availability and bulk order help.
View our full Silicone Cone Caps range.
