Silicone Pull Plugs - SPP034
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 1 | £0.95 | £1.14 |
| 2 - 10 | £0.95 | £1.14 |
| 11 - 50 | £0.77 | £0.92 |
| 51 - 100 | £0.62 | £0.74 |
| 101 - 500 | £0.49 | £0.59 |
| 501 + | £0.39 | £0.47 |

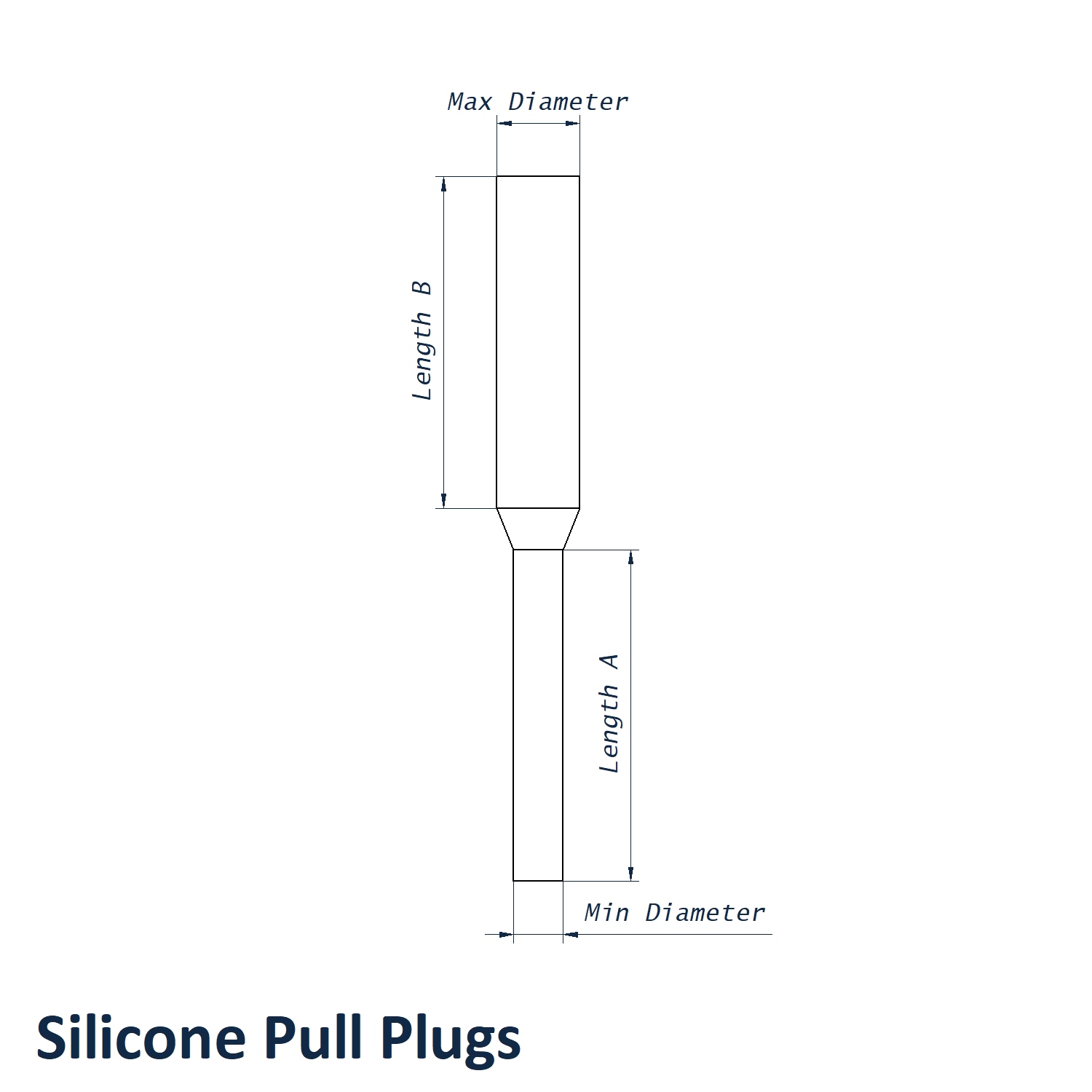

Product Specification
| Min Diameter | 4.9mm |
| Max Diameter | 10.4mm |
| Length A | 25.6mm |
| Length B | 25.4mm |
| Colour | Natural |
Frequently Bought Together
Total Price: £0.00

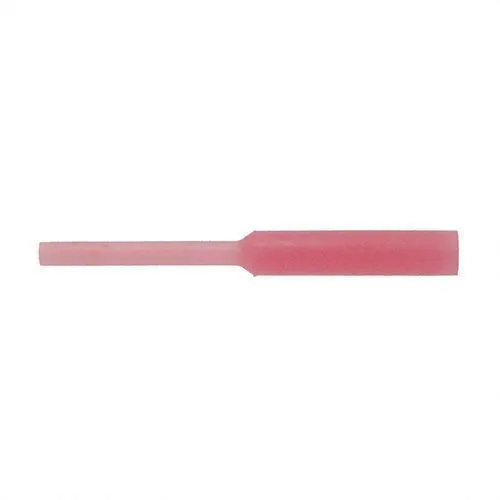

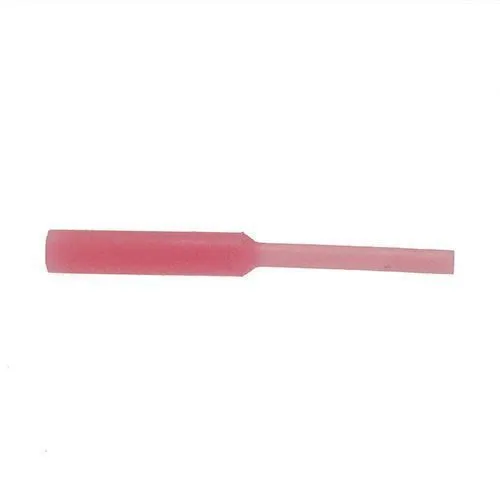

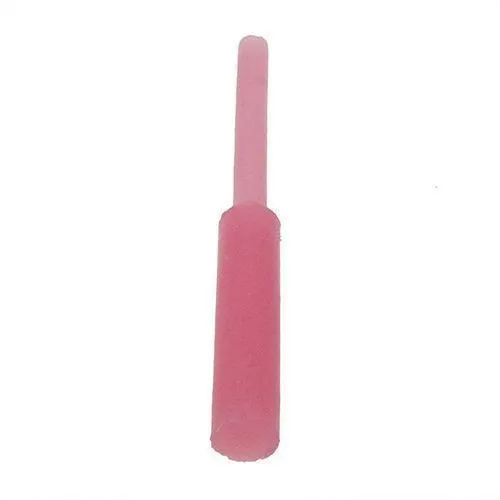

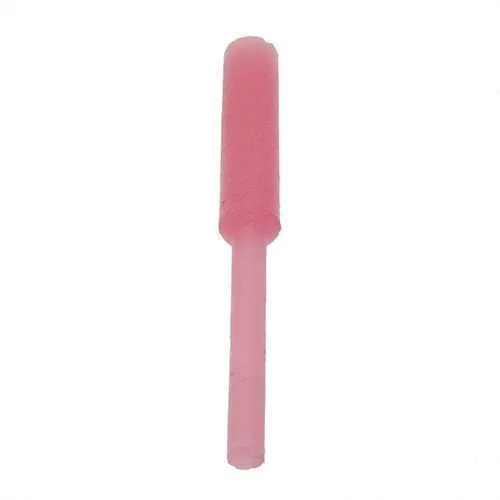

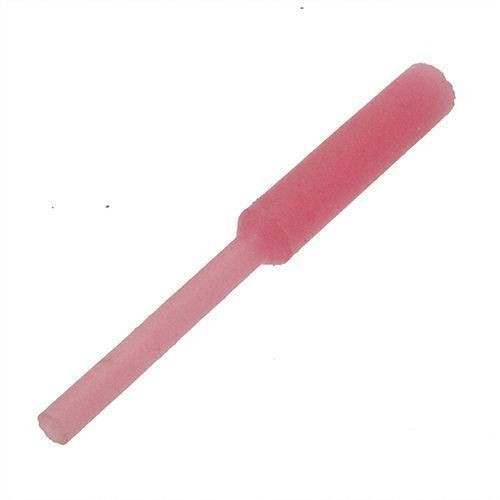

4.9mm to 10.4mm x 25.6mm Silicone Pull Plug | Natural Silicone | Vital Parts - SPP034
Our 4.9mm to 10.4mm x 25.6mm reusable pull plug provides an efficient masking solution for threaded or smooth through-holes. The resilient silicone construction withstands continuous exposure up to 315°C while the parallel design supports a clean, flush fit.
What Are Silicone Pull Plugs?
High temperature pull plugs are designed to mask through-holes without a flange covering the surrounding face. Premium silicone allows repeated use at temperatures up to 315°C and the pull-through design is well suited to busy coating and finishing lines.
Common Applications
- Painting and Spraying: Prevents paint from entering through-holes while leaving the surrounding face exposed.
- Chemical Treatment: Helps isolate selected bores from acids, alkalis and compatible process chemicals.
- Surface Preparation: Protects internal holes during blasting and pre-treatment stages.
- Equipment Manufacture: Supports repeatable masking of components before final assembly.
Technical Specifications:
- Max Diameter: 10.4mm
- Min Diameter: 4.9mm
- Length A: 25.6mm
- Length B: 25.4mm
- Colour: Natural
- Material: Silicone
- Maximum Operating Temperature: Up to 315°C
- Profile: Parallel pull-through profile with integrated pull tab
- Suitable Hole Types: Threaded and non-threaded through-holes
Related High Temperature Masking Products
If a stepped masking design is more suitable for the application, view our Silicone Step Plugs. Further parallel pull-tab options are available in the full Silicone Pull Plugs collection.
For technical guidance on pull plug sizing, high-temperature masking or volume requirements, speak with our sales team on 01233 713581.
