Silicone Pull Plugs - SPP037
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 1 | £0.95 | £1.14 |
| 2 - 10 | £0.95 | £1.14 |
| 11 - 50 | £0.77 | £0.92 |
| 51 - 100 | £0.62 | £0.74 |
| 101 - 500 | £0.49 | £0.59 |
| 501 + | £0.39 | £0.47 |

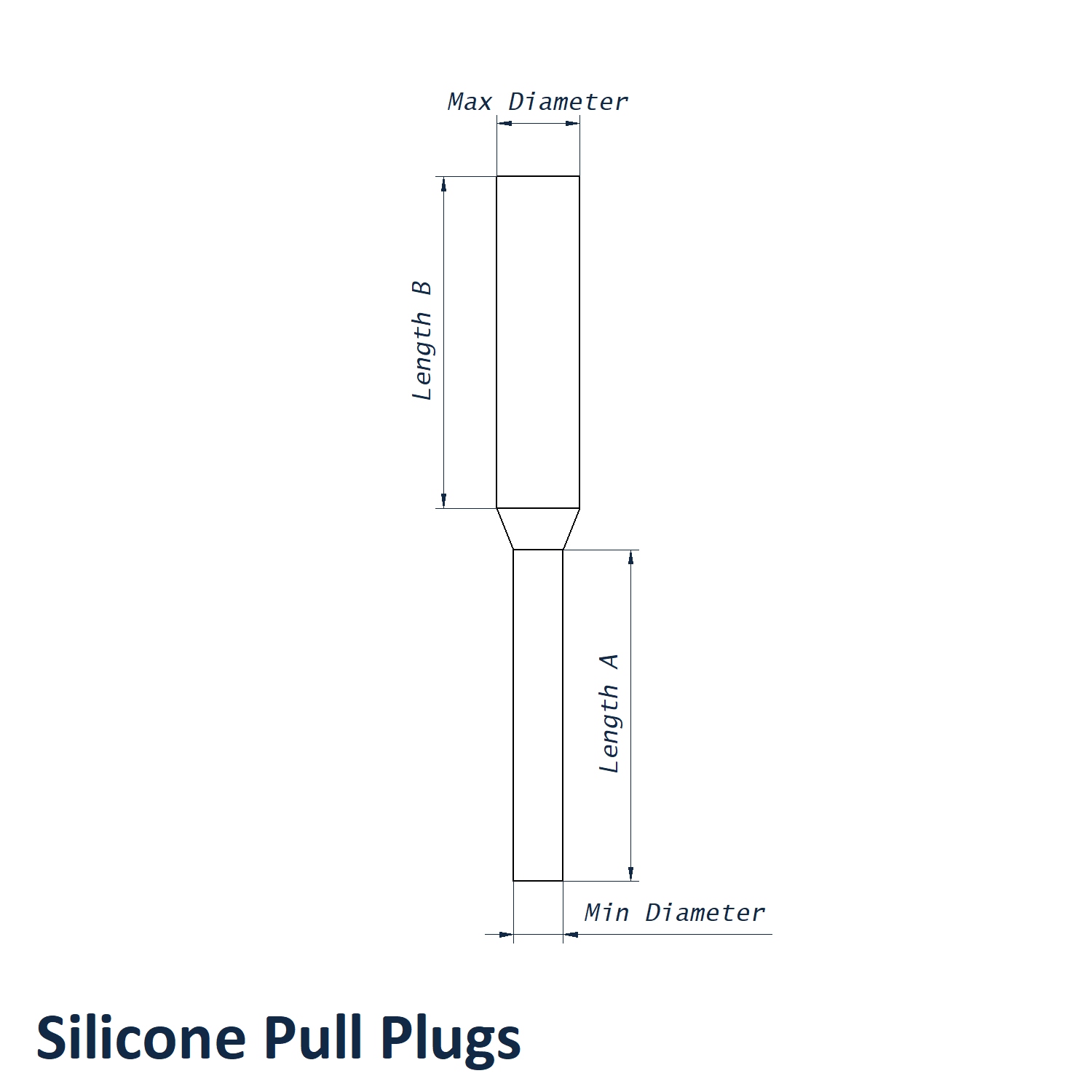

Product Specification
| Min Diameter | 6.5mm |
| Max Diameter | 11.3mm |
| Length A | 25.4mm |
| Length B | 25.4mm |
| Colour | Natural |
Frequently Bought Together
Total Price: £0.00

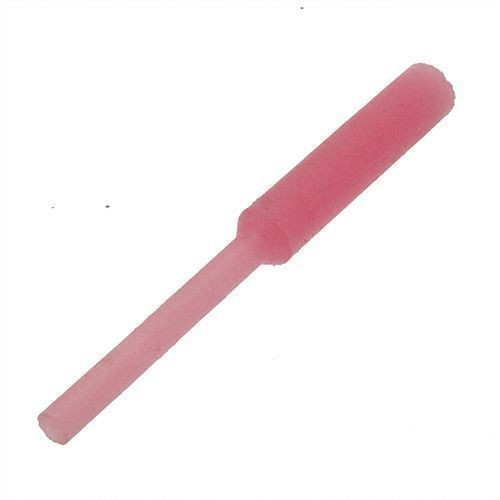

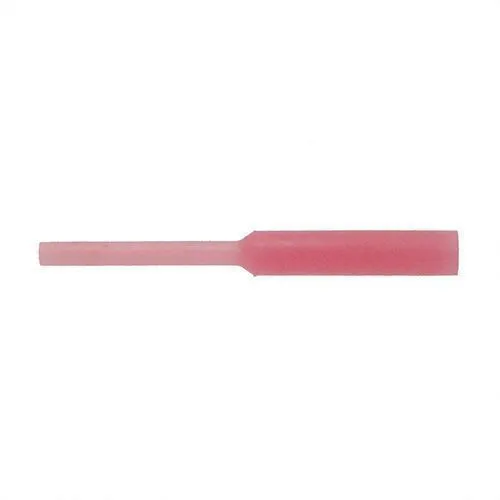

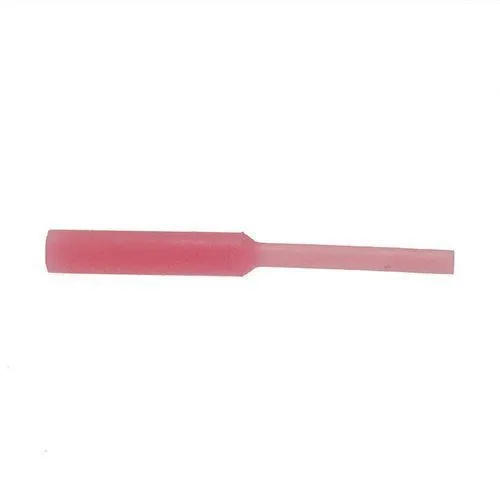

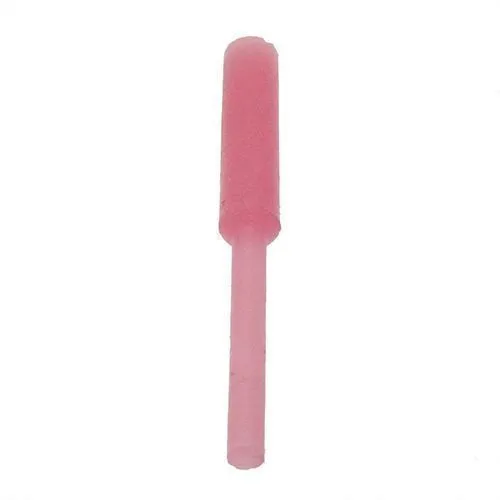

6.5mm to 11.3mm x 25.4mm Silicone Pull Plug | Natural Silicone | Vital Parts - SPP037
Our 6.5mm to 11.3mm x 25.4mm wide-diameter silicone pull plug in Natural Silicone is designed for masking threaded and non-threaded through-holes during high-temperature finishing. Its parallel body creates a secure fit while the integrated pull tab supports fast removal after processing.
What Are Silicone Pull Plugs?
Silicone pull plugs, also known as parallel plugs or high temperature masking plugs, are inserted into through-holes to prevent unwanted coating or contamination. The pull tab is fed through the opening so the parallel sealing section can be drawn into place and removed quickly after processing.
Common Applications
- Powder Coating: Keeps threaded and plain through-holes clear during powder application and oven curing.
- Anodising: Masks selected openings to prevent unwanted surface treatment inside the bore.
- Electroplating: Protects through-holes from metal deposition during plating processes.
- Shot Blasting: Shields internal surfaces from abrasive media during component preparation.
Technical Specifications:
- Max Diameter: 11.3mm
- Min Diameter: 6.5mm
- Length A: 25.4mm
- Length B: 25.4mm
- Colour: Natural
- Material: Silicone
- Maximum Operating Temperature: Up to 315°C
- Profile: Parallel pull-through profile with integrated pull tab
- Suitable Hole Types: Threaded and non-threaded through-holes
Related High Temperature Masking Products
For openings requiring a stepped profile that can suit more than one diameter, explore our Silicone Step Plugs. You can also compare further dimensions and colours within our complete Silicone Pull Plugs range.
For help matching this silicone pull plug to your through-hole diameter or to discuss larger order quantities, contact our technical sales team on 01233 713581.
