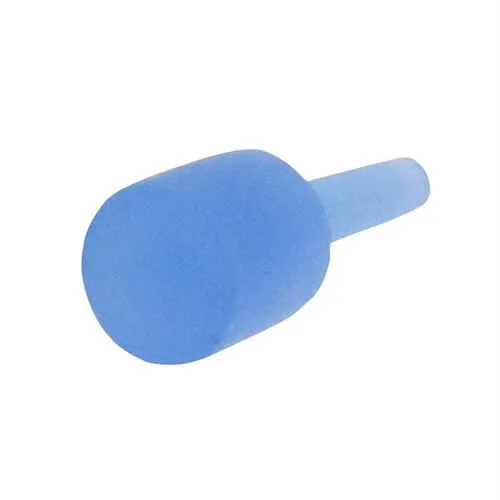

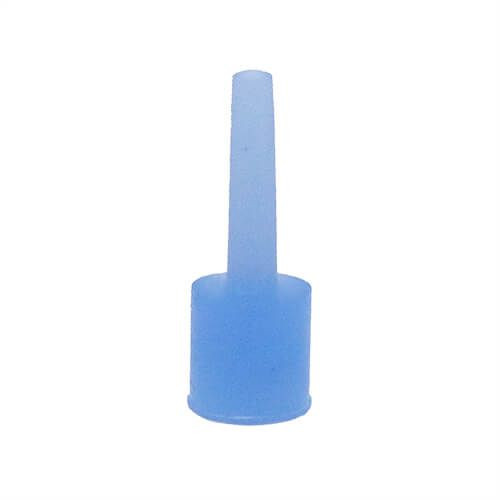

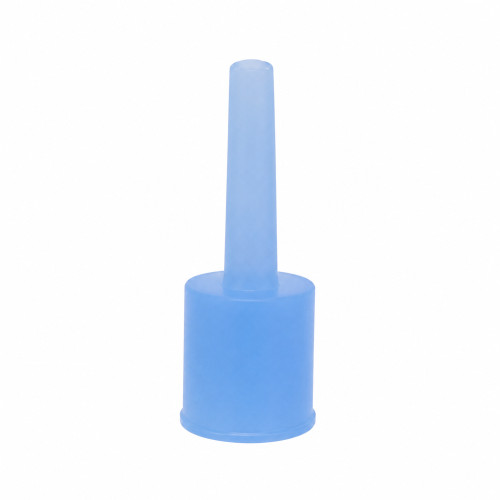

2.4-3mm Step Plug (7mm Step) 13mm Length | Light Blue Silicone
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 1 | £0.29 | £0.35 |
| 2 - 99 | £0.29 | £0.35 |
| 100 - 249 | £0.18 | £0.22 |
| 250 - 499 | £0.15 | £0.18 |
| 500 - 999 | £0.12 | £0.15 |
| 1000 + | £0.07 | £0.08 |
£0.35 / each
.png)

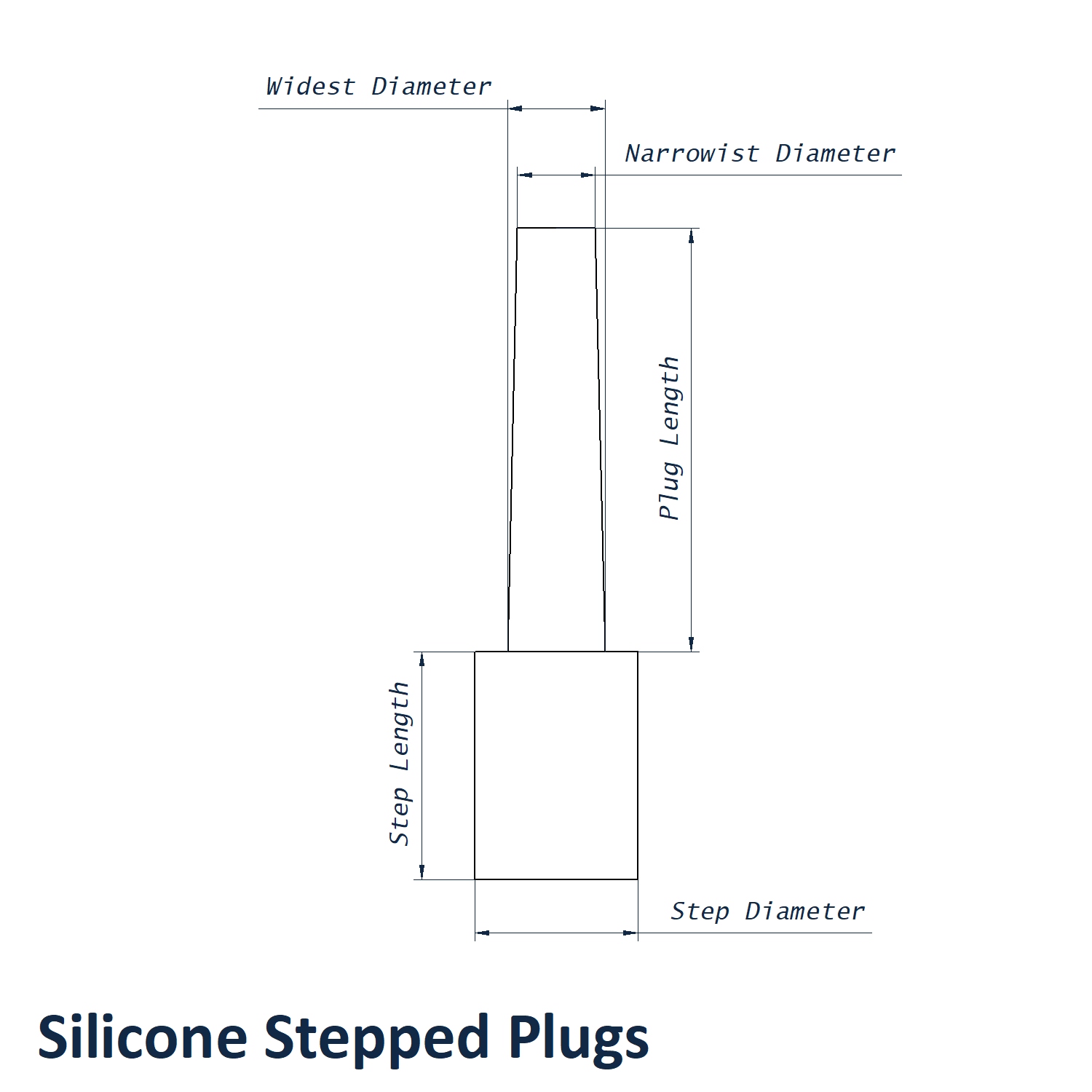

Product Specification
| Narrowest Diameter | 2.4mm |
| Widest Diameter | 3.0mm |
| Step Diameter | 5.0mm |
| Step Length | 7.0mm |
| Plug Length | 13.0mm |
| Colour | Light Blue |
Frequently Bought Together
Total Price: £0.00
5.0mm Step Diameter Silicone Step Plug | 13.0mm Plug Length | Light Blue
Designed for small hole masking, this light blue silicone step plug uses a 5.0mm step diameter and 13.0mm overall plug length to protect openings during powder coating, painting and other finishing processes. The stepped form helps one plug cover a useful hole range, making it practical for mixed components and detailed production work.
Silicone is well suited to high temperature masking because it remains flexible through repeated use and can withstand finishing environments up to 315°C. This makes the plug a good choice for small metal parts, jig work and coated assemblies where consistent hole protection is needed.
What Are Silicone Step Plugs?
Silicone step plugs are reusable high temperature masking plugs with a stepped profile that helps cover several compatible hole sizes. They are commonly used during powder coating, anodising, electroplating, painting and spraying to keep holes, threads and internal surfaces free from coating or process contamination.
Common Applications
- Masking small threaded holes before powder coating or wet spray finishing
- Protecting precision bores on jigs, brackets and fabricated metal parts
- Covering small apertures on electrical housings during paint preparation
- Colour-identifying small plug sizes on busy coating lines
5.0mm x 13.0mm Silicone Step Plug Dimensions
- Material: Silicone
- Step Diameter: 5.0mm
- Widest Diameter: 3.0mm
- Narrowest Diameter: 2.4mm
- Step Length: 7.0mm
- Plug Length: 13.0mm
- Colour: Light Blue
High Temperature Masking Use
As a light blue silicone step plug, this size is particularly useful for small aperture masking where a neat seated finish is needed before curing. The stepped shape can suit threaded and non-threaded holes, while the silicone construction supports repeated use in finishing processes up to 315°C.
View our full Silicone Step Plugs range.
Product Support and Trade Orders
For help checking step plug size, temperature suitability or bulk masking requirements, speak with the Vital Parts team on 01233 713581. We can support trade orders, samples where available and practical sizing guidance for coating and finishing work.
