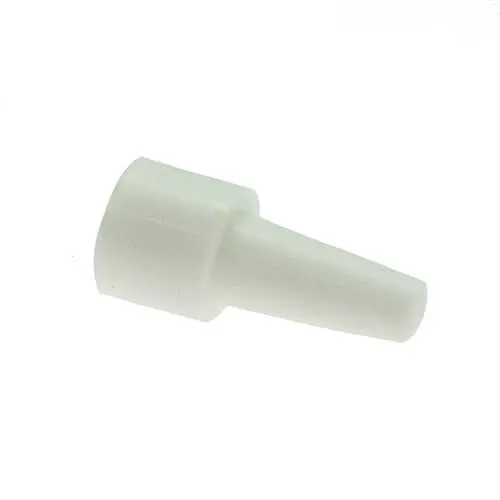

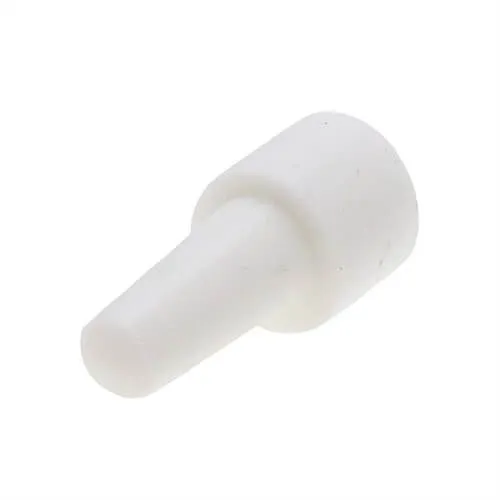

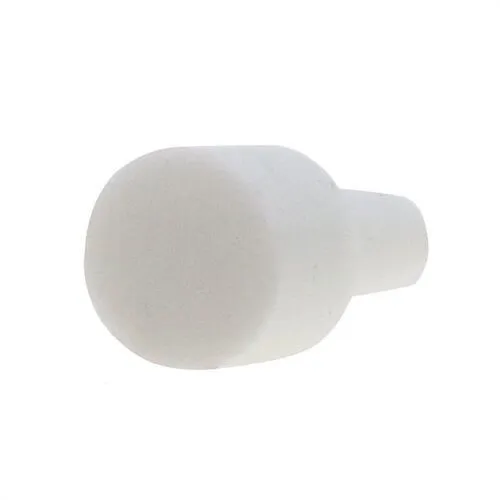

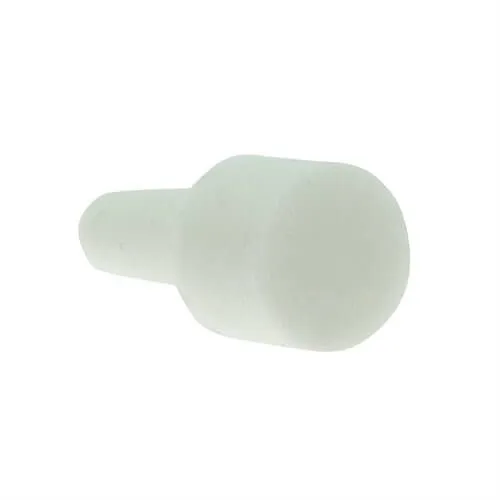

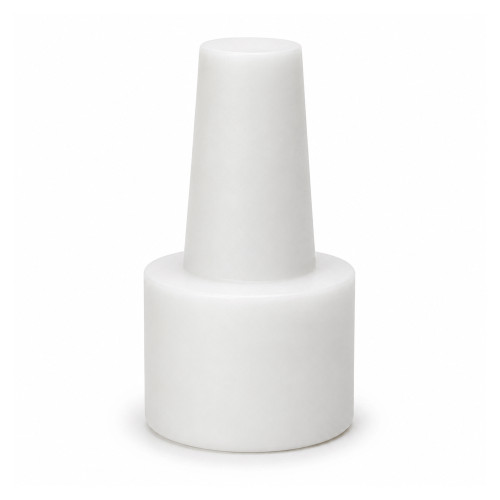

5.9-8.5mm Step Plug (9.8mm Step) 17.3mm Length | White Silicone
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 1 | £0.50 | £0.60 |
| 2 - 99 | £0.50 | £0.60 |
| 100 - 249 | £0.42 | £0.50 |
| 250 - 499 | £0.38 | £0.45 |
| 500 - 999 | £0.27 | £0.32 |
| 1000 + | £0.21 | £0.25 |
£0.60 / each
.png)
Product Specification
| Narrowest Diameter | 5.9mm |
| Widest Diameter | 8.5mm |
| Step Diameter | 12.4mm |
| Step Length | 9.8mm |
| Plug Length | 17.3mm |
| Colour | White |
Frequently Bought Together
Total Price: £0.00
12.4mm High Temperature Silicone Step Plug | 9.8mm Step Length | White
Suitable for masking larger holes in finishing and coating applications, this white silicone step plug combines a 12.4mm step diameter with a 17.3mm plug length for dependable coverage. The stepped profile allows fast fitting into compatible openings while helping maintain a clean finish around the masked area.
For teams handling fabrication, OEM finishing and maintenance components, the reusable silicone construction helps reduce single-use masking waste. The plug can be removed after curing and returned to stores for future finishing work when still in good condition.
What Are Silicone Step Plugs?
Silicone step plugs are reusable high temperature masking plugs with a stepped profile that helps cover several compatible hole sizes. They are commonly used during powder coating, anodising, electroplating, painting and spraying to keep holes, threads and internal surfaces free from coating or process contamination.
Common Applications
- Sealing larger stepped holes on industrial parts during powder coating
- Masking openings on frames, housings and manufactured assemblies
- Protecting component apertures during painting, blasting preparation or spraying
- Fast visual size selection for coating teams handling mixed production work

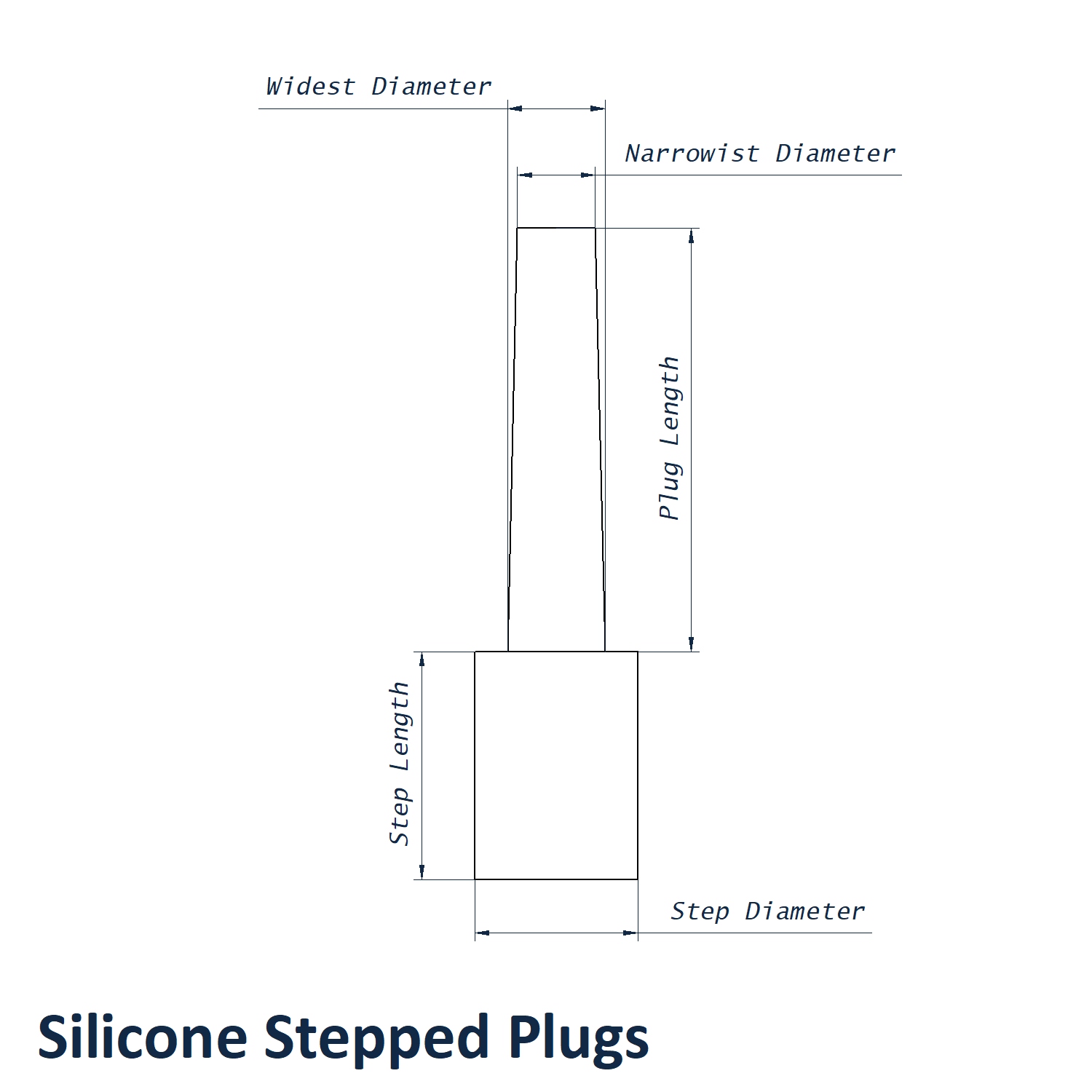

12.4mm x 17.3mm Silicone Step Plug Dimensions
- Material: Silicone
- Step Diameter: 12.4mm
- Widest Diameter: 8.5mm
- Narrowest Diameter: 5.9mm
- Step Length: 9.8mm
- Plug Length: 17.3mm
- Colour: White
High Temperature Masking Use
For larger stepped apertures, this silicone masking plug gives coating teams a reusable solution for covering holes through paint and powder processes. The stepped shape can suit threaded and non-threaded holes, while the silicone construction supports repeated use in finishing processes up to 315°C.
View our full Silicone Step Plugs range.
Product Support and Trade Orders
When a coating project needs reliable masking sizes across several parts, our team can assist with product selection and trade quantities. Call 01233 713581 for guidance on this silicone step plug range.
