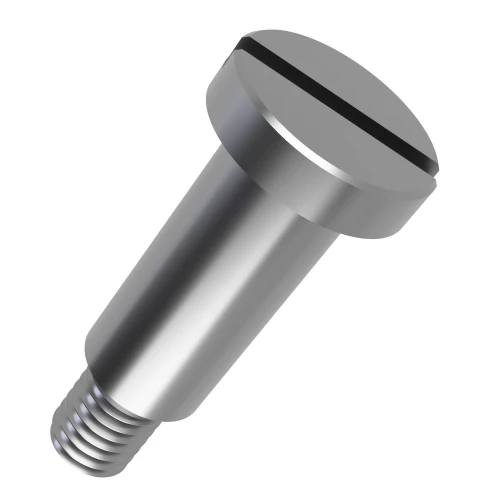

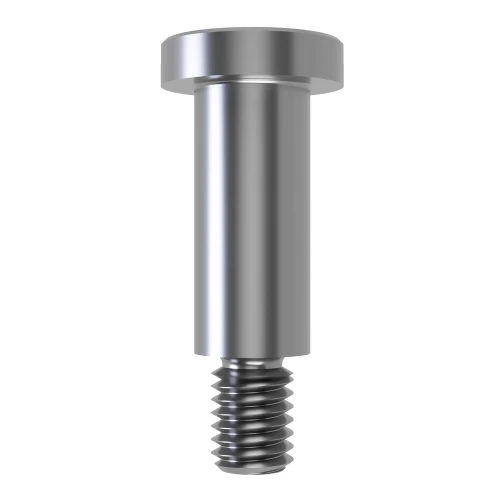

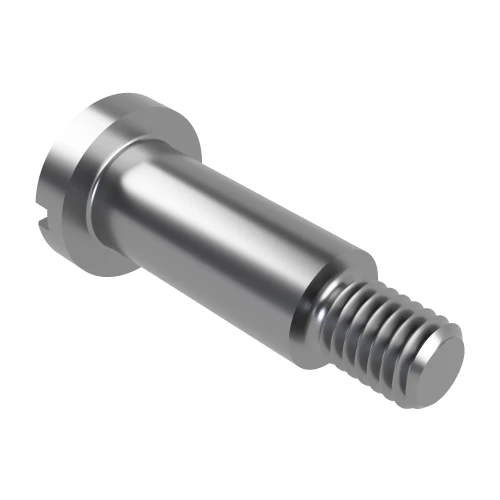

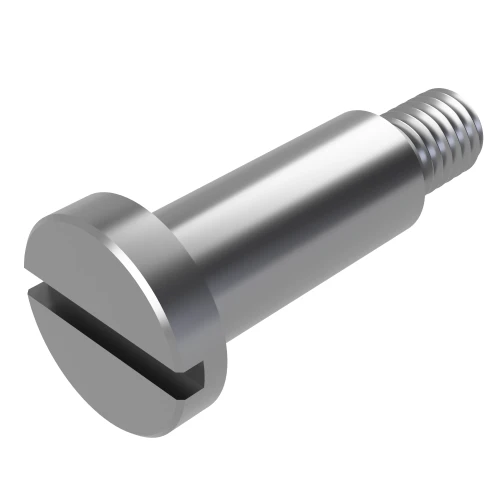

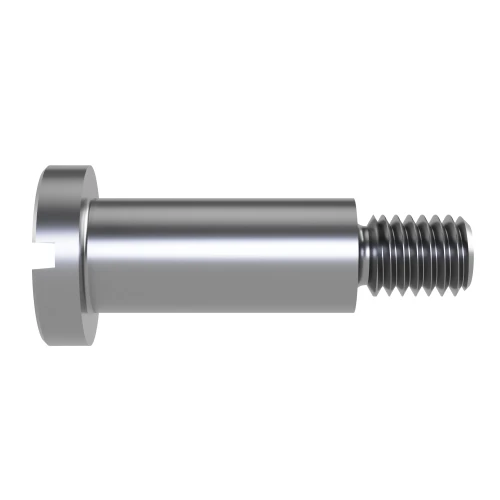

M6 (8.0mm) x 12.0mm Slotted Pan Head Shoulder Bolt (DIN 923) | A1 Stainless Steel

Product code: SHOU923-M6-12-A1
View All Specifications
M6 (8.0mm) x 12.0mm Slotted Pan Head Shoulder Bolt (DIN 923) | A1 Stainless Steel
M6 (8.0mm) x 12.0mm Slotted Pan Head Shoulder Bolt (DIN 923) | A1 Stainless Steel
M6 (8.0mm) x 12.0mm Slotted Pan Head Shoulder Bolt (DIN 923) | A1 Stainless Steel
M6 (8.0mm) x 12.0mm Slotted Pan Head Shoulder Bolt (DIN 923) | A1 Stainless Steel
M6 (8.0mm) x 12.0mm Slotted Pan Head Shoulder Bolt (DIN 923) | A1 Stainless Steel
M6 (8.0mm) x 12.0mm Slotted Pan Head Shoulder Bolt (DIN 923) | A1 Stainless Steel
Quantity
Unit Price
(ex. VAT)
Unit Price
(inc. VAT)
1 - 24 £0.77 £0.92
25 - 49 £0.66 £0.79
50 - 99 £0.55 £0.66
100 - 499 £0.44 £0.53
500 - 999 £0.39 £0.47
1000 + £0.37 £0.44

£0.92 / each


Up to 3,525 units
Available
Vital Parts Tick
Order now for dispatch within 5 days.
3,525 + units
Available for production
Average production time 14 + days.
Vital Parts - Here to make bulk ordering easy.

Product Specification
Thread Size M6
Thread Pitch 1.00mm
Shoulder Diameter 8.0mm
Shoulder Length 12.0mm
Thread Length 9.0mm
Head Diameter 13.0mm
Head Height 3.3mm
Drive Slotted
Material A1 Stainless Steel

Next Day or Standard Delivery available via DHL or Royal Mail.
Order by 4pm (UK) for same day dispatch, Monday to Thursday or 2pm Friday.

Larger Order?

Call our sales team on

01233 713581


Frequently Bought Together

Total Price: £0.00

M6 x 8mm Shoulder, 12mm Long Slotted Pan Head Shoulder Bolt (DIN 923) | A1 Stainless Steel

This DIN 923 M6 shoulder fastener uses a smooth 8.0mm diameter section over 12.0mm of its length. The A1 Stainless Steel construction and slotted pan head make it an option for locating moving or guided parts in light machinery and equipment assemblies. The 1.00mm pitch and 9mm threaded length are specified for this fixing.

What Are Slotted Pan Head Shoulder Bolts?

Also referred to as shoulder screws, DIN 923 fasteners use a smooth cylindrical section to position a connected item independently of the threaded engagement. For this version, the working shoulder is 8.0mm in diameter and 12.0mm long with a M6 thread. For replacement work, match both shoulder measurements as well as the machine thread.

Common Applications

  • Control mechanisms: Locating levers or small linkages on the unthreaded section.
  • Machinery brackets: Attaching components with a separate thread and smooth bearing section.
  • Alignment fixtures: Positioning parts against a specified shoulder diameter in a purpose-made assembly.
  • Repair work: Replacing a stepped shoulder fixing with matching thread and head geometry.

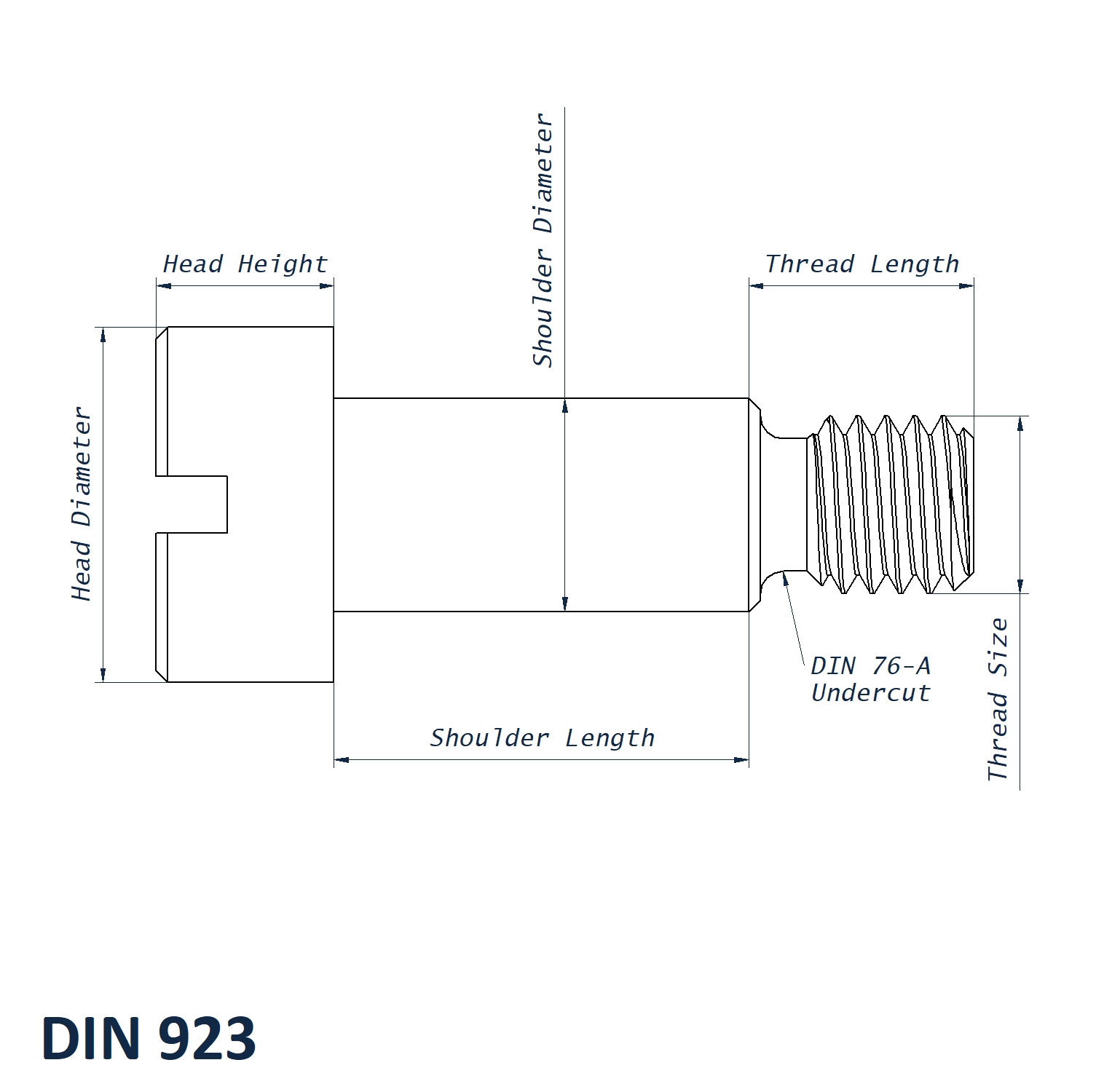

M6 x 8mm Shoulder, 12mm Slotted Shoulder Bolt Dimensions

  • Thread Size: M6
  • Thread Pitch: 1.00mm
  • Shoulder Diameter: 8.0mm
  • Shoulder Length: 12.0mm
  • Thread Length: 9.0mm
  • Head Diameter: 13.0mm
  • Head Height: 3.3mm
  • Drive: Slotted
  • Material: A1 Stainless Steel

Key Benefits

  • Plain cylindrical section is suited to locating matching pivot or guide components.
  • Slotted drive allows assembly and removal with a flat-blade tool.
  • The M6 threaded section can secure the shoulder bolt independently of the locating section.
  • Specified 8.0mm by 12.0mm shoulder dimensions support accurate component selection.

Compare more DIN 923 stepped shoulder bolts for different thread sizes and shoulder lengths. If you need help selecting the correct fixing, call us on 01233 713581.
