22.2mm Snub Bushing - 25.8mm Head (15.9mm Cable) | Nylon
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 249 | £0.30 | £0.36 |
| 250 - 499 | £0.26 | £0.31 |
| 500 - 999 | £0.23 | £0.27 |
| 1000 - 4999 | £0.20 | £0.24 |
| 5000 - 9999 | £0.17 | £0.21 |
| 10000 + | £0.15 | £0.18 |
£0.36 / each
.png)
Product Specification
| Head Diameter | 25.8mm |
| Colour | Black |
| Approx. Cable Diameter | 15.9mm |
| Mounting Hole Diameter | 22.2mm |
| Overall Height | 12.3mm |
| Style | Snub (Cable Grip) |
| Thickness | 3.2mm |
Frequently Bought Together
M20 Waterproof Strain Relief Grommet IP67 (For 20.5-20.7mm Hole) - 6-13mm Cable | Black
Total Price: £0.00
22.2mm Black Snub Cable Bushing | 15.9mm Cable Diameter | Nylon
Providing a wider cable pass-through for 22.2mm holes, this black cable strain relief bushing suits approximate 15.9mm cable sizes in electrical, machinery and enclosure assemblies. Its snub-style body grips around the cable and snaps into the panel without adhesives or extra fixings.
The larger body size provides secure panel retention while keeping the cable path protected from abrasion. For cable assemblies that need a snap-in part with light strain relief, this bushing offers a simple and serviceable solution.
What Are Snub Cable Bushings?
This style of bushing acts as a snap-in cable protector with a light clamping action. It is particularly useful when the cable needs to remain centred in the panel hole without adding a separate gland or screw fixing.
Common Applications
- Larger cable routes through enclosure panels
- Machinery cable management
- Assembly line cable protection
- Cable support where glands are not required

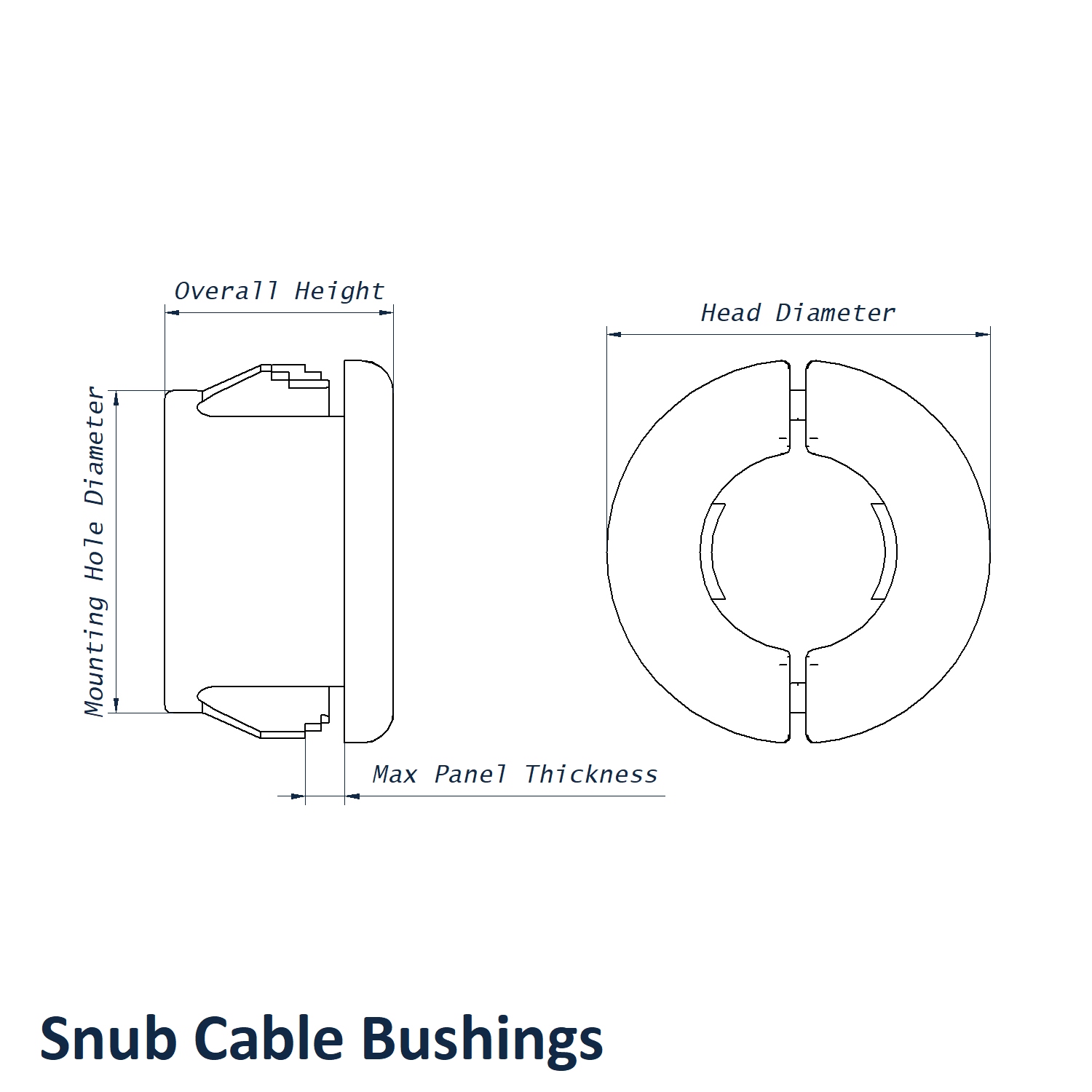

22.2mm Black Snub Cable Bushing Dimensions
- Mounting Hole Diameter: 22.2mm
- Approx. Cable Diameter: 15.9mm
- Head Diameter: 25.8mm
- Overall Height: 12.3mm
- Thickness: 3.2mm
- Material: Nylon
- Colour: Black
Cable Protection and Strain Relief
This 22.2mm strain relief bush is designed for panel-mounted cable protection where the cable needs to be enclosed and held more securely than with a plain pass-through bush. The snap-in construction reduces fitting time while the split body helps keep the cable aligned through the opening.
These bushes are designed for cable insulation and strain relief duties, with the range page listing UL and CSA component recognition for the product family. Always check the specific dimensions against your panel hole and cable diameter before ordering.
View our full Snub Cable Bushings range.
Product Support and Trade Orders
For help checking mounting hole size, cable diameter or suitability for repeated panel assembly, speak with the Vital Parts team on 01233 713581. We can help with product guidance, samples where available and support for repeat trade requirements.
