Snub Cable Bushings

Our range of Snub Bushings or 'Snub Cable Bushings' are manufactured from a UL94V-2 rated Nylon 6/6 which is capable of resisting temperatures between -18°C and 105°C. Featuring multiple locking steps to cover a defined panel thickness range, these Snub Bushings snap directly into your panel hole without the need of fixings or adhesives.

As a unique product, these bushes offer a blend of typical 'Snap Fit Bush' features alongside elements of strain relief as the split body is designed to enclose around the cable and hold it firmly in position once closed.

We stock these Snub Cable Bushings in a number of to fit hole diameter sizes, from 9.5mm up to 22.2mm for panel thicknesses up to 3.2mm. If you require a custom part or size not displayed in the table below please get in touch with a member of our team who are happy to help.

Key Product Features:

• Manufactured from a UL94V-2 rated Nylon 6/6
• Snaps together to provide light strain relief
• Insulates and protects a cable
• Locking finger design

Commonly Used For:

• To protect and insulate a cable when passing through a hole
• To enclose a cable and hold it in position

Product Certifications:

• Recognised under the Component Program of Underwriters' Laboratories File E15331
• Certified by the Canadian Standards Association File 8919

Need help with these Strain Relief Snub Bushes? Give us a call on 01233 713 581

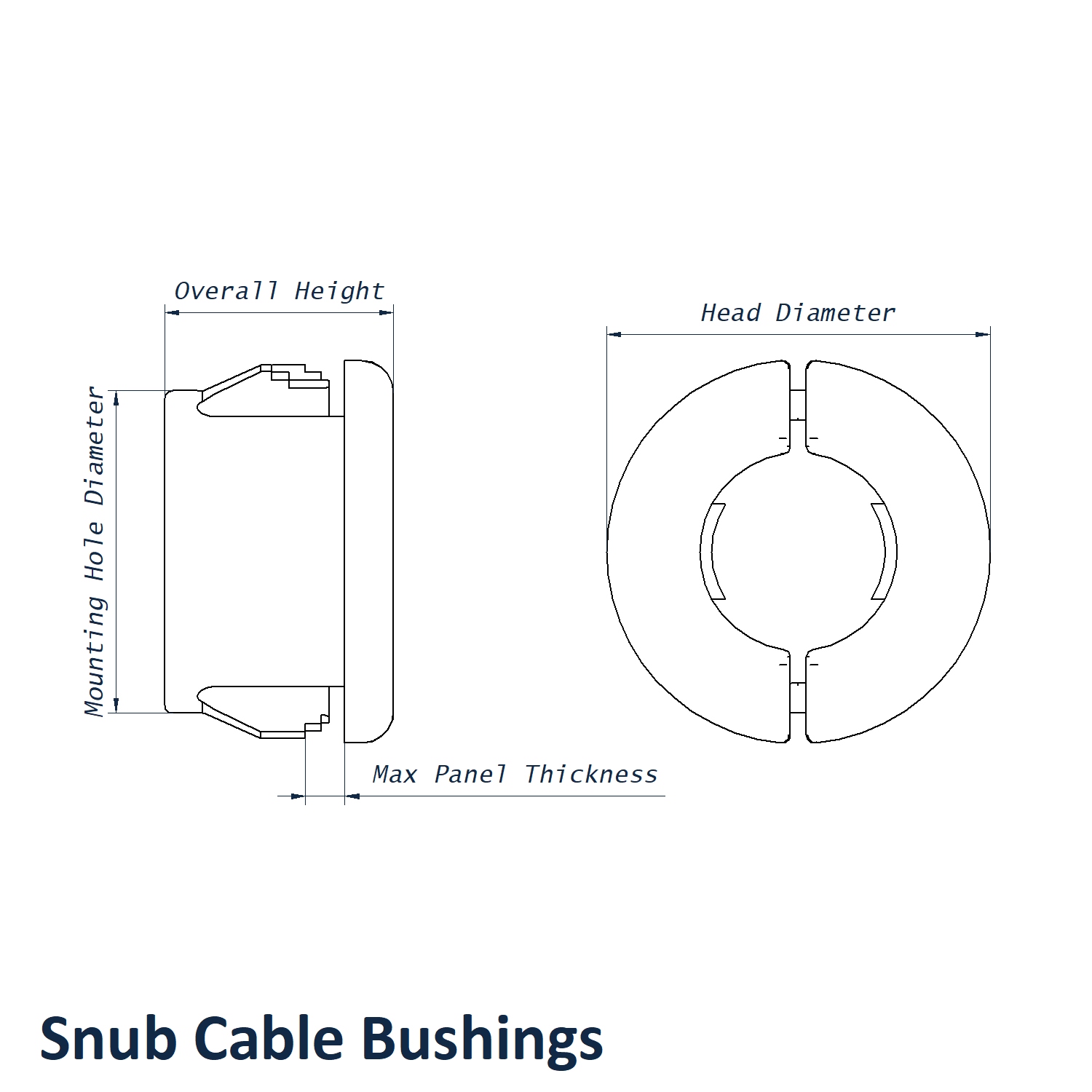

A = Mounting Hole Diameter
B = Approximate Cable Diameter
C = Head Diameter
D = Overall Height
E = Thickness
