12.7mm Smooth Bore Bushing (Snap Fit) - 6.4mm Internal Diameter | Nylon
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 249 | £0.19 | £0.23 |
| 250 - 499 | £0.17 | £0.20 |
| 500 - 999 | £0.15 | £0.18 |
| 1000 - 4999 | £0.13 | £0.16 |
| 5000 - 9999 | £0.12 | £0.14 |
| 10000 + | £0.10 | £0.12 |
£0.23 / each
.png)
Product Specification
| To Fit Hole Diameter | 12.7mm |
| Max Panel Thickness | 1.6mm |
| Head Diameter | 14.2mm |
| Length | 6.9mm |
| Material | Nylon |
| Colour | Black |
| Internal Diameter | 6.4mm |
| Style | Smooth |
Frequently Bought Together
Total Price: £0.00
12.7mm Smooth Bore Bushing | 6.4mm Internal Diameter | Black Nylon
Designed for smaller panel apertures, this black smooth bore bushing fits a 12.7mm hole and provides a 6.4mm smooth bore for cable, loom or shaft clearance.
The black Nylon construction gives a durable non-metallic edge between the cable and panel, while the snap-fit fingers help keep the bush seated during wiring, inspection and servicing.
What Are Smooth Bore Bushings?
Smooth bore bushings are snap-fit panel bushes used to line a drilled or punched hole so cables, wiring, tubing or suitable rotating shafts can pass through more safely. The smooth internal bore reduces direct contact with exposed panel edges, while the locking fingers hold the bush in place after installation.
Common Applications
- Control panel cable entry points
- Small wiring looms passing through metal panels
- Instrumentation boxes and test equipment
- Light-duty shaft clearance through sheet sections

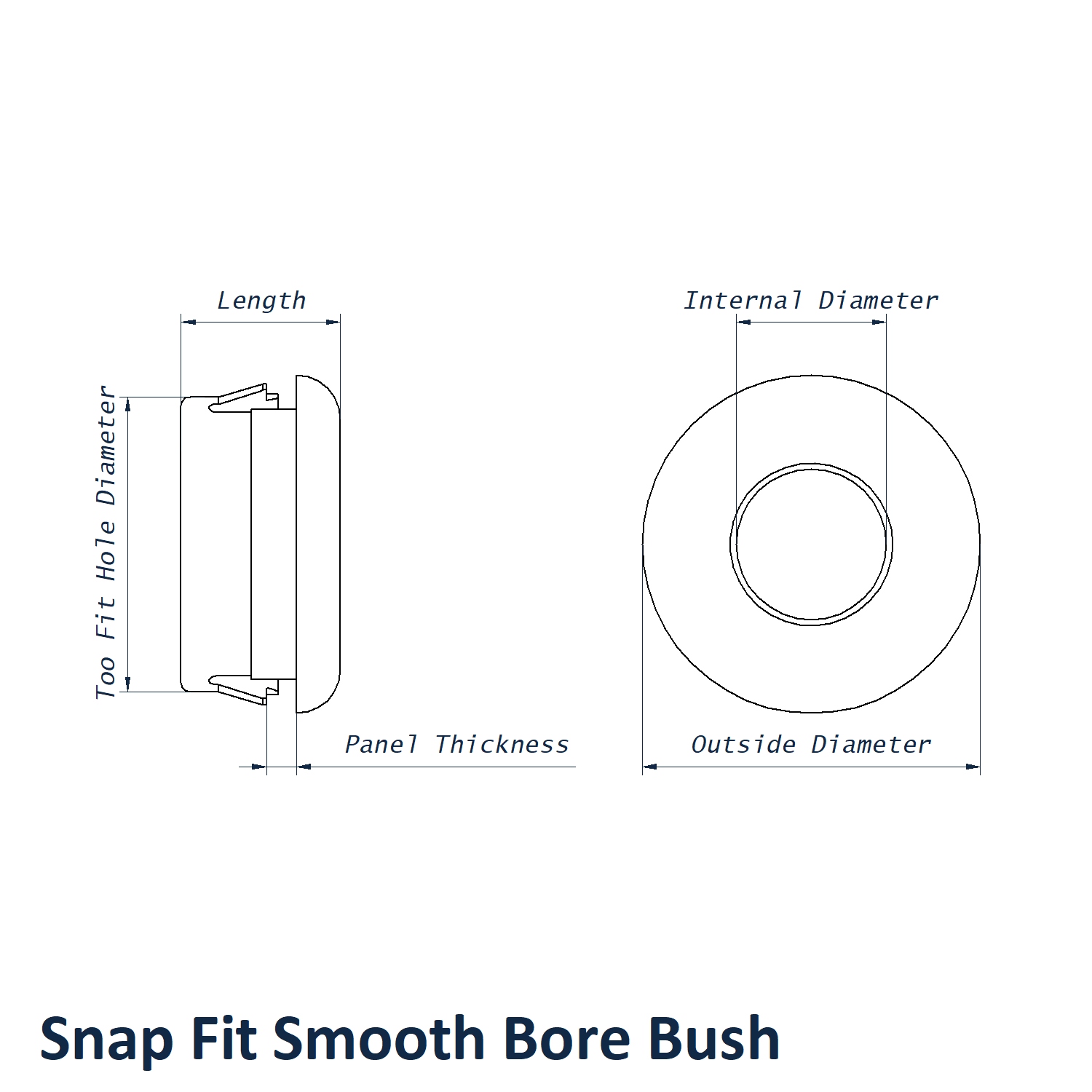

12.7mm x 6.4mm Smooth Bore Bushing Dimensions
- To Fit Hole Diameter: 12.7mm
- Max Panel Thickness: 1.6mm
- Internal Diameter: 6.4mm
- Head Diameter: 14.2mm
- Length: 6.9mm
- Material: Nylon
- Colour: Black
Smooth Bore Cable Protection
This size is well suited to compact panel hole protection, especially where control cabinets require a simple way to finish the hole edge and protect lightweight cable pass-throughs.
These smooth bore cable bushings are manufactured from UL94V-2 rated Nylon 6/6 and are designed for snap-in panel installation. They are commonly chosen for cable insulation, abrasion reduction, anti-vibration support and applications where a smooth central bore is preferred over a split or toothed bush.
View our full Smooth Bore Bushings range.
Product Support and Trade Orders
For help checking hole size, cable clearance, panel thickness or bulk order suitability, speak with the Vital Parts team on 01233 713581. We can support sizing checks, samples where available and repeat trade requirements for production or maintenance use.
