22.3mm Smooth Bore Bushing (Snap Fit) - 13.2mm Internal Diameter | Nylon
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 249 | £0.28 | £0.34 |
| 250 - 499 | £0.24 | £0.29 |
| 500 - 999 | £0.22 | £0.26 |
| 1000 - 4999 | £0.19 | £0.23 |
| 5000 - 9999 | £0.17 | £0.20 |
| 10000 + | £0.14 | £0.17 |
£0.34 / each
.png)
Product Specification
| To Fit Hole Diameter | 22.3mm |
| Max Panel Thickness | 1.6mm |
| Head Diameter | 24.9mm |
| Length | 8.1mm |
| Material | Nylon |
| Colour | Black |
| Internal Diameter | 13.2mm |
| Style | Smooth |
Frequently Bought Together
Total Price: £0.00
22.3mm Smooth Bore Bushing | 13.2mm Internal Diameter | Black Nylon
Manufactured for quick snap-in installation, this snap fit smooth bore bush is sized for a 22.3mm mounting hole with a 13.2mm internal diameter.
A smooth central bore helps reduce rubbing against raw metal edges, making the part useful where wiring needs insulation as well as a neater finish around the hole.
What Are Smooth Bore Bushings?
Smooth bore bushings are snap-fit panel bushes used to line a drilled or punched hole so cables, wiring, tubing or suitable rotating shafts can pass through more safely. The smooth internal bore reduces direct contact with exposed panel edges, while the locking fingers hold the bush in place after installation.
Common Applications
- Electrical enclosure cable protection
- Cabinet wiring and loom routing
- Panel builders requiring snap-in bushes
- OEM equipment with larger hole cut-outs

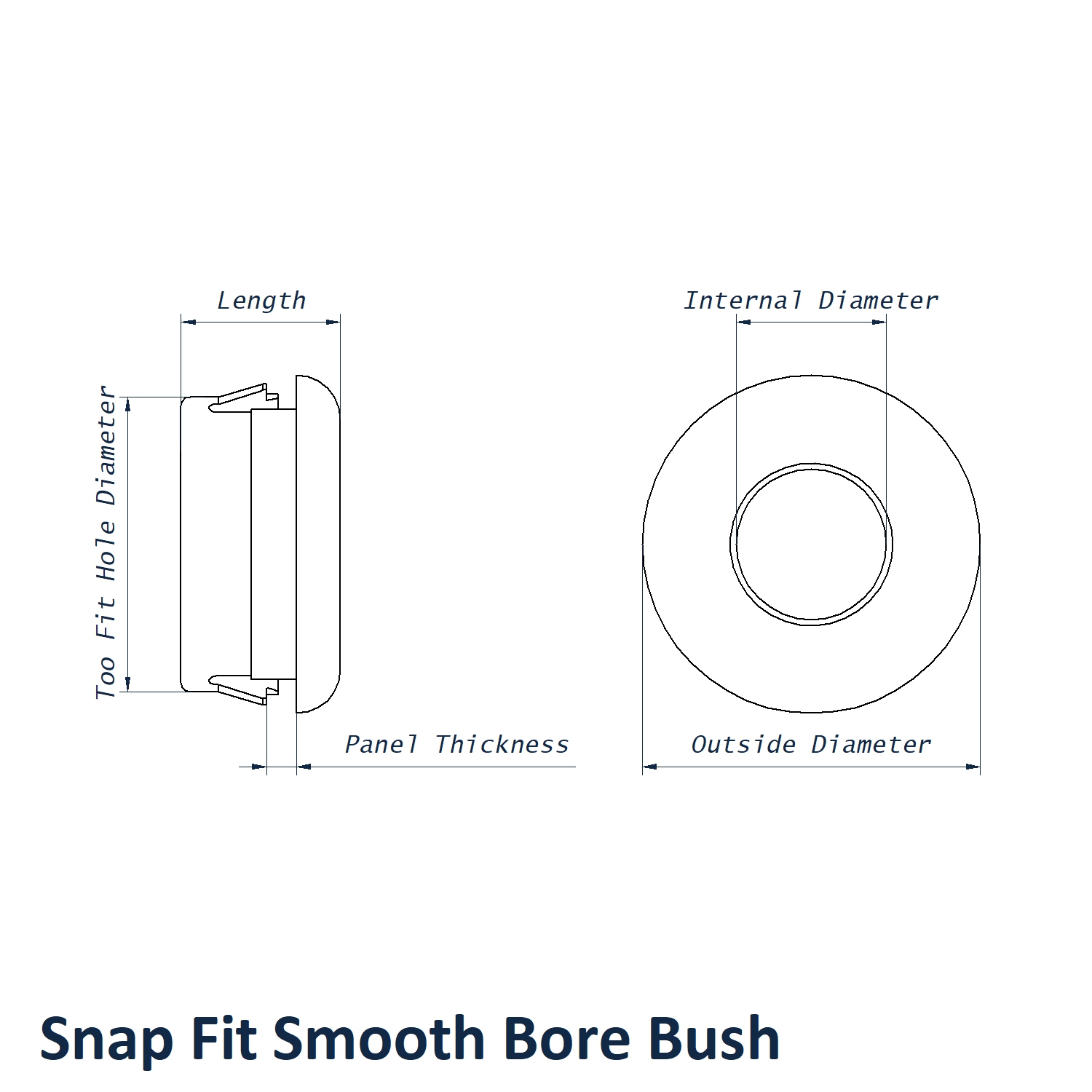

22.3mm x 13.2mm Smooth Bore Bushing Dimensions
- To Fit Hole Diameter: 22.3mm
- Max Panel Thickness: 1.6mm
- Internal Diameter: 13.2mm
- Head Diameter: 24.9mm
- Length: 8.1mm
- Material: Nylon
- Colour: Black
Smooth Bore Cable Protection
With a 1.6mm maximum panel thickness and 24.9mm head diameter, this version provides a neat exposed finish while keeping the cable path clear inside the panel.
These smooth bore cable bushings are manufactured from UL94V-2 rated Nylon 6/6 and are designed for snap-in panel installation. They are commonly chosen for cable insulation, abrasion reduction, anti-vibration support and applications where a smooth central bore is preferred over a split or toothed bush.
View our full Smooth Bore Bushings range.
Product Support and Trade Orders
For help checking hole size, cable clearance, panel thickness or bulk order suitability, speak with the Vital Parts team on 01233 713581. We can support sizing checks, samples where available and repeat trade requirements for production or maintenance use.
