| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 49 | £0.33 | £0.39 |
| 50 - 99 | £0.26 | £0.31 |
| 100 - 249 | £0.21 | £0.25 |
| 250 - 499 | £0.17 | £0.20 |
| 500 - 999 | £0.13 | £0.16 |
| 1000 + | £0.11 | £0.13 |
£0.39
/ each
Quantity:
Product Specification
| Hole Diameter | 3.1-3.2mm |
| Panel Thickness | 7.5-8.5mm |
| Material | Nylon |
| Head Diameter | 6.4mm |
| Colour | Black |
| Head Height | 1.6mm |
| Shank Length | 10.0mm |
| Shank Diameter | 3.0mm |
Next Day or Standard Delivery available via DHL or Royal Mail.
Order by 4pm (UK) for same day dispatch, Monday to Thursday or 2pm Friday.
Frequently Bought Together
+
+
- Material Nylon
- Colour Black
- Hole Diameter 4.80mm
- Head Diameter 11.0mm
- Length 17.30mm
- Max Panel Thickness 13.0mm
- Head Height 1.7mm
- Min Panel Thickness 0.7mm
- Material PVC
- Length 32.5mm
- Panel Thickness 3mm
- Mounting Hole Diameter 12.7mm
- Cable Diameter Range 5-9mm
- Material Anti Static Polyimide
- Colour Amber
- Roll Width 18.0mm
- Adhesive Silicone
- Roll Length 33m
- Thickness 60 Microns
Total Price: £0.00

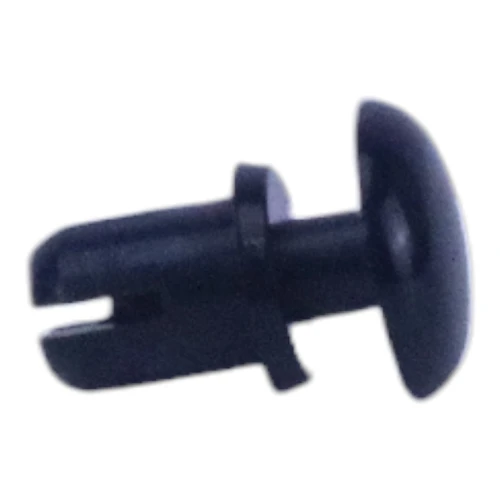

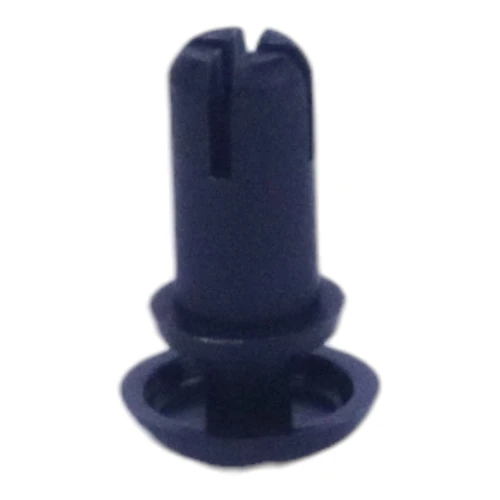

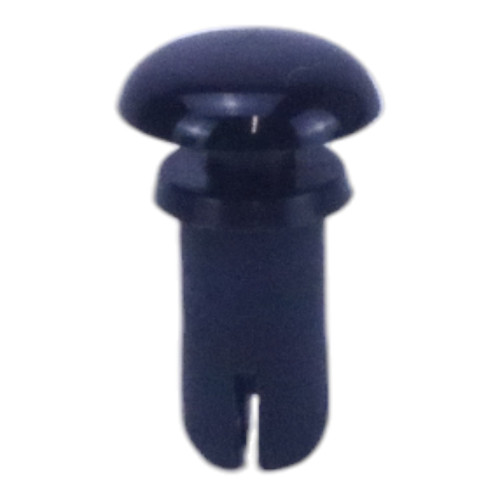

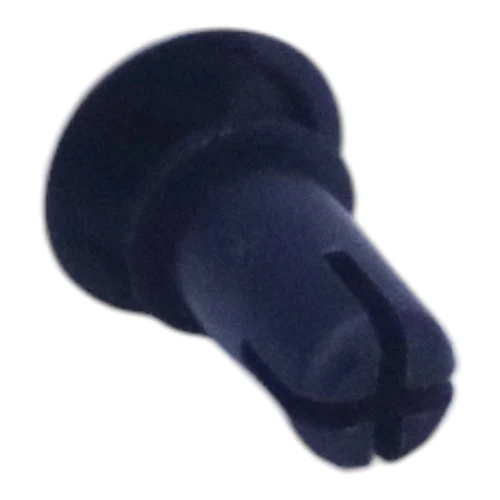

3.0mm x 10.mm Plastic Snap Rivet - Black
Designed for standard panel fastening points used across automotive, electrical and display assemblies, these 3.0mm x 10.mm Plastic Snap Rivet - Blacks snap into place through 3.1-3.2mm holes to hold covers, trims and lightweight panels securely.
Manufactured from Black Nylon, these 3mm snap rivets blend into darker panels, automotive trim and black equipment housings. With a 1.6mm head height, the installed rivet maintains a low-profile finish on panels and covers.
Common Applications
- Panel and enclosure assembly
- Automotive trim and interior fixing
- Plastic housings, covers and guards
- Darker automotive trim and black panel assemblies

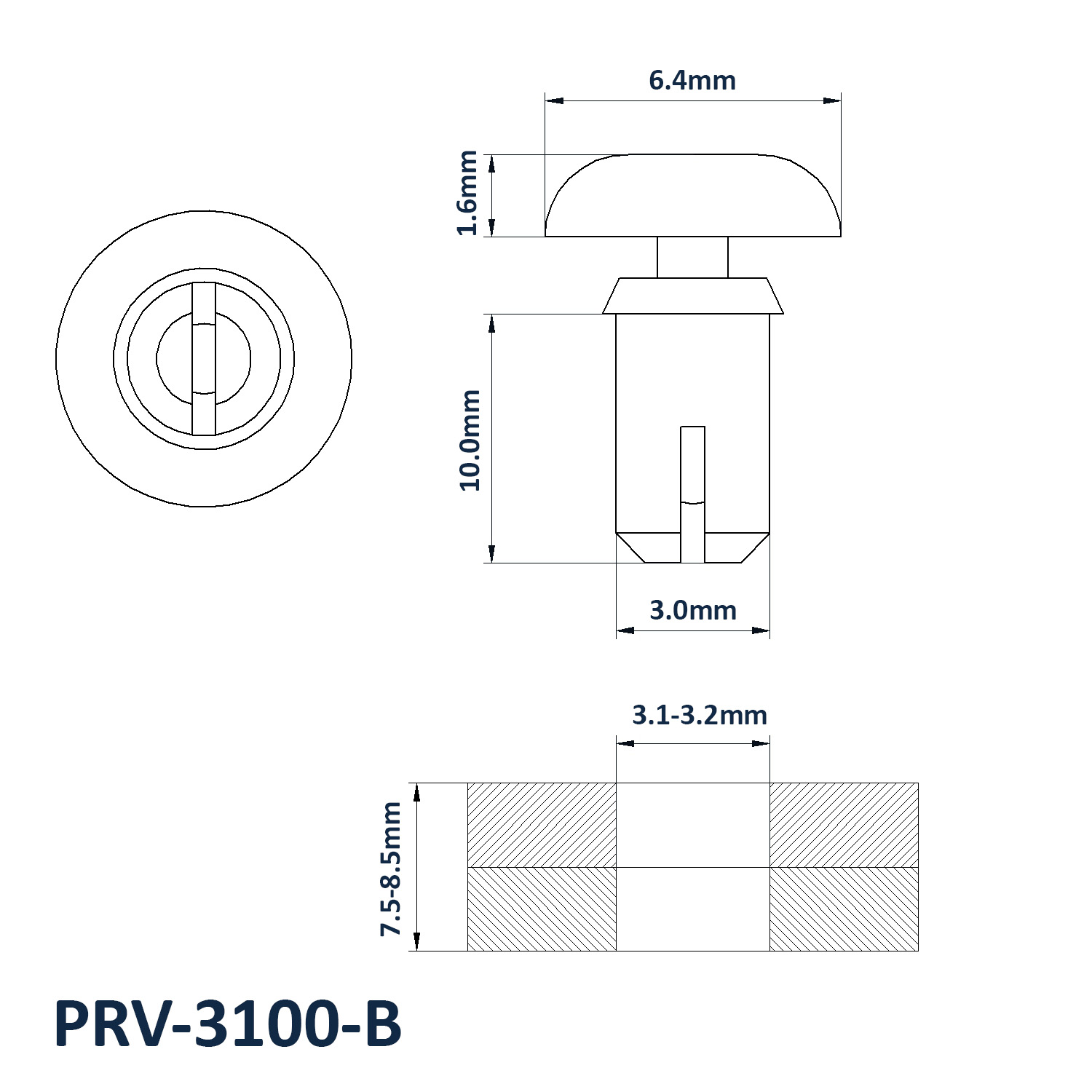

3mm x 10mm Snap Rivet Dimensions
- Hole Diameter: 3.1-3.2mm
- Panel Thickness: 7.5-8.5mm
- Head Diameter: 6.4mm
- Head Height: 1.6mm
- Shank Length: 10mm
- Shank Diameter: 3mm
- Material: Nylon
- Colour: Black
View our full Snap Rivet range or browse our Panel Fastener collection.
Need help or buying in bulk?
For technical support, sizing guidance or volume pricing enquiries call 01233 713581.
| Code | Material | Colour | Hole Diameter | Head Diameter | Shank Diameter | Panel Thickness | Head Height | Shank Length | Stock | |
|---|---|---|---|---|---|---|---|---|---|---|
| PRV-2024-B | Nylon | Black | 2.1-2.2mm | 4.2mm | 2.0mm | 0.6-1.2mm | 1.2mm | 2.4mm |
Checking...
|
|
| PRV-2024-W | Nylon | White | 2.1-2.2mm | 4.2mm | 2.0mm | 0.6-1.2mm | 1.2mm | 2.4mm |
Checking...
|
|
| PRV-2032-B | Nylon | Black | 2.1-2.2mm | 4.2mm | 2.0mm | 1.3-2.0mm | 1.2mm | 3.2mm |
Checking...
|
|
| PRV-2032-W | Nylon | White | 2.1-2.2mm | 4.2mm | 2.0mm | 1.3-2.0mm | 1.2mm | 3.2mm |
Checking...
|
|
| PRV-2040-B | Nylon | Black | 2.1-2.2mm | 4.2mm | 2.0mm | 2.1-2.8mm | 1.2mm | 4.0mm |
Checking...
|
|
| PRV-2040-W | Nylon | White | 2.1-2.2mm | 4.2mm | 2.0mm | 2.1-2.8mm | 1.2mm | 4.0mm |
Checking...
|
|
| PRV-2048-B | Nylon | Black | 2.1-2.2mm | 4.2mm | 2.0mm | 2.9-3.6mm | 1.2mm | 4.8mm |
Checking...
|
|
| PRV-2048-W | Nylon | White | 2.1-2.2mm | 4.2mm | 2.0mm | 2.9-3.6mm | 1.2mm | 4.8mm |
Checking...
|
|
| PRV-2056-B | Nylon | Black | 2.1-2.2mm | 4.2mm | 2.0mm | 3.7-4.4mm | 1.2mm | 5.6mm |
Checking...
|
|
| PRV-2056-W | Nylon | White | 2.1-2.2mm | 4.2mm | 2.0mm | 3.7-4.4mm | 1.2mm | 5.6mm |
Checking...
|
|
| PRV-2064-B | Nylon | Black | 2.1-2.2mm | 4.2mm | 2.0mm | 4.4-5.0mm | 1.2mm | 6.4mm |
Checking...
|
|
