M2 x 14mm Hex Socket Cap Screw (DIN 912) | Marine Grade A4 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 999 | £0.03 | £0.04 |
| 1000 - 4999 | £0.03 | £0.03 |
| 5000 + | £0.02 | £0.02 |
Product Specification
| Thread Size | M2 |
| Length | 14mm |
| Threaded Length | Fully Threaded |
| Pitch | 0.40mm |
| Head Diameter | 3.8mm |
| Head Height | 2.0mm |
| Drive | H1.5 |
| Head Style | Cap Head |
| Material | A4 Stainless Steel |
Frequently Bought Together
Total Price: £0.00
M2 x 14mm Hex Socket Cap Screw (DIN 912) | Marine Grade A4 Stainless Steel
Designed for construction plant, this M2 x 14mm stainless cap screw combines a H1.5 hex socket with a 3.8mm cap head for controlled tightening into threaded components.
The marine grade A4 stainless steel construction supports secure fastening in threaded components, while the M2 thread and 14mm length make it suitable for holding bearing housings. Marine grade A4 stainless steel provides added corrosion resistance for exposed equipment and outdoor assemblies. It can also be specified as a Allen key screw where Dimensions are required.
Common Applications
- Serviceable cover plates
- Industrial cabinet builds
- Maintenance replacement fixings
- Equipment cover retention

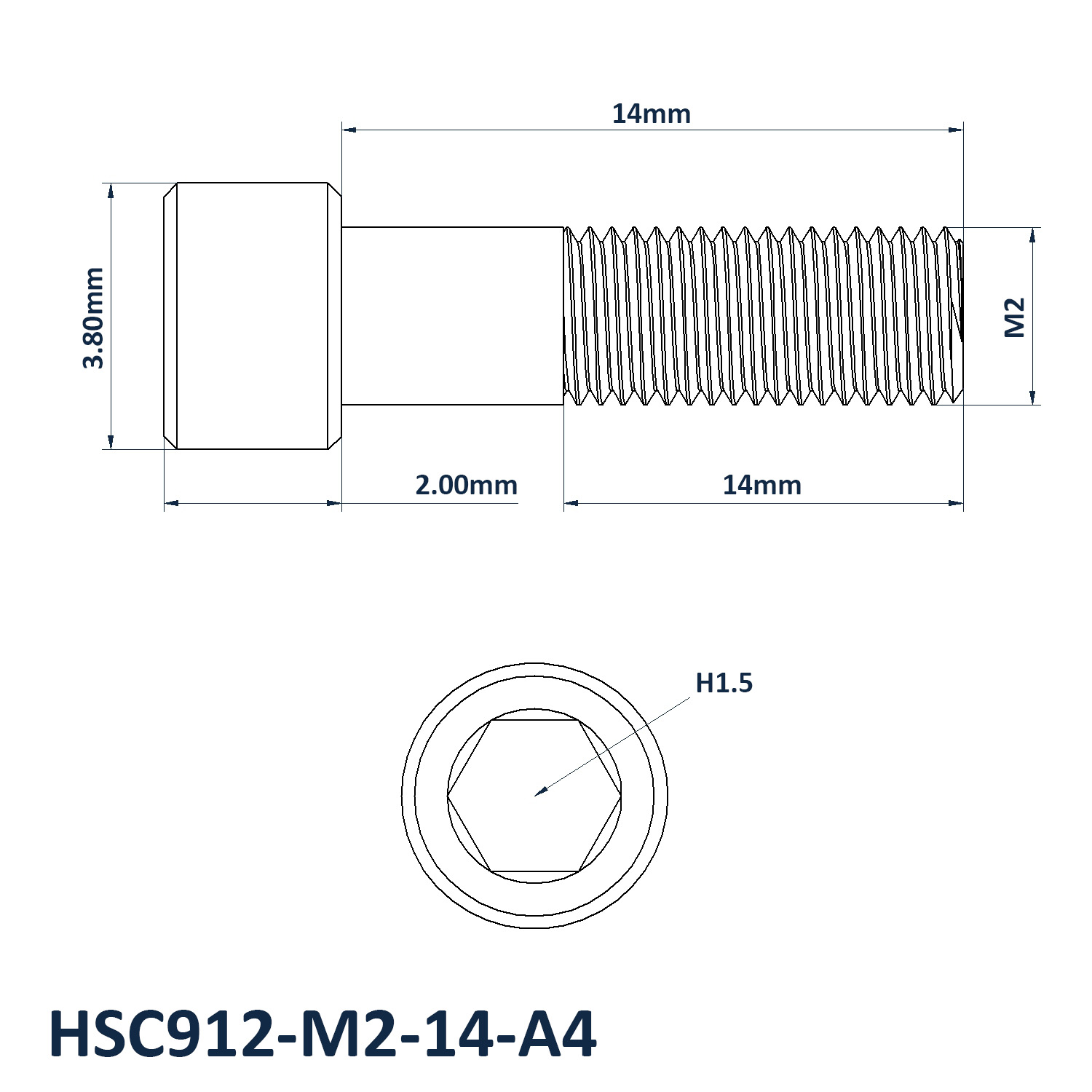

M2 x 14mm Socket Cap Screw Dimensions
- Thread Size: M2
- Length: 14mm
- Threaded Length: Fully Threaded
- Pitch: 0.40mm
- Head Diameter: 3.8mm
- Head Height: 2mm
- Drive: H1.5
- Material: A4 Stainless Steel
- Head Style: Cap Head
- Standard: DIN 912
Fastener Selection Note
Socket cap screws are commonly chosen for threaded assemblies where an Allen key drive offers cleaner access than an external hex head.
View our full Socket Cap Screws DIN 912 Range.
