M30 x 180mm Hex Socket Cap Screw (DIN 912) | Marine Grade A4 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 49 | £28.71 | £34.45 |
| 50 - 99 | £23.49 | £28.19 |
| 100 + | £21.53 | £25.84 |
Product Specification
| Thread Size | M30 |
| Length | 180mm |
| Threaded Length | 72mm |
| Pitch | 3.50mm |
| Head Diameter | 45.0mm |
| Head Height | 30.0mm |
| Drive | H22 |
| Head Style | Cap Head |
| Material | A4 Stainless Steel |
Frequently Bought Together
Total Price: £0.00
M30 x 180mm Hex Socket Cap Screw (DIN 912) | Marine Grade A4 Stainless Steel
Designed for commercial equipment, this M30 x 180mm flush counterbore screw combines a H22 hex socket with a 45mm cap head for controlled tightening into threaded components.
The marine grade A4 stainless steel construction supports repeatable assembly and disassembly, while the M30 thread and 180mm length make it suitable for securing metal housings. The A4 stainless specification makes this a useful choice for harsher environments compared with standard indoor fixings. It can also be specified as a hex socket fixing where Dimensions are required.
Common Applications
- Industrial frame construction
- Laboratory fixture builds
- Production line module assembly
- Production equipment builds

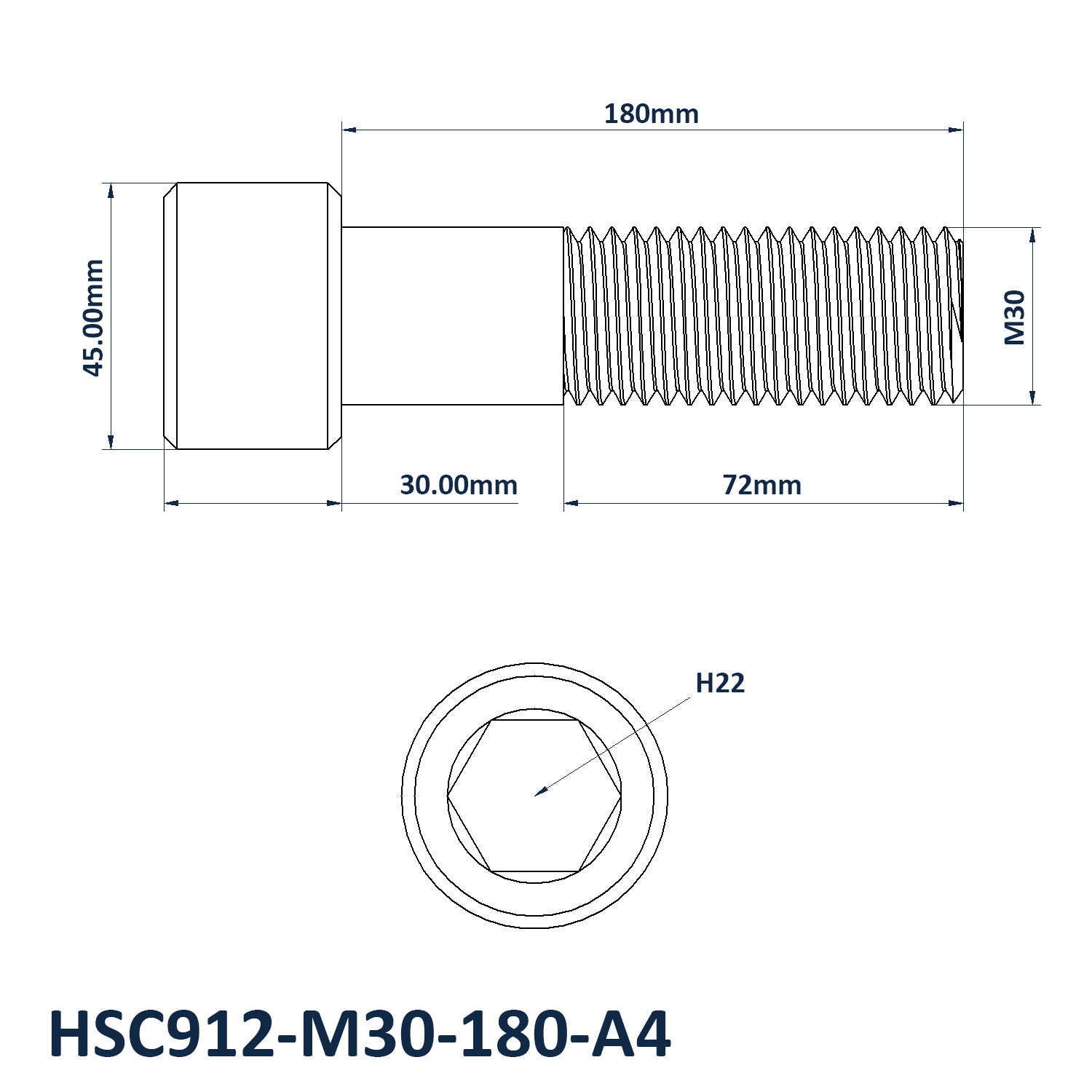

M30 x 180mm Socket Cap Screw Dimensions
- Thread Size: M30
- Length: 180mm
- Threaded Length: 72mm
- Pitch: 3.50mm
- Head Diameter: 45mm
- Head Height: 30mm
- Drive: H22
- Material: A4 Stainless Steel
- Head Style: Cap Head
- Standard: DIN 912
Fastener Selection Note
Socket cap screws are commonly chosen for threaded assemblies where an Allen key drive offers cleaner access than an external hex head.
View our full Socket Cap Screws DIN 912 Range.
