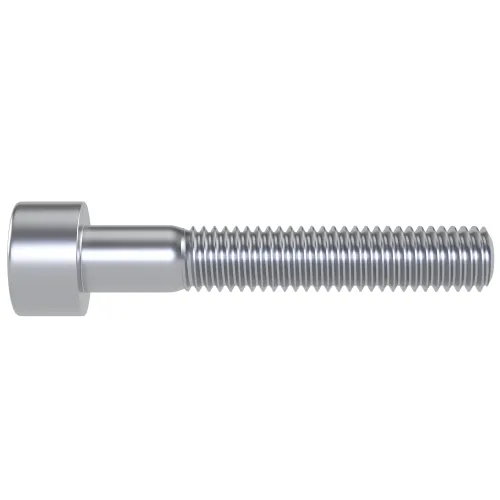

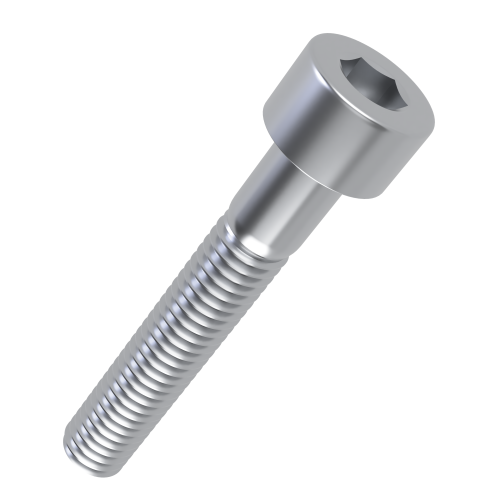

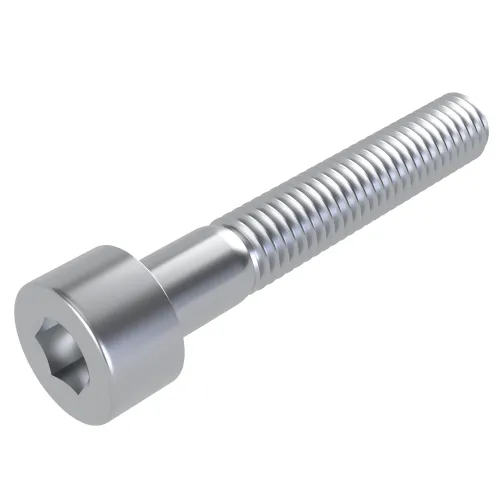

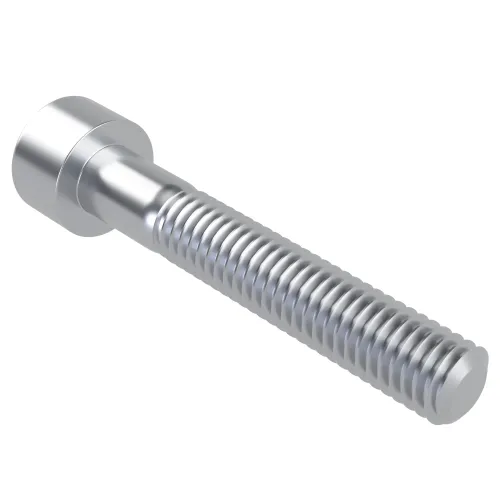

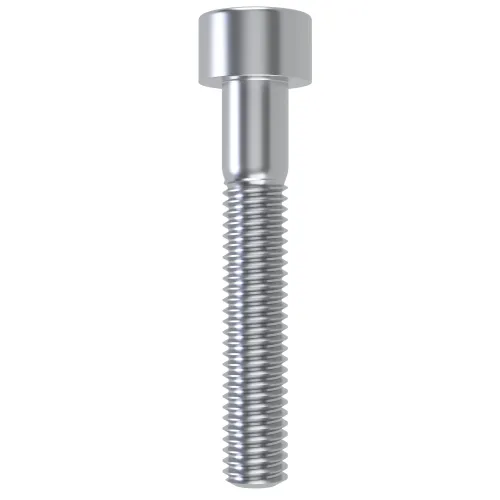

M6 x 22mm Hex Socket Cap Screw (DIN 912) | 8.8 Steel BZP
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £0.07 | £0.09 |
| 100 - 999 | £0.06 | £0.07 |
| 1000 - 4999 | £0.04 | £0.05 |
| 5000 + | £0.03 | £0.04 |
Product Specification
| Thread Size | M6 |
| Length | 22mm |
| Threaded Length | Fully Threaded |
| Pitch | 1.00mm |
| Head Diameter | 10.0mm |
| Head Height | 6.0mm |
| Drive | H5 |
| Head Style | Cap Head |
| Material | 8.8 Steel BZP |
Frequently Bought Together
Total Price: £0.00
M6 x 22mm Hex Socket Cap Screw (DIN 912) | 8.8 Steel BZP
Designed for tooling and fixtures, this M6 x 22mm flush counterbore screw combines a H5 hex socket with a 10mm cap head for controlled tightening into threaded components.
The zinc plated high tensile steel construction supports solid bearing area beneath the head, while the M6 thread and 22mm length make it suitable for mounting production line modules. Grade 8.8 BZP steel is suited to higher strength fastening in controlled indoor environments. It can also be specified as a hex socket fixing where Dimensions are required.
Common Applications
- Counterbored machine joints
- Control cabinet installation
- HVAC equipment panels
- Material handling equipment

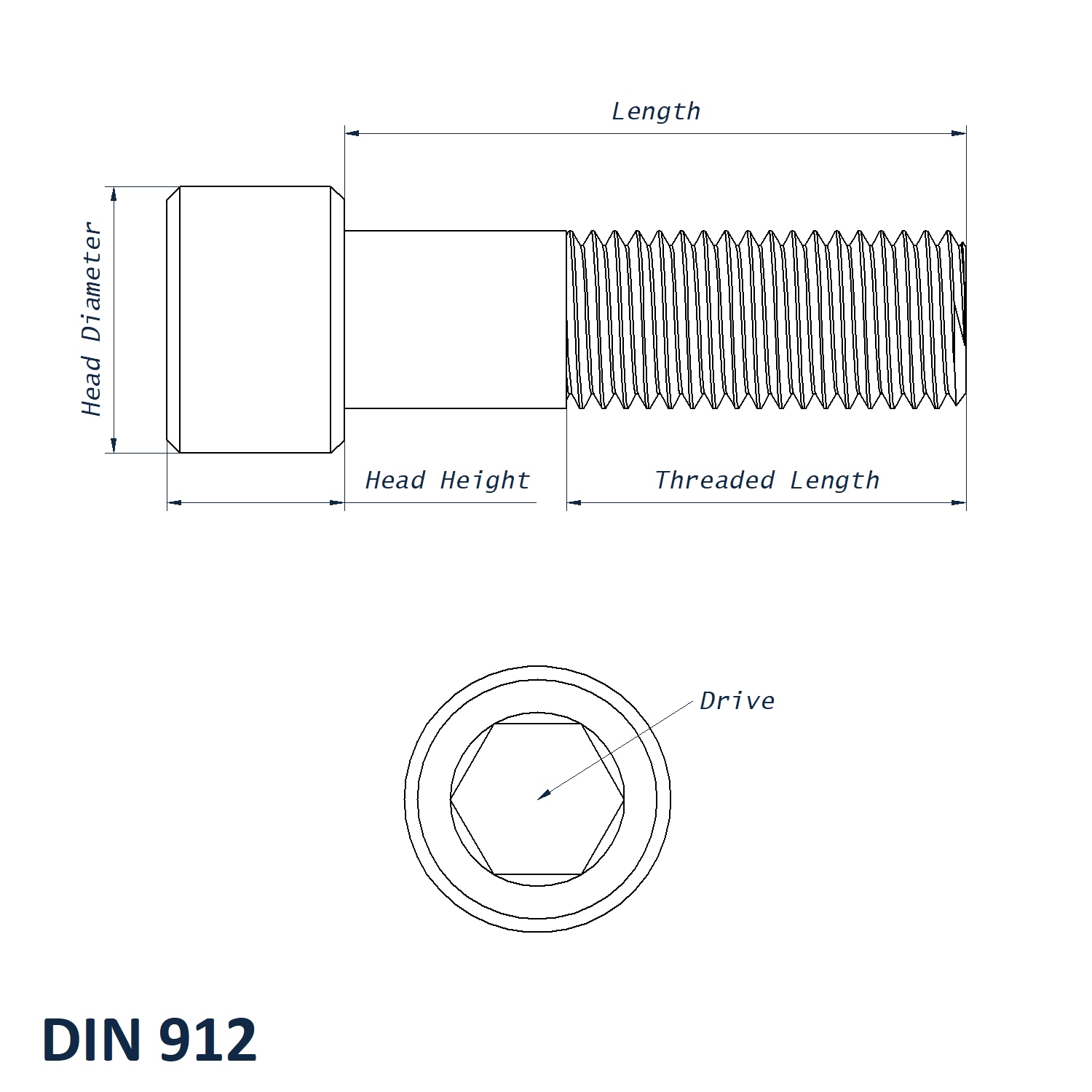

M6 x 22mm Socket Cap Screw Dimensions
- Thread Size: M6
- Length: 22mm
- Threaded Length: Fully Threaded
- Pitch: 1.00mm
- Head Diameter: 10mm
- Head Height: 6mm
- Drive: H5
- Head Style: Cap Head
- Material: 8.8 Steel BZP
- Standard: DIN 912
Fastener Selection Note
Socket cap screws are commonly chosen for threaded assemblies where an Allen key drive offers cleaner access than an external hex head.
View our full Socket Cap Screws DIN 912 Range.
