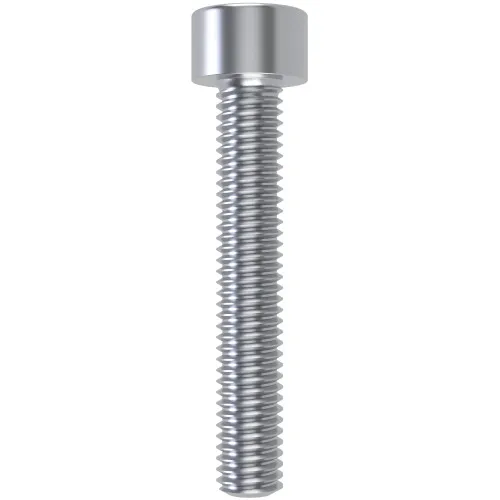

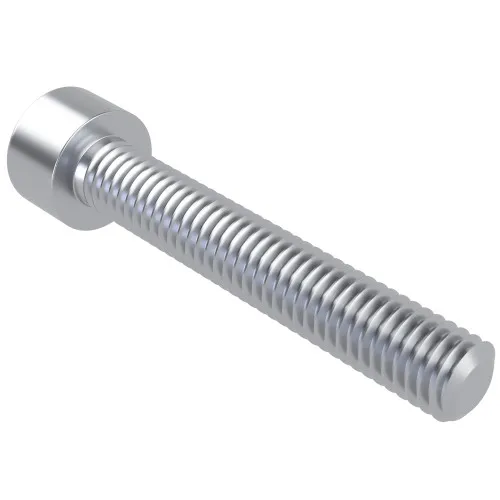

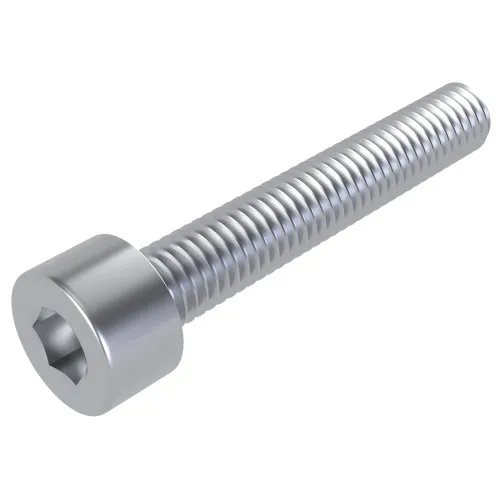

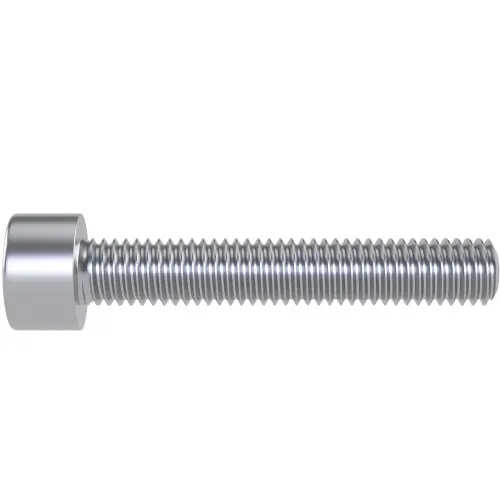

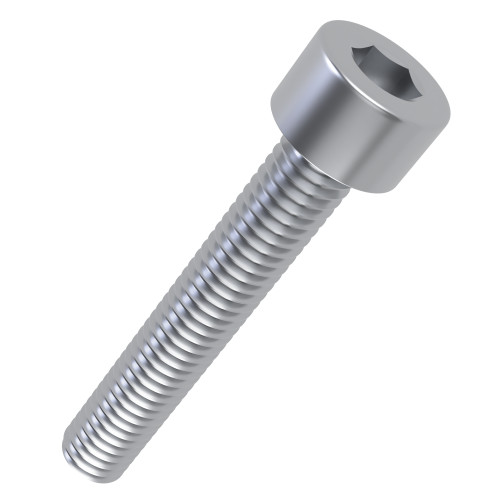

M20 x 45mm Hex Socket Cap Screw (DIN 912) | 8.8 Steel BZP
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £1.83 | £2.20 |
| 100 - 999 | £1.38 | £1.65 |
| 1000 - 4999 | £0.92 | £1.10 |
| 5000 + | £0.87 | £1.04 |
£2.20 / each
Product Specification
| Thread Size | M20 |
| Length | 45mm |
| Threaded Length | Fully Threaded |
| Pitch | 2.50mm |
| Head Diameter | 30.0mm |
| Head Height | 20.0mm |
| Drive | H17 |
| Head Style | Cap Head |
| Material | 8.8 Steel BZP |
Frequently Bought Together
Total Price: £0.00
M20 x 45mm Hex Socket Cap Screw (DIN 912) | 8.8 Steel BZP
Designed for rail and transport maintenance, this M20 x 45mm hex socket screw combines a H17 hex socket with a 30mm cap head for controlled tightening into threaded components.
The zinc plated high tensile steel construction supports reliable fit in precision assemblies, while the M20 thread and 45mm length make it suitable for mounting sensor brackets. The zinc plated finish supports everyday corrosion protection where the fixing is used away from harsh exposure. It can also be specified as a socket drive screw where Dimensions are required.
Common Applications
- Display equipment hardware
- Counterbored machine joints
- Fabricated steel assemblies
- Actuator and sensor brackets

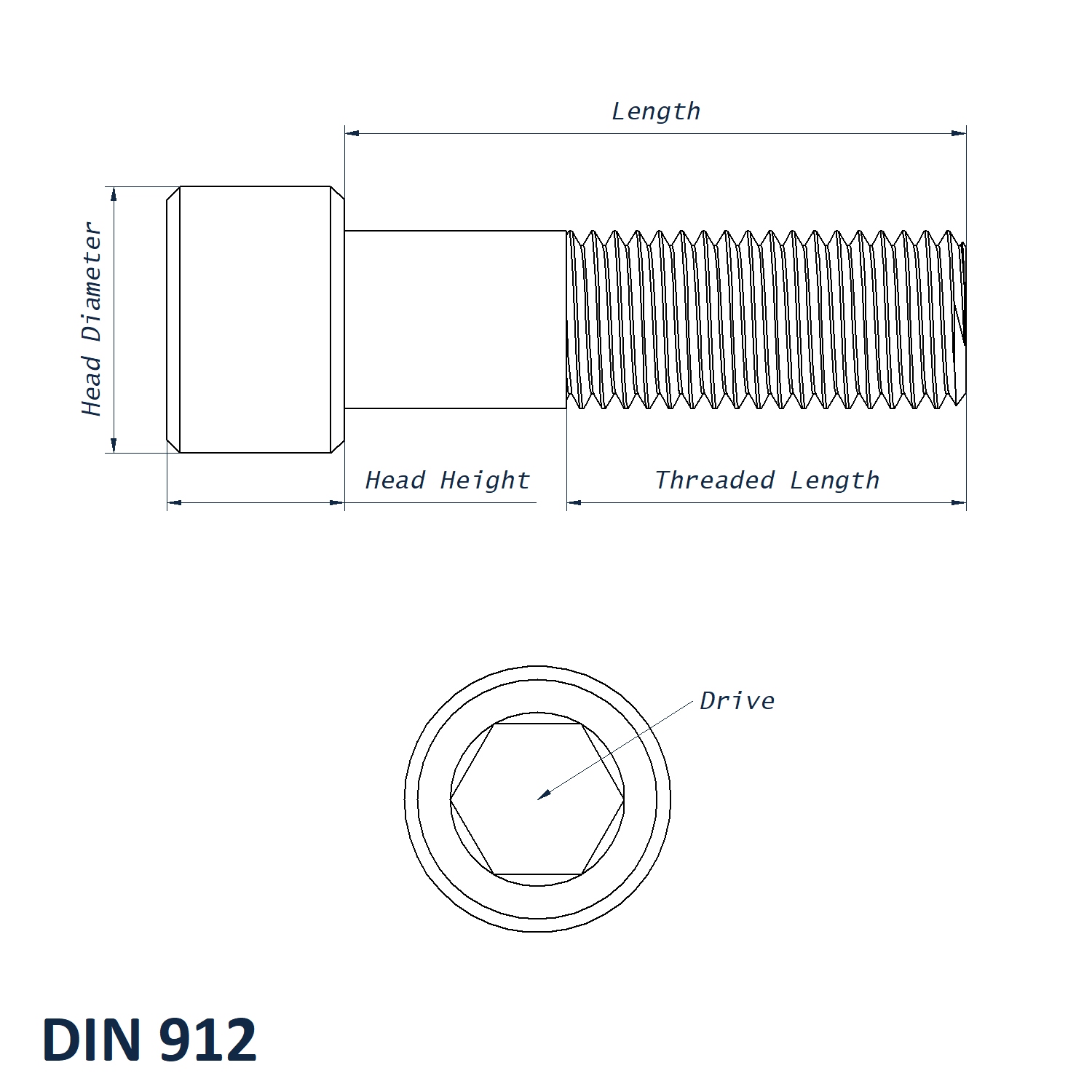

M20 x 45mm Socket Cap Screw Dimensions
- Thread Size: M20
- Length: 45mm
- Threaded Length: Fully Threaded
- Pitch: 2.50mm
- Head Diameter: 30mm
- Head Height: 20mm
- Drive: H17
- Head Style: Cap Head
- Material: 8.8 Steel BZP
- Standard: DIN 912
Fastener Selection Note
Socket cap screws are commonly chosen for threaded assemblies where an Allen key drive offers cleaner access than an external hex head.
View our full Socket Cap Screws DIN 912 Range.
