M8 (10mm) x 16mm Socket Shoulder Screw (ISO 7379) | A2 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 9 | £16.60 | £19.92 |
| 10 - 24 | £12.45 | £14.94 |
| 25 - 49 | £11.42 | £13.70 |
| 50 - 99 | £10.38 | £12.45 |
| 100 - 499 | £8.30 | £9.96 |
| 500 + | £7.27 | £8.72 |
Product Specification
| Shoulder Diameter | 10.0mm |
| Shoulder Length | 16.0mm |
| Thread Size | M8 |
| Material | A2 Stainless Steel |
| Thread Length | 13.0mm |
| Head Diameter | 16.0mm |
| Head Height | 7.0mm |
| Drive | H5 |
| Standard | ISO 7379 |
| Shoulder Tolerance | f9 |
Frequently Bought Together
Total Price: £0.00

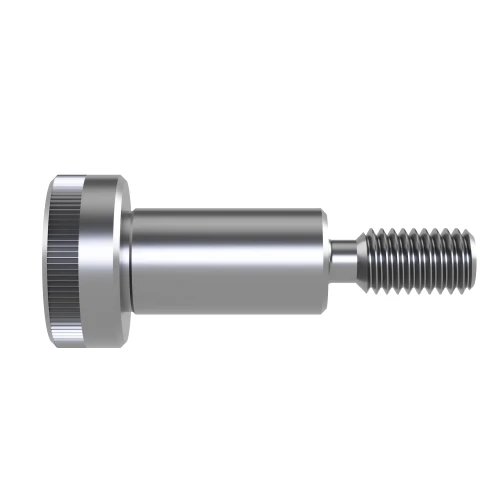

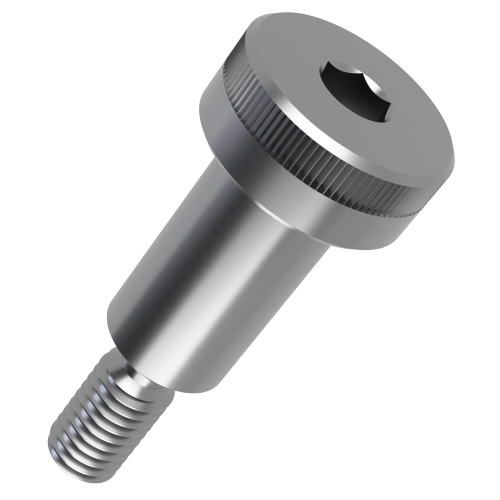

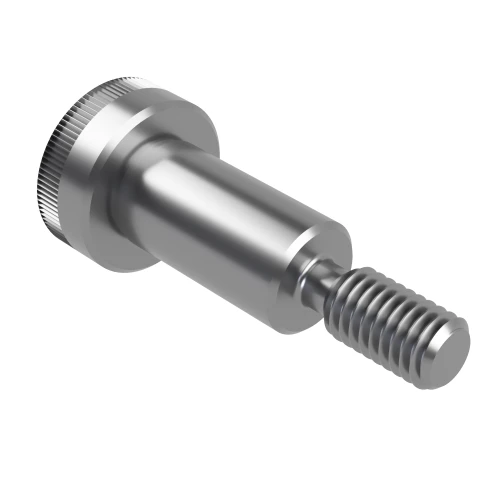

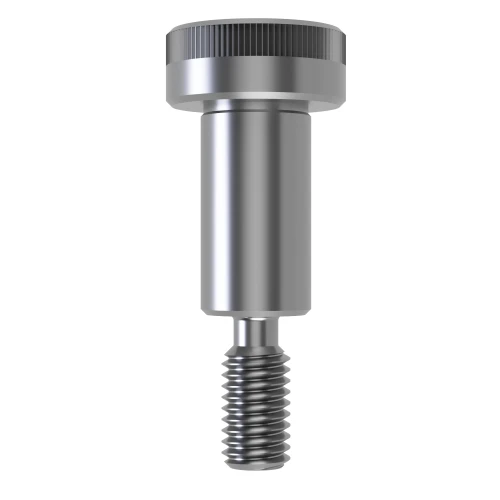

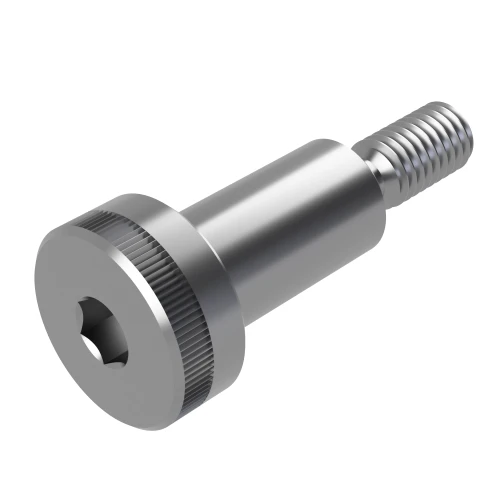

M8 (10mm) x 16mm Socket Shoulder Screw (ISO 7379) | A2 Stainless Steel
Engineered for assemblies that need a controlled plain shank, this M8 (10mm) x 16mm Socket Shoulder Screw pairs a 10mm bearing surface with a 13mm thread length. This helps it work as a ISO 7379 shoulder bolt in compact mechanical designs.
A2 stainless steel gives good corrosion resistance for indoor, production and light external environments where a clean finish is required. A socket drive head allows controlled tightening in recessed areas, making the part useful where access is limited.
ISO 7379 f9 Shoulder Tolerance Guide
| Nominal Diameter (ds in mm) | Lower Deviation (ES/EI) in μm | Upper Deviation (es/ei) in μm | Example Min. Diameter (mm) | Example Max. Diameter (mm) |
|---|---|---|---|---|
| 4 | -25 | -50 | 3.975 | 3.950 |
| 5 | -30 | -60 | 4.970 | 4.940 |
| 6 | -30 | -60 | 5.970 | 5.940 |
| 8 | -36 | -72 | 7.964 | 7.928 |
| 10 | -36 | -72 | 9.964 | 9.928 |
| 12 | -43 | -86 | 11.957 | 11.914 |
| 16 | -43 | -86 | 15.957 | 15.914 |
| 20 | -52 | -104 | 19.948 | 19.896 |
| 24 | -52 | -104 | 23.948 | 23.896 |
Note: The values in the table are a standard representation. The term "Lower Deviation" refers to the difference between the maximum material limit and the nominal size, while the "Upper Deviation" refers to the difference between the minimum material limit and the nominal size.
Common Applications
- Automation equipment assemblies
- Cam followers and location points
- Packaging machinery mechanisms
- Bearing supported movement

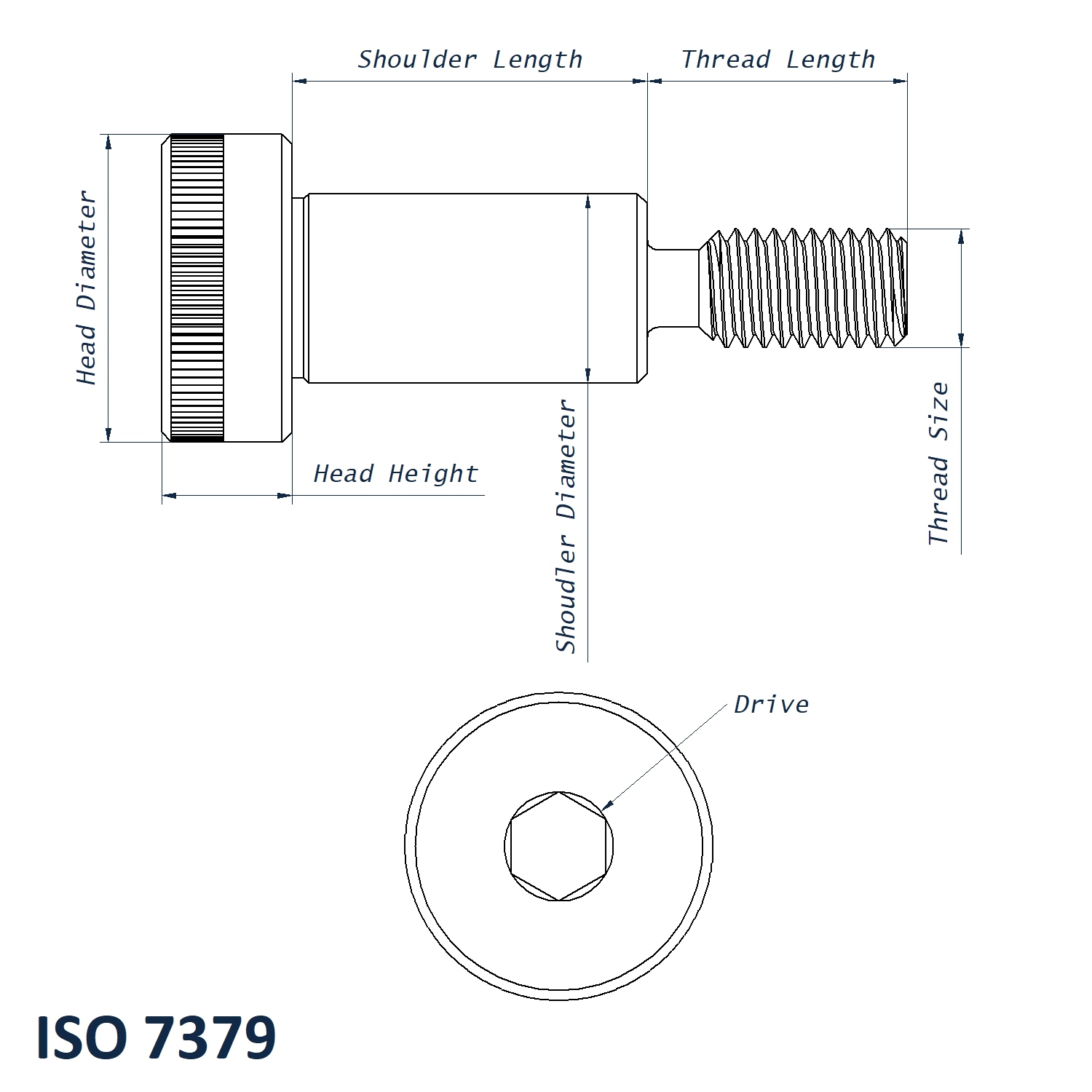

M8 (10mm) x 16mm Socket Shoulder Screw Dimensions
- Shoulder Diameter: 10mm
- Shoulder Length: 16mm
- Thread Size: M8
- Thread Length: 13mm
- Head Diameter: 16mm
- Head Height: 7mm
- Drive: H5
- Shoulder Tolerance: f9
- Standard: ISO 7379
- Material: A2 Stainless Steel
