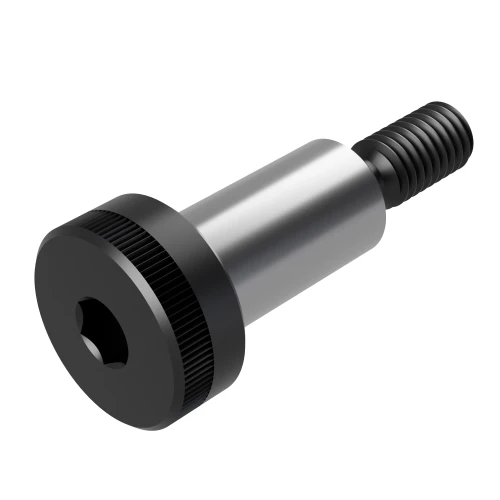

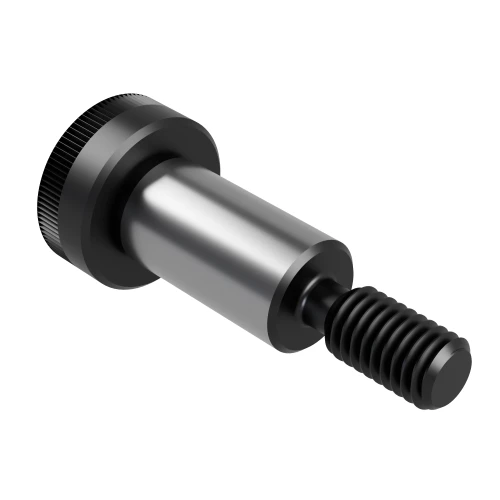

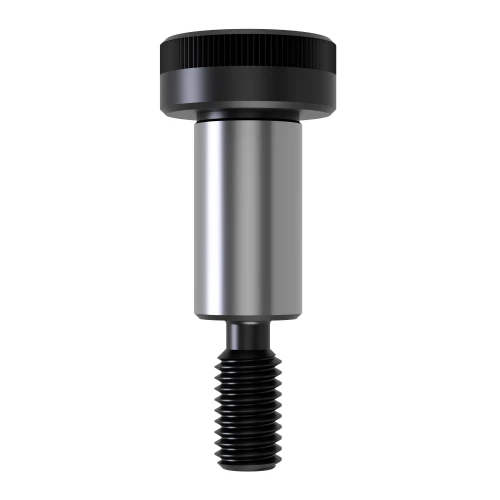

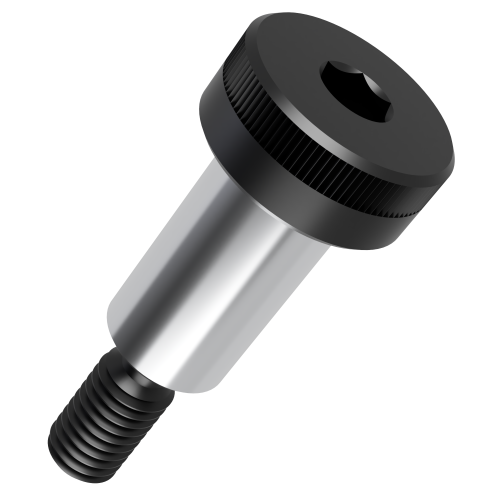

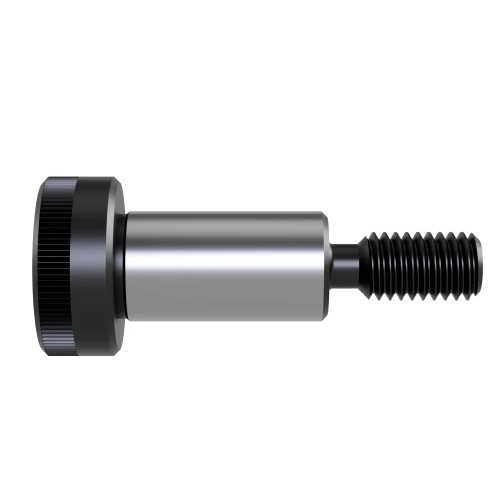

M8 (10mm) x 80mm Socket Shoulder Screw (ISO 7379) | 12.9 Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 9 | £2.30 | £2.76 |
| 10 - 24 | £1.73 | £2.07 |
| 25 - 49 | £1.58 | £1.90 |
| 50 - 99 | £1.44 | £1.73 |
| 100 - 499 | £1.15 | £1.38 |
| 500 + | £1.01 | £1.21 |
Product Specification
| Shoulder Diameter | 10.0mm |
| Shoulder Length | 80.0mm |
| Thread Size | M8 |
| Material | 12.9 Steel |
| Thread Length | 13.0mm |
| Head Diameter | 16.0mm |
| Head Height | 7.0mm |
| Drive | H5 |
| Standard | ISO 7379 |
| Shoulder Tolerance | f9 |
Frequently Bought Together
Total Price: £0.00
M8 (10mm) x 80mm Socket Shoulder Screw (ISO 7379) | 12.9 Steel
Suitable for mechanical location points, this M8 (10mm) x 80mm Socket Shoulder Screw gives a shoulder tolerance of f9 for accurate fitment in prepared holes. The format makes it a reliable machinery spacer screw for controlled location work.
The high tensile 12.9 steel construction supports robust fixing in fabrication, tooling and heavy equipment work. The socket head format gives a neat finish and supports high tightening control during machine build or repair work.
ISO 7379 f9 Shoulder Tolerance Guide
| Nominal Diameter (ds in mm) | Lower Deviation (ES/EI) in μm | Upper Deviation (es/ei) in μm | Example Min. Diameter (mm) | Example Max. Diameter (mm) |
|---|---|---|---|---|
| 4 | -25 | -50 | 3.975 | 3.950 |
| 5 | -30 | -60 | 4.970 | 4.940 |
| 6 | -30 | -60 | 5.970 | 5.940 |
| 8 | -36 | -72 | 7.964 | 7.928 |
| 10 | -36 | -72 | 9.964 | 9.928 |
| 12 | -43 | -86 | 11.957 | 11.914 |
| 16 | -43 | -86 | 15.957 | 15.914 |
| 20 | -52 | -104 | 19.948 | 19.896 |
| 24 | -52 | -104 | 23.948 | 23.896 |
Note: The values in the table are a standard representation. The term "Lower Deviation" refers to the difference between the maximum material limit and the nominal size, while the "Upper Deviation" refers to the difference between the minimum material limit and the nominal size.
Common Applications
- Commercial equipment servicing
- Latch and hinge mechanisms
- Conveyor guide assemblies
- Adjustable production tooling

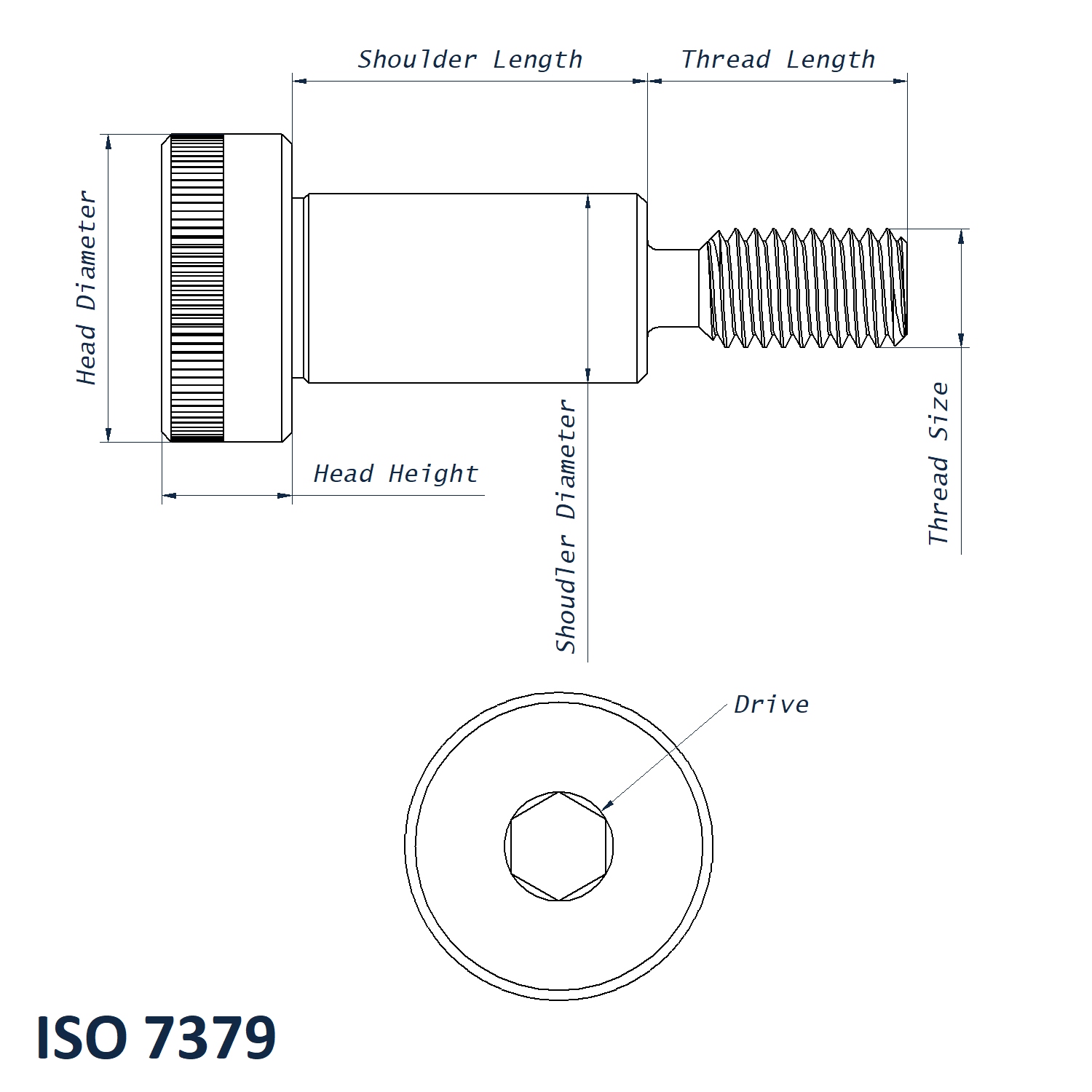

M8 (10mm) x 80mm Socket Shoulder Screw Dimensions
- Shoulder Diameter: 10mm
- Shoulder Length: 80mm
- Thread Size: M8
- Thread Length: 13mm
- Head Diameter: 16mm
- Head Height: 7mm
- Drive: H5
- Shoulder Tolerance: f9
- Standard: ISO 7379
- Material: 12.9 Steel
