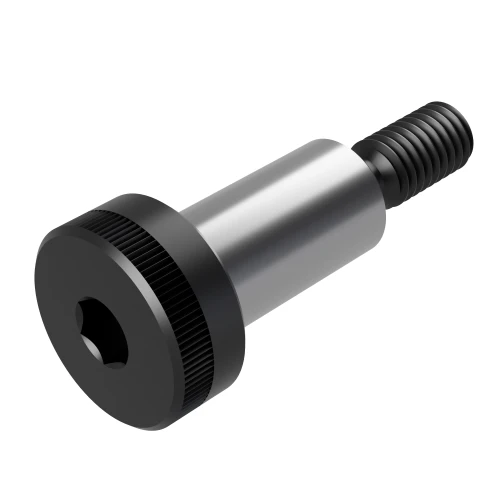

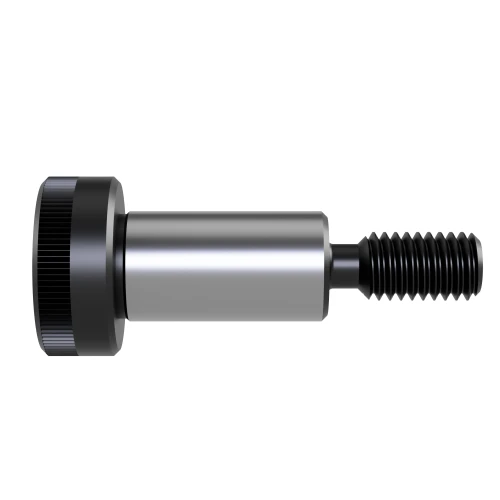

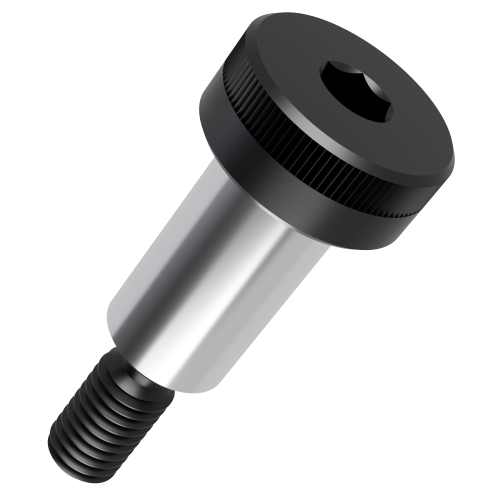

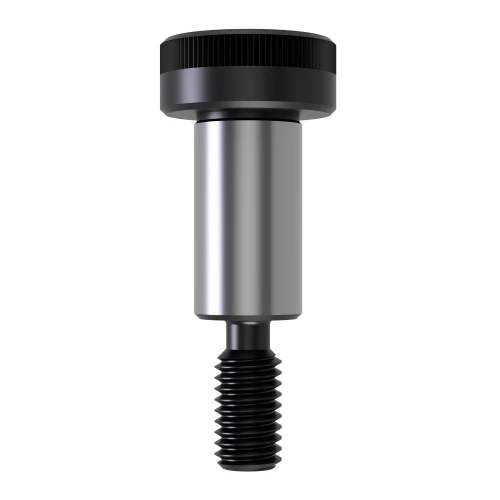

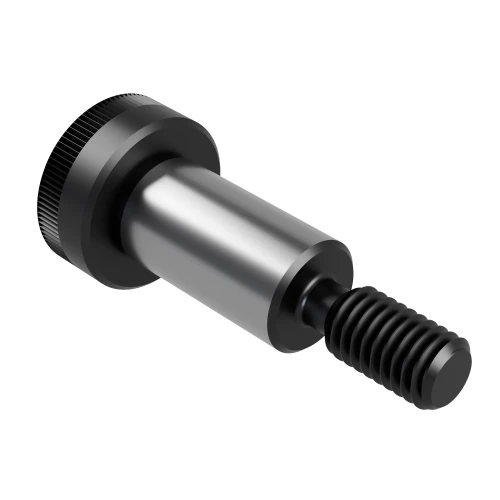

M10 (12mm) x 60mm Socket Shoulder Screw (ISO 7379) | 12.9 Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 9 | £1.89 | £2.27 |
| 10 - 24 | £1.42 | £1.70 |
| 25 - 49 | £1.30 | £1.56 |
| 50 - 99 | £1.18 | £1.42 |
| 100 - 499 | £0.95 | £1.14 |
| 500 + | £0.82 | £0.99 |
Product Specification
| Shoulder Diameter | 12.0mm |
| Shoulder Length | 60.0mm |
| Thread Size | M10 |
| Material | 12.9 Steel |
| Thread Length | 16.0mm |
| Head Diameter | 18.0mm |
| Head Height | 9.0mm |
| Drive | H6 |
| Standard | ISO 7379 |
| Shoulder Tolerance | f9 |
Frequently Bought Together
Total Price: £0.00
M10 (12mm) x 60mm Socket Shoulder Screw (ISO 7379) | 12.9 Steel
A practical choice for serviceable pivot joints, this M10 (12mm) x 60mm Socket Shoulder Screw delivers a plain shoulder area with a socket drive for tidy installation. The format makes it a reliable machinery spacer screw for controlled location work.
Its 12.9 steel grade gives the strength needed for compact mechanical joints exposed to repeated load or regular service. It provides a compact way to combine spacing, location and fastening within one mechanical component.
ISO 7379 f9 Shoulder Tolerance Guide
| Nominal Diameter (ds in mm) | Lower Deviation (ES/EI) in μm | Upper Deviation (es/ei) in μm | Example Min. Diameter (mm) | Example Max. Diameter (mm) |
|---|---|---|---|---|
| 4 | -25 | -50 | 3.975 | 3.950 |
| 5 | -30 | -60 | 4.970 | 4.940 |
| 6 | -30 | -60 | 5.970 | 5.940 |
| 8 | -36 | -72 | 7.964 | 7.928 |
| 10 | -36 | -72 | 9.964 | 9.928 |
| 12 | -43 | -86 | 11.957 | 11.914 |
| 16 | -43 | -86 | 15.957 | 15.914 |
| 20 | -52 | -104 | 19.948 | 19.896 |
| 24 | -52 | -104 | 23.948 | 23.896 |
Note: The values in the table are a standard representation. The term "Lower Deviation" refers to the difference between the maximum material limit and the nominal size, while the "Upper Deviation" refers to the difference between the minimum material limit and the nominal size.
Common Applications
- HVAC equipment manufacture
- Duct access hardware
- Fan guard assemblies
- Service panel fixings

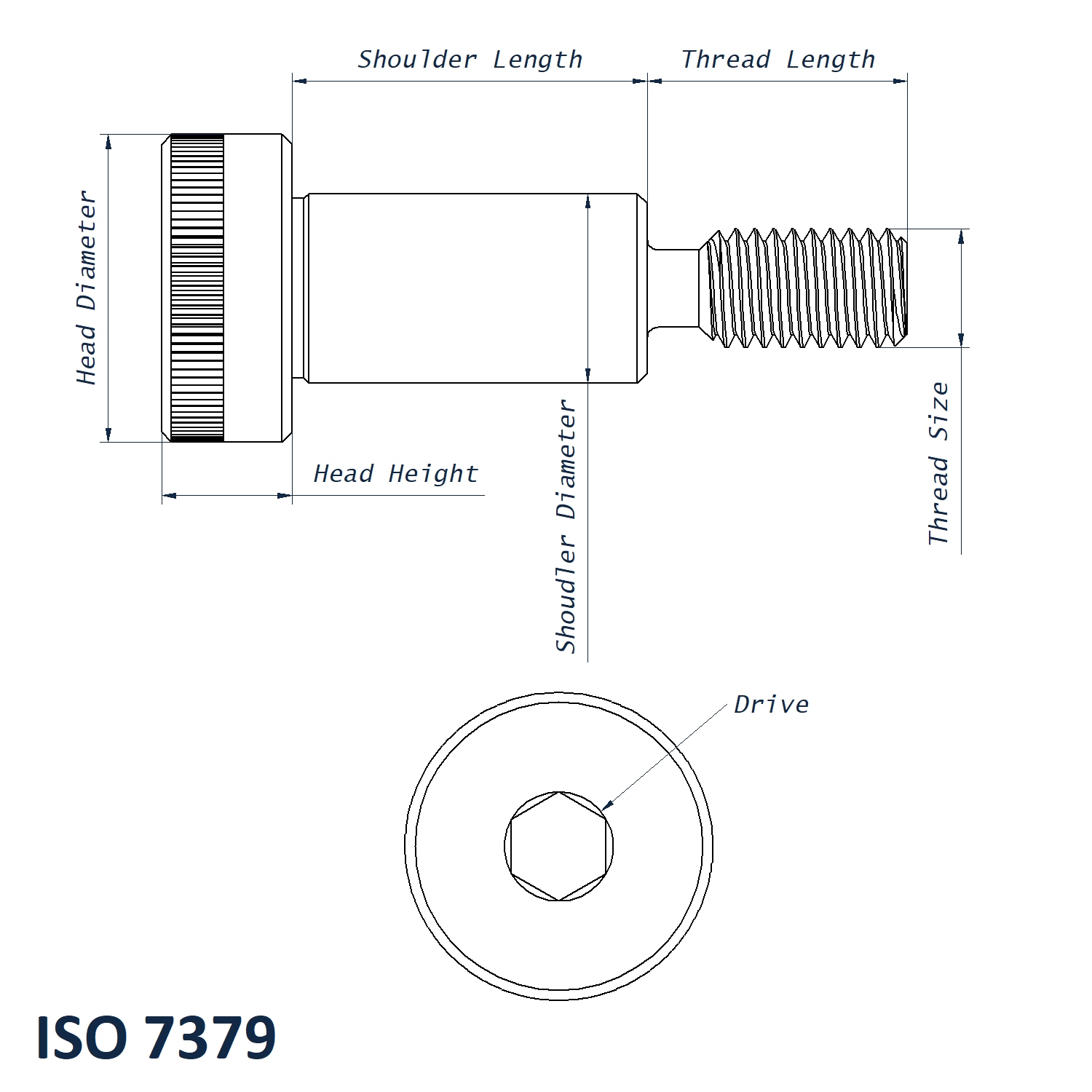

M10 (12mm) x 60mm Socket Shoulder Screw Dimensions
- Shoulder Diameter: 12mm
- Shoulder Length: 60mm
- Thread Size: M10
- Thread Length: 16mm
- Head Diameter: 18mm
- Head Height: 9mm
- Drive: H6
- Shoulder Tolerance: f9
- Standard: ISO 7379
- Material: 12.9 Steel
