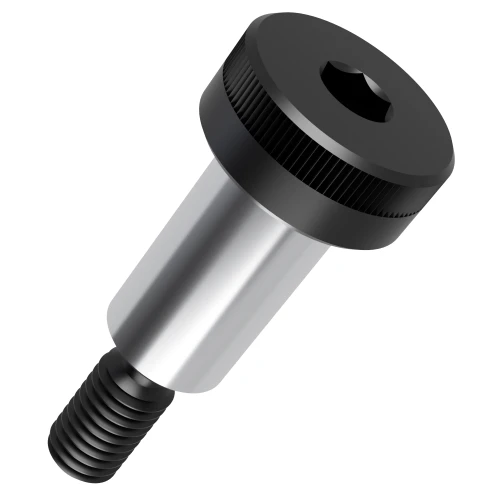

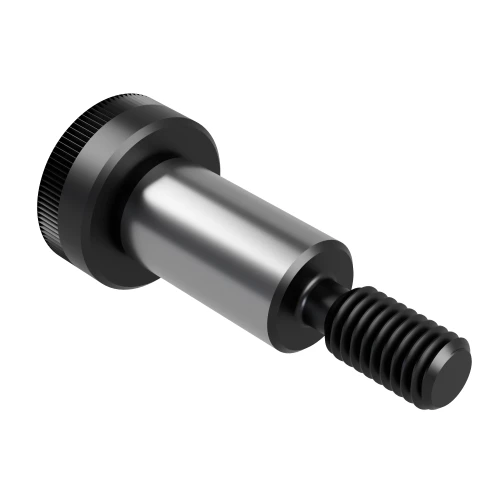

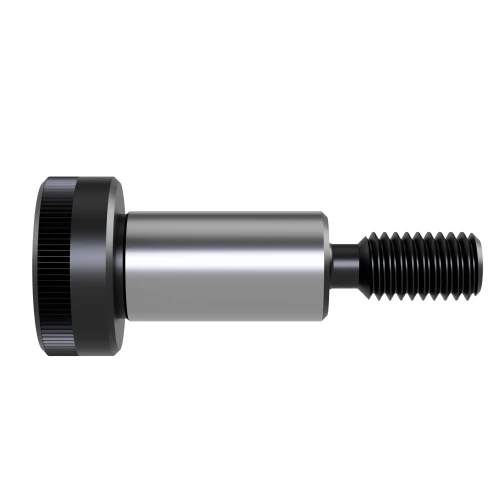

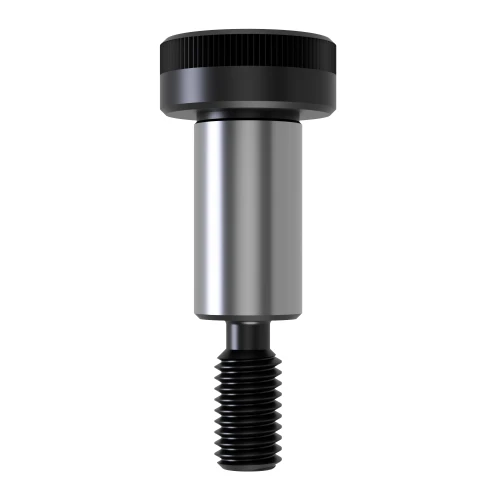

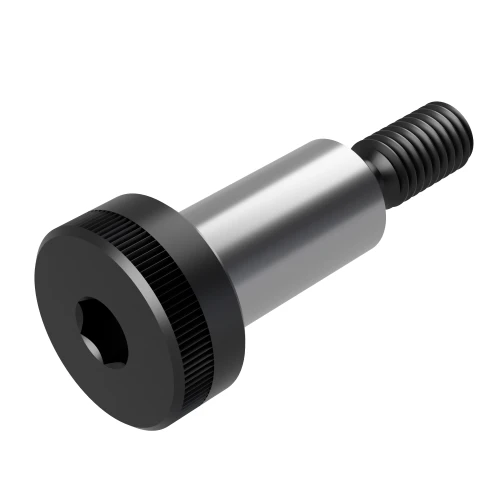

M12 (16mm) x 60mm Socket Shoulder Screw (ISO 7379) | 12.9 Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 9 | £2.99 | £3.59 |
| 10 - 24 | £2.24 | £2.69 |
| 25 - 49 | £2.06 | £2.47 |
| 50 - 99 | £1.87 | £2.24 |
| 100 - 499 | £1.50 | £1.80 |
| 500 + | £1.31 | £1.57 |
Product Specification
| Shoulder Diameter | 16.0mm |
| Shoulder Length | 60.0mm |
| Thread Size | M12 |
| Material | 12.9 Steel |
| Thread Length | 18.0mm |
| Head Diameter | 24.0mm |
| Head Height | 11.0mm |
| Drive | H8 |
| Standard | ISO 7379 |
| Shoulder Tolerance | f9 |
Frequently Bought Together
Total Price: £0.00
M12 (16mm) x 60mm Socket Shoulder Screw (ISO 7379) | 12.9 Steel
Providing a clean pivot section for moving parts, this M12 (16mm) x 60mm Socket Shoulder Screw is built around a 16mm shoulder and 11mm head height. It suits machine shoulder screw requirements where the shoulder size matters as much as the thread.
The high tensile 12.9 steel construction supports robust fixing in fabrication, tooling and heavy equipment work. Its shoulder format helps control stack height, making it suitable for assemblies that need a fixed pivot distance.
ISO 7379 f9 Shoulder Tolerance Guide
| Nominal Diameter (ds in mm) | Lower Deviation (ES/EI) in μm | Upper Deviation (es/ei) in μm | Example Min. Diameter (mm) | Example Max. Diameter (mm) |
|---|---|---|---|---|
| 4 | -25 | -50 | 3.975 | 3.950 |
| 5 | -30 | -60 | 4.970 | 4.940 |
| 6 | -30 | -60 | 5.970 | 5.940 |
| 8 | -36 | -72 | 7.964 | 7.928 |
| 10 | -36 | -72 | 9.964 | 9.928 |
| 12 | -43 | -86 | 11.957 | 11.914 |
| 16 | -43 | -86 | 15.957 | 15.914 |
| 20 | -52 | -104 | 19.948 | 19.896 |
| 24 | -52 | -104 | 23.948 | 23.896 |
Note: The values in the table are a standard representation. The term "Lower Deviation" refers to the difference between the maximum material limit and the nominal size, while the "Upper Deviation" refers to the difference between the minimum material limit and the nominal size.
Common Applications
- Construction plant maintenance
- Equipment covers and guards
- Steel framework assemblies
- Wear resistant shoulder locations

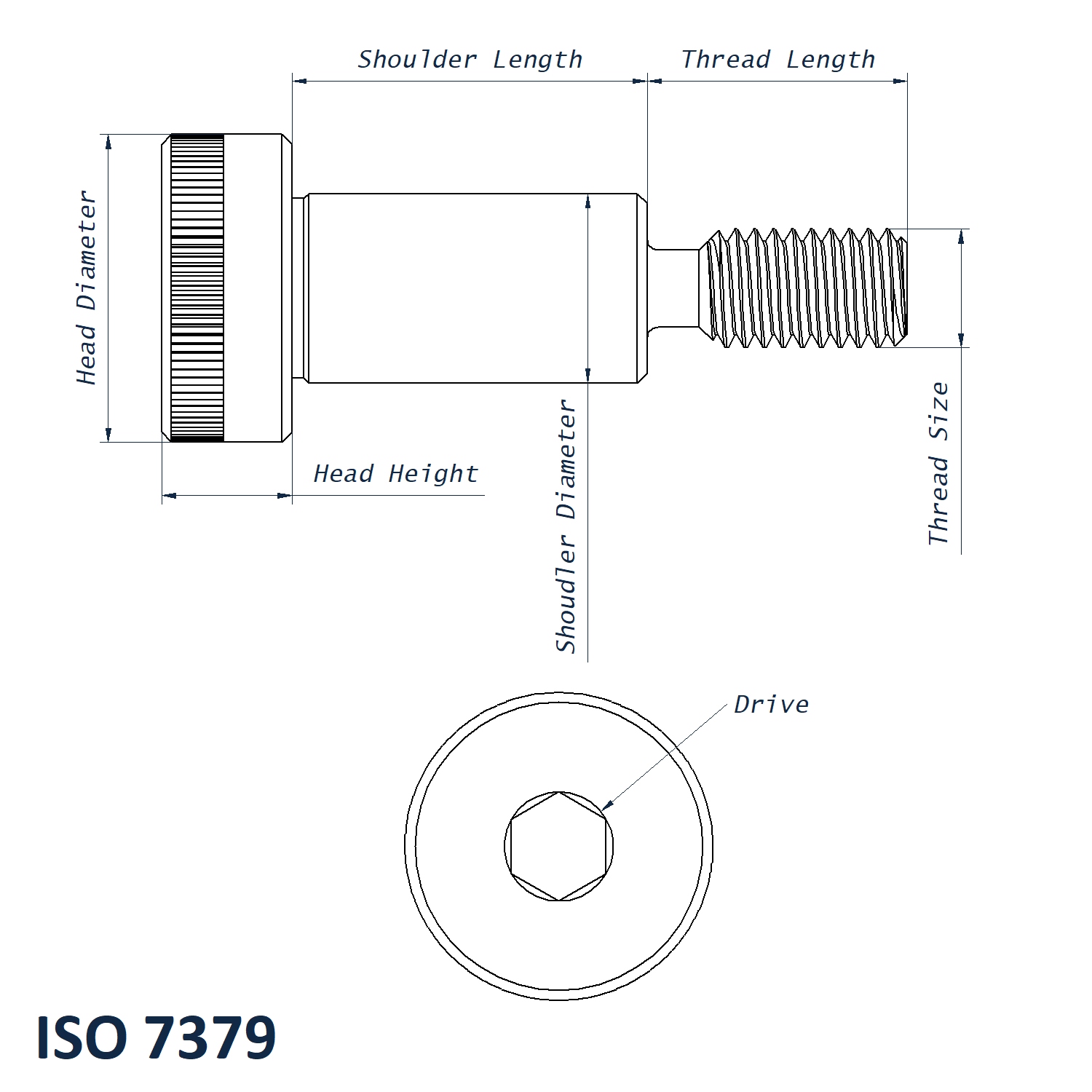

M12 (16mm) x 60mm Socket Shoulder Screw Dimensions
- Shoulder Diameter: 16mm
- Shoulder Length: 60mm
- Thread Size: M12
- Thread Length: 18mm
- Head Diameter: 24mm
- Head Height: 11mm
- Drive: H8
- Shoulder Tolerance: f9
- Standard: ISO 7379
- Material: 12.9 Steel
