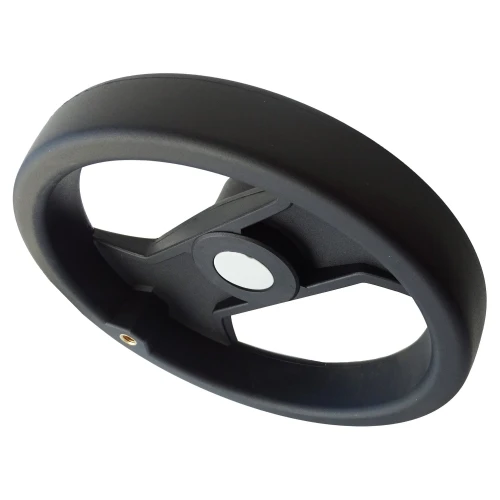

160mm x 56mm Spoked Control Handwheel - Fixed Handle

160mm x 56mm Spoked Control Handwheel - Fixed Handle | Vital Parts - HW1002

Our 160mm x 56mm Spoked Control Handwheel - Fixed Handle is designed for precise, controlled movement in machinery and industrial setups. With a robust 160mm diameter and a 56mm overall height, this handwheel features a fixed handle for direct torque transfer and is constructed from Glass Filled Nylon for strength and impact resistance. A BZP steel thread completes the assembly, offering excellent mechanical grip and corrosion protection in industrial environments.

What Is a Spoked Control Handwheel?

Spoked control handwheels are commonly used on machinery and equipment where frequent manual adjustment is required. The open-spoke design allows for lighter weight and easier handling, while the fixed handle ensures direct, controlled rotation. Ideal for applications where the user must reliably and repeatedly rotate or position a shaft or assembly.

Primary Applications

• Industrial Machinery: Used to operate mechanical shafts, valves or clamping units.
• Adjustable Equipment: Ideal for jigs, fixtures and height-adjustable assemblies.
• Control Panels: Offers manual control in environments requiring secure and repeatable operation.

Why Choose This Control Handwheel?

Fixed Handle Design: Ensures precise, consistent torque application with a durable, comfortable grip.

Durable Materials: Manufactured from Glass Filled Nylon with BZP thread, combining strength and corrosion resistance.

Detailed Engineering: Includes a 76mm handle height, 20mm bore, 40mm shank diameter and 40mm shoulder height for balanced performance.

Key Features and Benefits

• Handwheel diameter: 160mm with a total height of 56mm.
• Fixed handle with 76mm height and 24mm thickness.
• Shank diameter of 40mm and shoulder height of 40mm for stable mounting.
• Standard bore: 20mm - fits a wide range of spindles and shafts.
• Colour: Black.
• Material: Glass Filled Nylon body with BZP thread for durable use.

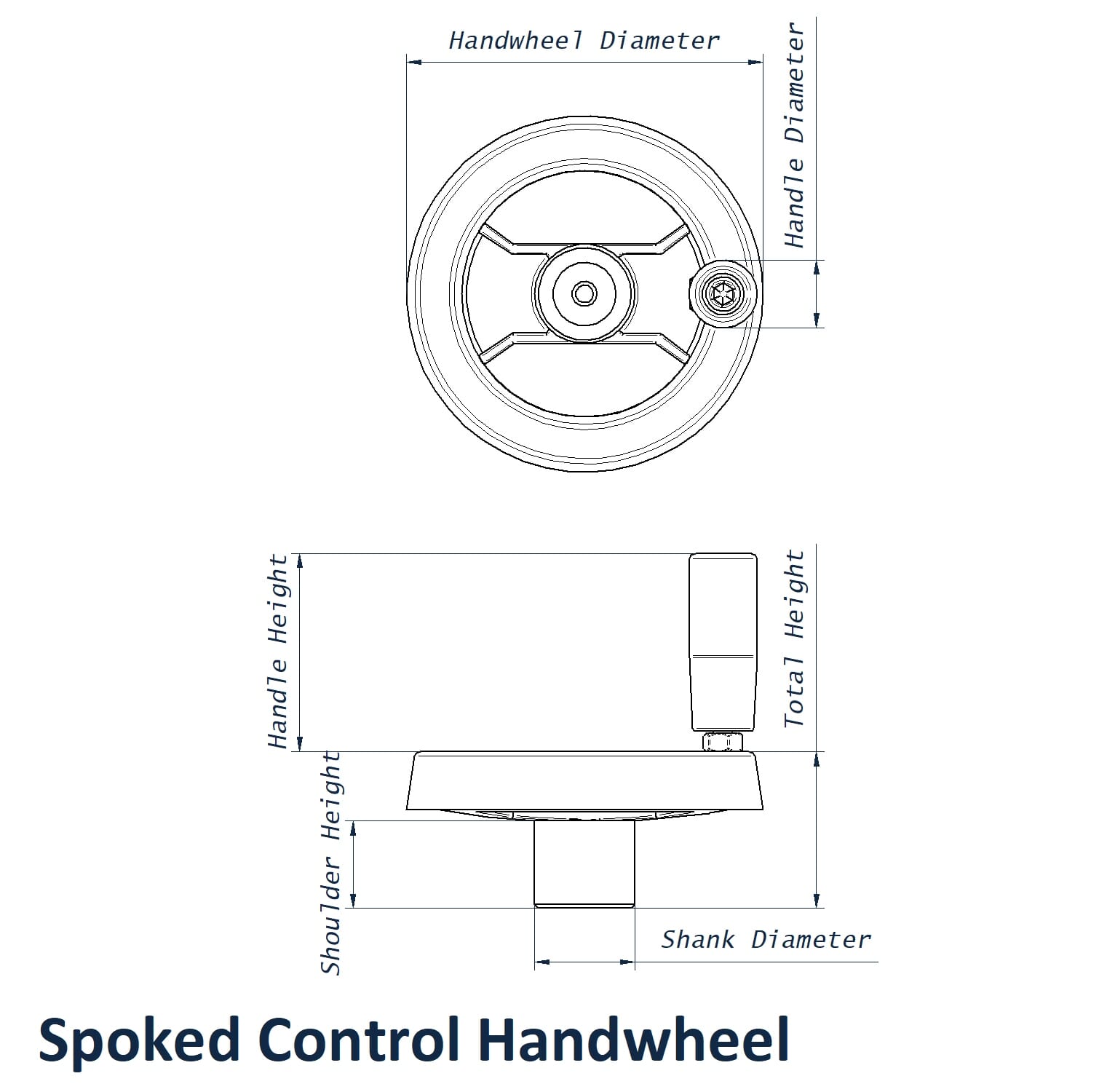

Product Specifications

• Handwheel Diameter: 160mm
• Total Height: 56mm
• Handle Height: 76mm
• Handle Thickness: 24mm
• Shank Diameter: 40mm
• Shoulder Height: 40mm
• Standard Bore: 20mm
• Style: Fixed Handle
• Colour: Black
• Handwheel Material: Glass Filled Nylon
• Thread Material: BZP
• Product Code: HW1002
