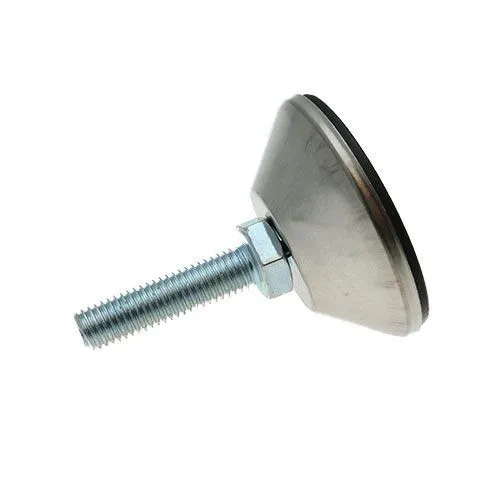

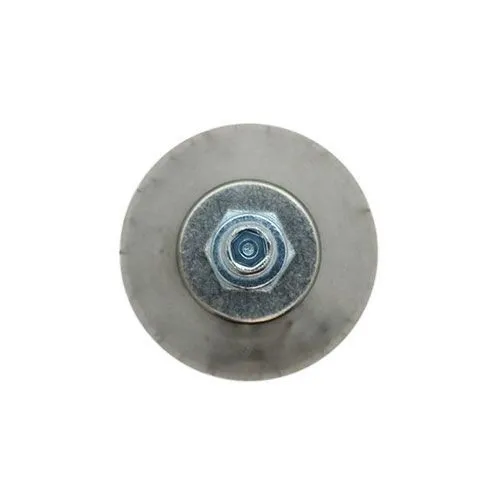

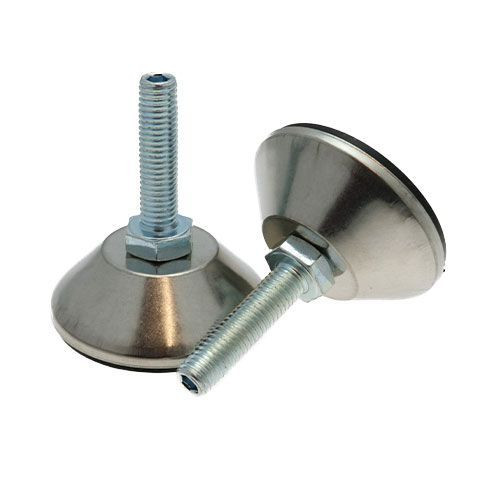

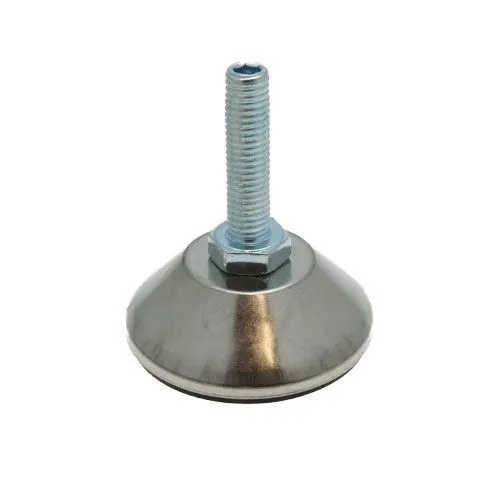

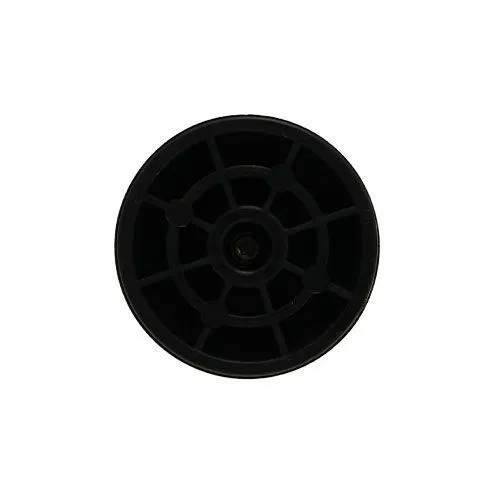

M10 x 70mm Stainless Steel Levelling Foot (Covered Base) - 58mm Base & 5mm Allen Head | 550kg
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 499 | £3.33 | £4.00 |
| 500 - 999 | £3.27 | £3.92 |
| 1000 - 4999 | £3.20 | £3.84 |
| 5000 - 9999 | £3.13 | £3.76 |
| 10000 + | £3.08 | £3.69 |
£4.00 / each
Product Specification
| Thread Size | M10 |
| Thread Length | 70mm |
| Base Diameter | 58mm |
| Weight Rating | 550kg |
| Style | 5mm Allen Head |
| WAF | 17mm |
| Material | BZP Screw / Stainless Steel Cover/ Polypropylene Base |
| Base Height | 27mm |
Frequently Bought Together
Total Price: £0.00
M10 x 70mm 5mm Allen Head Stainless Steel Covered Adjustable Foot | 58mm Base Diameter | 550kg Weight Rated
These M10 x 70mm stainless steel covered feet use a 5mm allen head format for small conveyor beds, offering a clean-looking levelling point where levelling feet assist belt tracking by keeping the frame correctly set.
The adjustable thread allows final height setting once the unit is in position, which is helpful for fabrication and assembly environments. The zinc Plated Screw, Stainless Steel Cover, Polypropylene Base construction combines a protected threaded element with a neat covered base.
Common Applications
- Laboratory benches and inspection stations
- Assembly benches and production line workstations
- Test rigs and measuring equipment supports
- Medical equipment stands and clean utility furniture

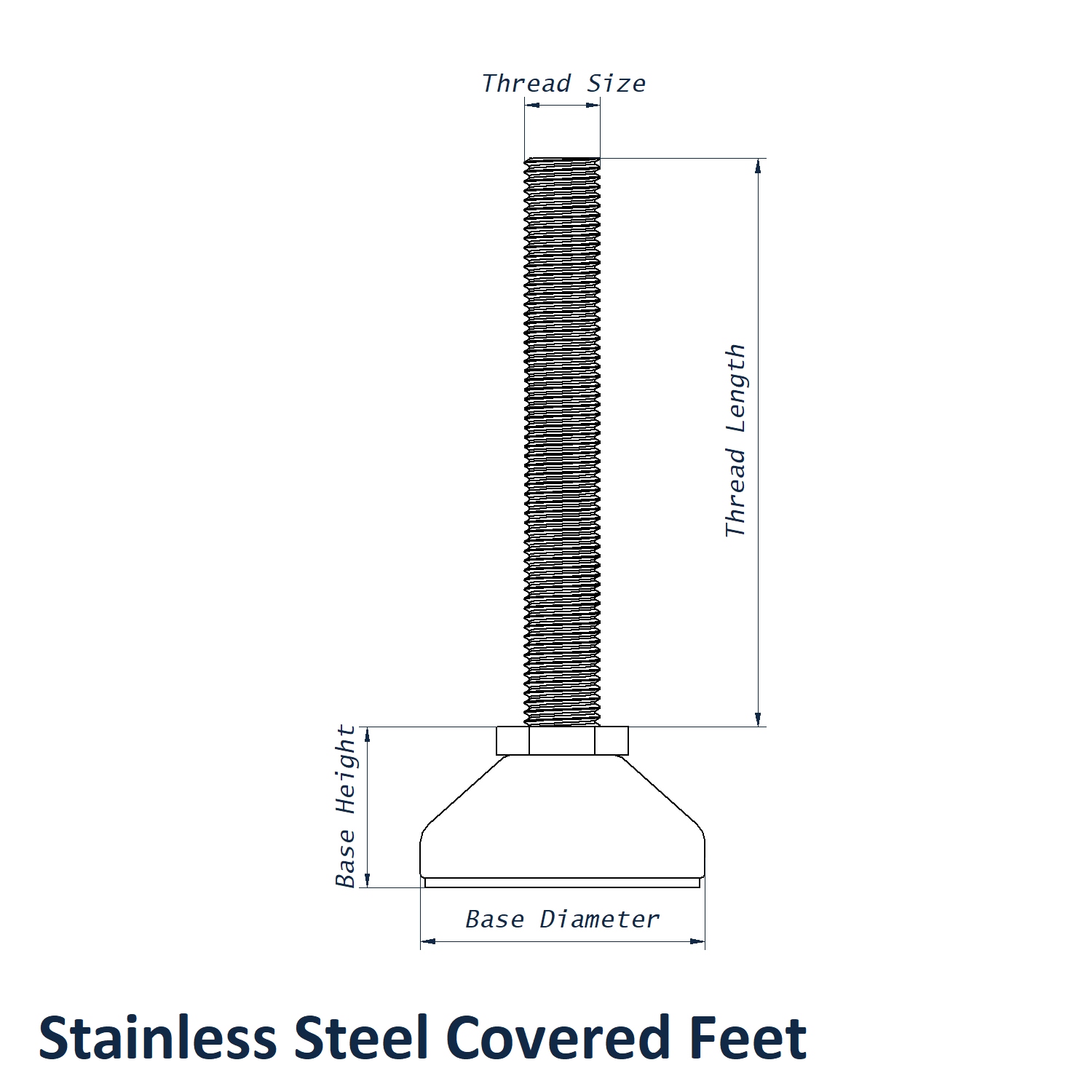

M10 x 70mm 5mm Allen Head Stainless Steel Covered Adjustable Foot Dimensions
- Thread: M10 x 70mm
- Base Diameter: 58mm
- Weight Rating: 550kg
- Base & Hex Nut Height: 27mm
- Style: 5mm Allen Head
- WAF: 17mm
- Material: Zinc Plated Screw, Stainless Steel Cover, Polypropylene Base
- Colour: Silver
Commonly Paired with Stainless Steel Covered Feet - T Nuts
For timber frames, cabinets and benches, T Nuts can provide a strong internal fixing point for compatible adjustable feet. Check thread size, panel thickness and load before buying.
Click here to view our full range of T Nuts.
View our full Stainless Steel Covered Feet range or browse Adjustable Feet for more levelling feet options.
