M10 x 90mm Stainless Steel Levelling Foot (Covered Base) - 58mm Base & 5mm Allen Head | 550kg
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 499 | £3.71 | £4.45 |
| 500 - 999 | £3.24 | £3.89 |
| 1000 - 4999 | £3.06 | £3.67 |
| 5000 - 9999 | £2.89 | £3.47 |
| 10000 + | £2.10 | £2.52 |
£4.45 / each
Product Specification
| Thread Size | M10 |
| Thread Length | 90mm |
| Base Diameter | 58mm |
| Weight Rating | 550kg |
| Style | 5mm Allen Head |
| WAF | 17mm |
| Material | BZP Screw / Stainless Steel Cover/ Polypropylene Base |
| Base Height | 27mm |
Frequently Bought Together
Total Price: £0.00

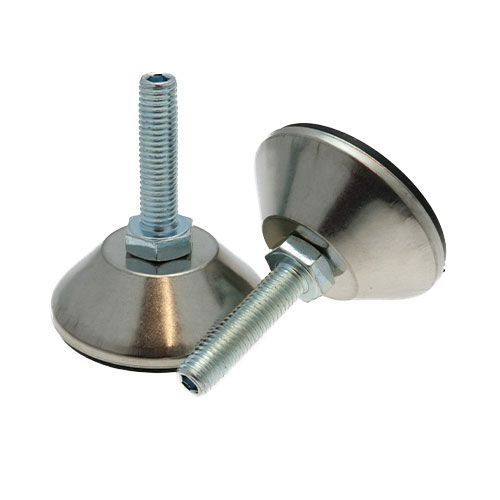

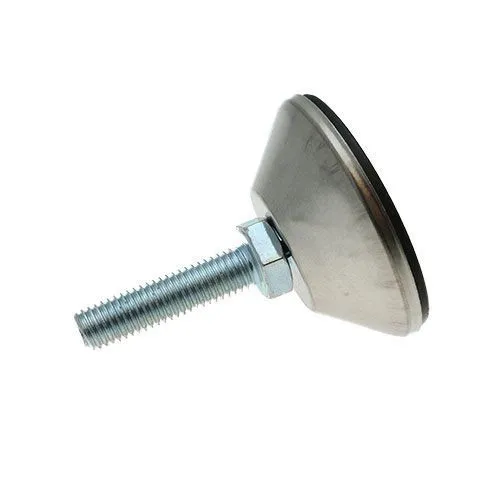

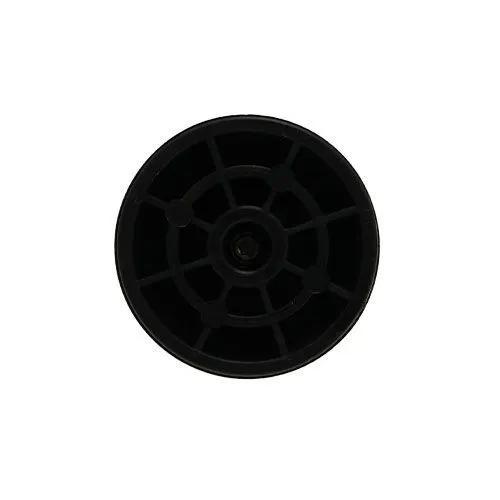

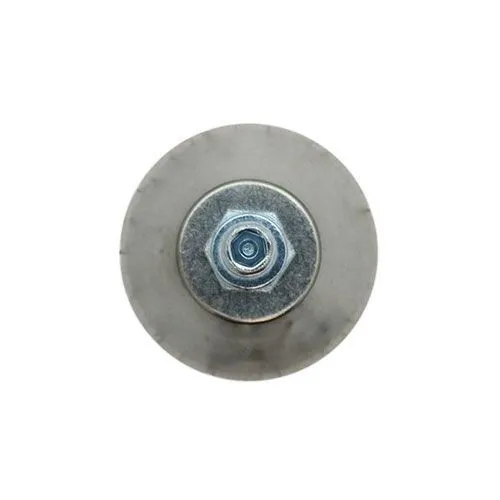

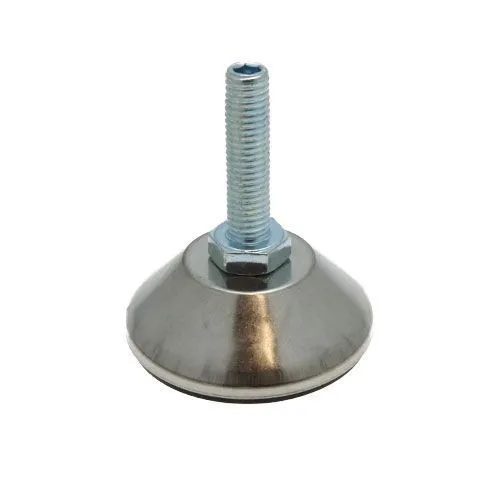

M10 x 90mm 5mm Allen Head Stainless Steel Covered Adjustable Foot | 58mm Base Diameter | 550kg Weight Rated
The M10 x 90mm 5mm allen head stainless steel covered adjustable foot is suited to floor standing enclosures, where a stainless cover levelling feet needs both support and a finished appearance.
The base diameter offers a compact support point for equipment with limited clearance, so the foot works well where equipment needs a visible support that can still be set accurately. The 550kg rating should be checked against the final load.
Common Applications
- Plant room frames and maintenance replacement work
- Test rigs and measuring equipment supports
- Medical equipment stands and clean utility furniture
- Retail display units and point of sale fixtures
M10 x 90mm 5mm Allen Head Stainless Steel Covered Adjustable Foot Dimensions
- Thread: M10 x 90mm
- Base Diameter: 58mm
- Weight Rating: 550kg
- Base & Hex Nut Height: 27mm
- Style: 5mm Allen Head
- WAF: 17mm
- Material: Zinc Plated Screw, Stainless Steel Cover, Polypropylene Base
- Colour: Silver
Commonly Paired with Stainless Steel Covered Feet - T Nuts
When fitting covered levelling feet into furniture or equipment bases, T Nuts can help create a reliable threaded anchor. Review the product details before buying for a secure match.
Click here to view our full range of T Nuts.
View our full Stainless Steel Covered Feet range or browse Adjustable Feet for more levelling feet options.
