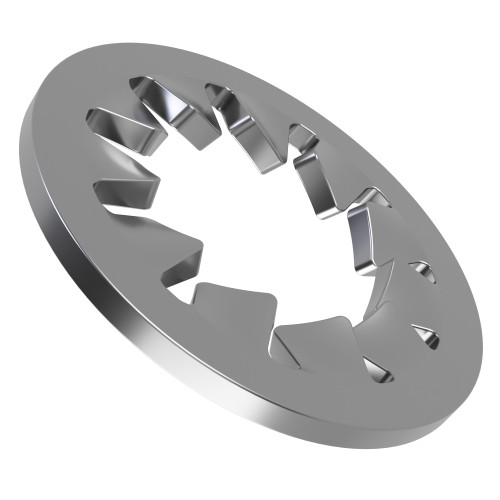

M30 Serrated Lock Washer 48.0mm (Internal Teeth) DIN 6798J | A2 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £0.53 | £0.63 |
| 100 - 999 | £0.43 | £0.52 |
| 1000 - 4999 | £0.30 | £0.36 |
| 5000 + | £0.26 | £0.31 |
£0.63 / each
.png)

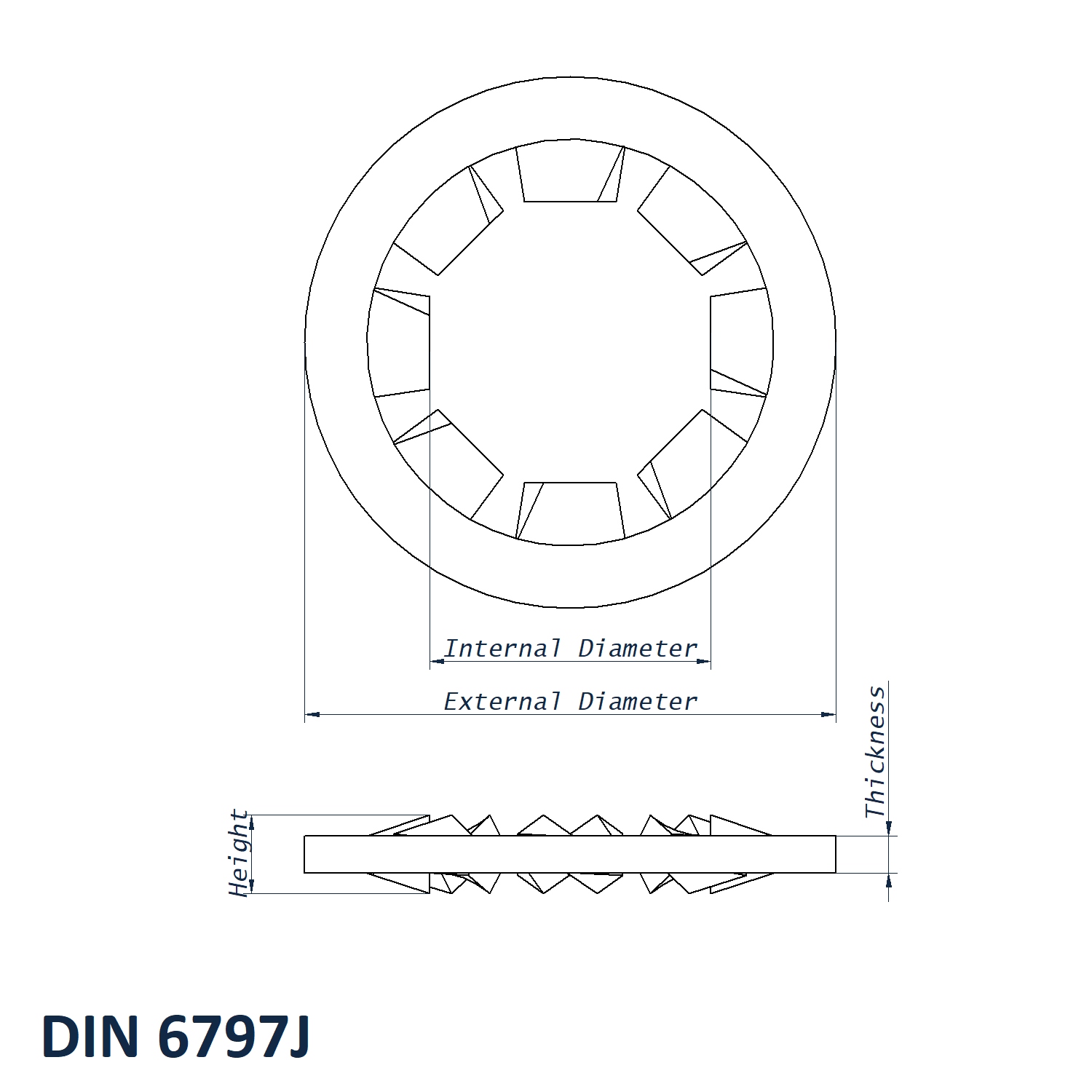

Product Specification
| Size | M30 |
| Internal Diameter | 31.39mm |
| Outside Diameter | 48.0mm |
| Thickness | 1.6mm |
| Height | 4.8mm |
| Standard | DIN 6798J |
| Material | A2 Stainless Steel |
Frequently Bought Together
Total Price: £0.00
M30 Serrated Lock Washer 48.0mm (Internal Teeth) DIN 6798J A2 Stainless Steel WS6798J-M30-A2
The M30 Serrated Lock Washer 48.0mm (Internal Teeth) DIN 6798J A2 Stainless Steel (WS6798J-M30-A2) is an internal-tooth serrated lock washer manufactured to DIN 6798J. Its inward-facing teeth are designed to engage with the fastener and mating surface, helping to resist loosening in bolted and screwed assemblies. Manufactured from A2 Stainless Steel, it is suited to applications where a secure fastening and corrosion resistance are required.
What are Internal Tooth Serrated Lock Washers?
Internal tooth serrated lock washers feature a series of teeth around the inside diameter of the washer. When compressed beneath a screw head or nut, these teeth create additional grip within the joint and help reduce unwanted movement caused by vibration or repeated loading.
Technical Specifications:
- Size: M30
- Internal Diameter: 31.39mm
- Outside Diameter: 48.0mm
- Thickness: 1.6mm
- Height: 4.8mm
- Standard: DIN 6798J
- Material: A2 Stainless Steel
Applications:
- General engineering and mechanical assemblies
- Machinery and equipment manufacture
- Electrical and electronic assemblies
- Panel, enclosure and sheet metal fastening
- Maintenance, repair and production applications
Benefits:
- Internal serrations provide additional grip within the fastening joint
- Helps resist loosening caused by vibration and movement
- Compact washer profile for use beneath screw heads and nuts
- Manufactured to DIN 6798J for consistent dimensional compatibility
- A2 stainless steel provides dependable corrosion resistance for general engineering, machinery and assembly applications.
