Standard Fixed Rubber Feet - ADJ005
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 1 | £2.81 | £3.37 |
| 2 - 50 | £2.75 | £3.30 |
| 51 - 100 | £2.70 | £3.24 |
| 101 - 250 | £2.64 | £3.17 |
| 251 - 500 | £2.59 | £3.11 |
| 501 + | £2.54 | £3.05 |
Product Specification
| Thread Size | M10 |
| Stud Length | 28mm |
| Base Diameter | 30mm |
| Base Height | 11mm |
| Style | Standard |
| Material | Rubber & BZP Steel |
Frequently Bought Together
Total Price: £0.00

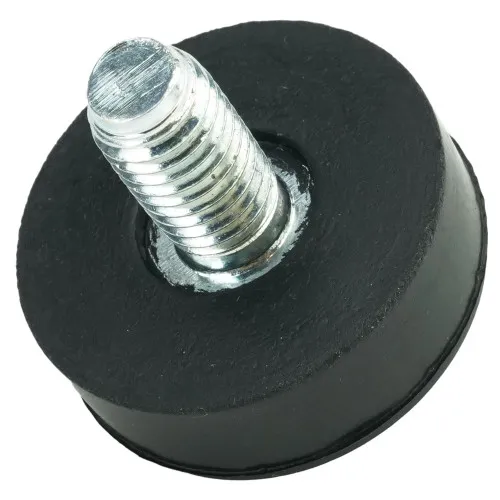

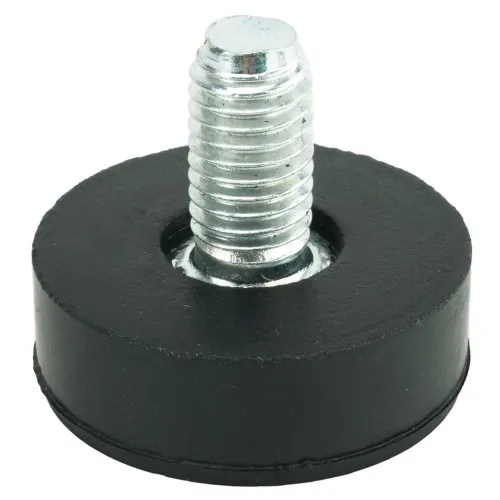

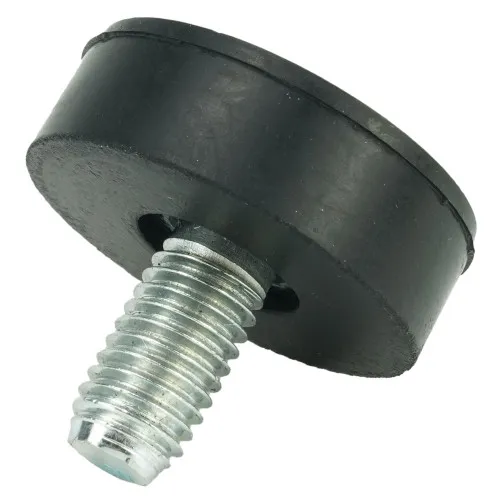

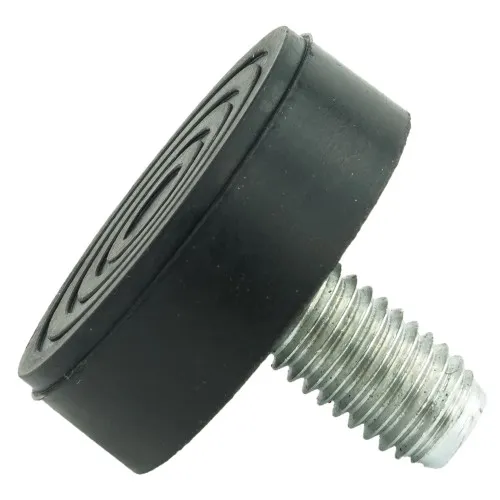

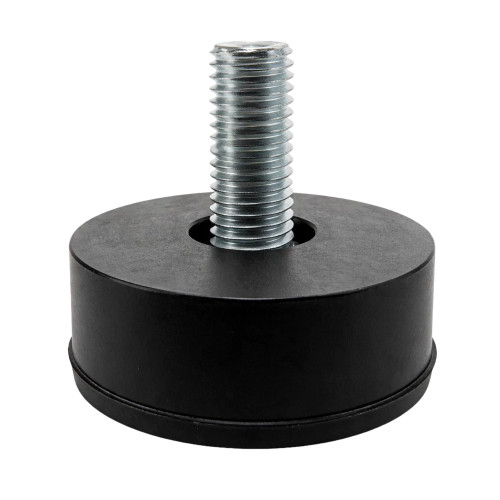

M10 x 28mm Standard Straight Rubber Foot | 30mm Base Diameter | Black Rubber & BZP Steel
This M10 x 28mm Standard Straight Rubber Foot uses a medium M10 thread and 30mm base diameter, giving packaging machinery and support frames a dependable fixed foot with controlled rubber contact.
The BZP steel stud gives a robust threaded connection for moderate equipment loads, while the black rubber pad helps protect finished floors and reduce small movement during operation.
Common Applications
- Packaging machinery support frames
- Medium duty production equipment
- Machine guarding feet where M10 fixings are specified
- Adjustable bases for workstations used in manufacturing areas

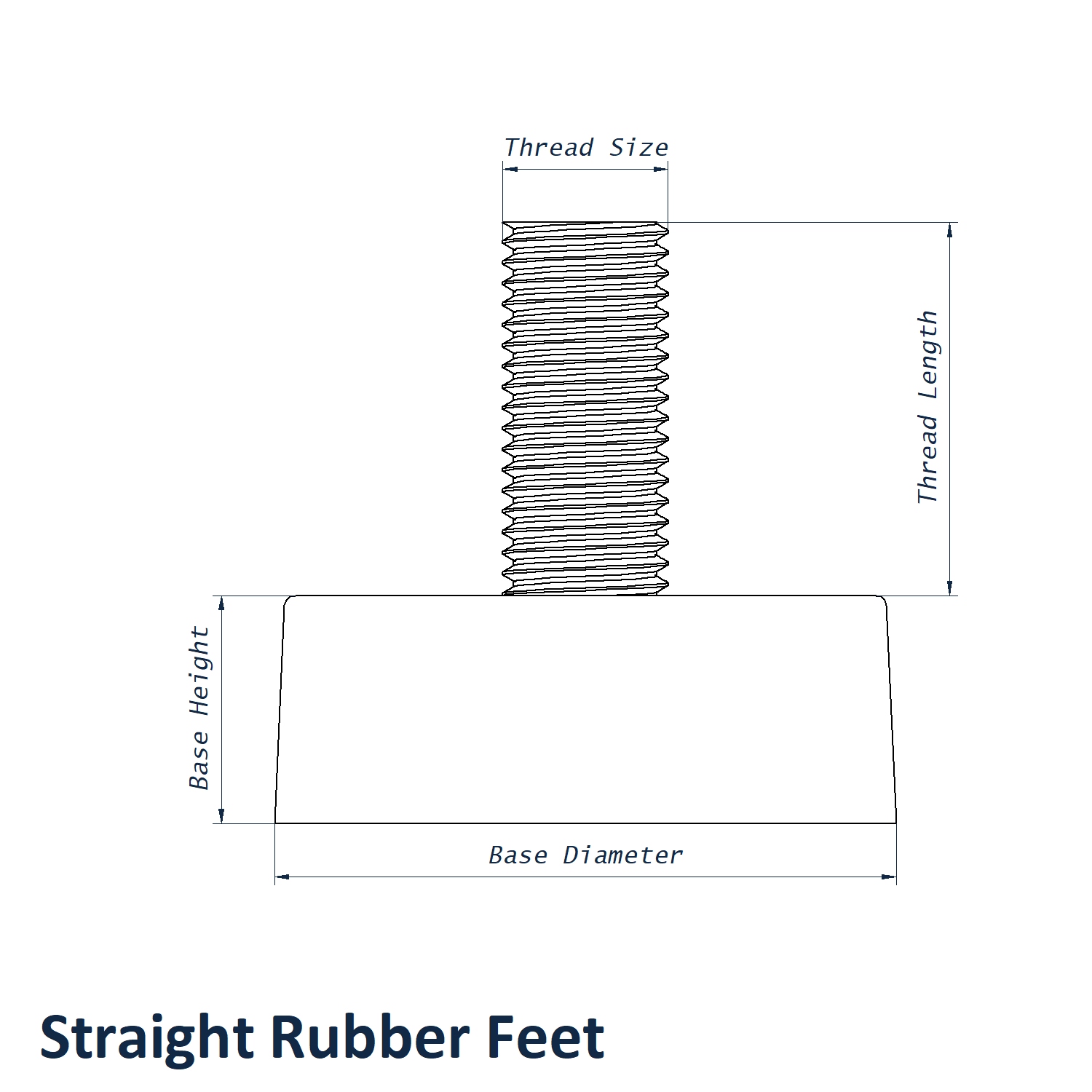

M10 x 28mm Standard Straight Rubber Foot | 30mm Base Diameter Dimensions
- Base Diameter: 30mm
- Thread Size: M10
- Stud Length: 28mm
- Base Height: 11mm
- Style: Standard
- Material: Rubber & BZP Steel
- Colour: Black
Buying Guidance
This 28mm stud is a useful middle option when an M10 fixing is required but a very long thread is not needed for the frame thickness.
Compatible T Nuts
Where a threaded fixing needs to be added to timber or sheet material, compatible T Nuts can be used to receive the M10 stud.
View our full straight rubber feet range for additional thread sizes, stud lengths and base diameters.
