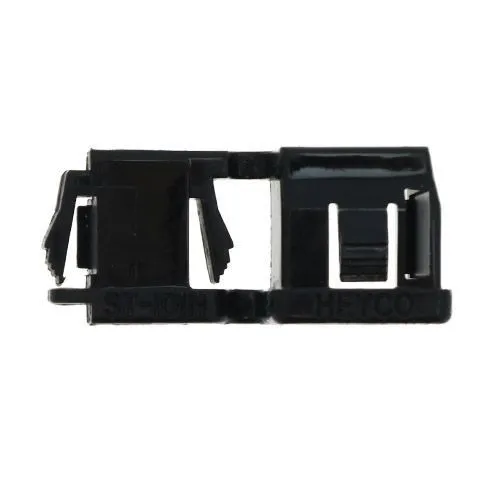

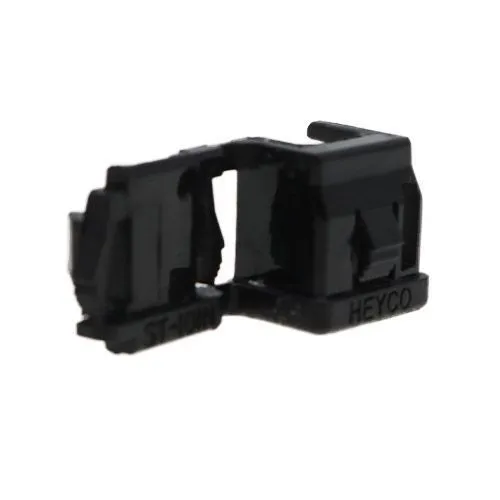

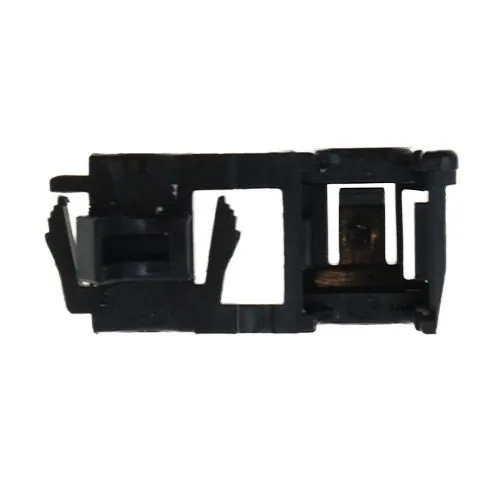

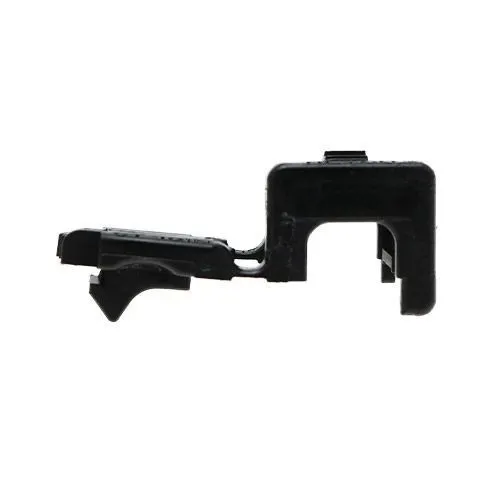

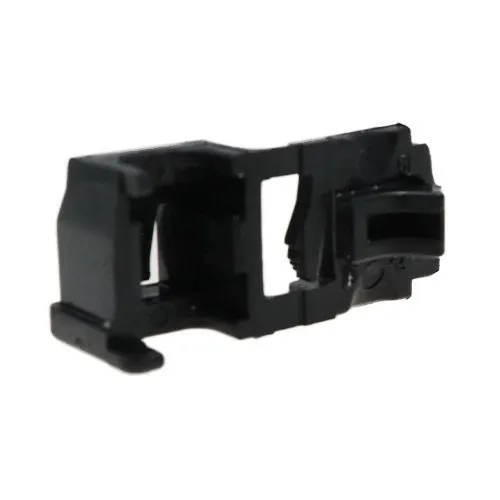

Straight Thru Strain Relief Bushings - STRB102R
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 0 - 249 | £0.28 | £0.33 |
| 250 - 499 | £0.23 | £0.28 |
| 500 - 999 | £0.21 | £0.25 |
| 1000 - 2499 | £0.18 | £0.22 |
| 2500 + | £0.16 | £0.19 |
Product Stock
| Product Specifications | STRB102R |
|---|---|
| Mounting Hole Diameter | 17.5 x 17.5mm |
| Panel Thickness | 0.8 - 2.5mm |
| Min Cable Diameter | 7.4mm |
| Max Cable Diameter | 9.1mm |
| Colour | Black |
| Cable Type | Round |
| Material | Nylon 66 |
Same Day Dispatch Available
Order by 4pm (UK) for same day dispatch (Monday – Thursday, 2pm Friday). Next Day or Standard Delivery available via DHL or Royal Mail.
Frequently Bought Together
Total Price: £0.00
Product Description
Black Strain Relief Bushings for Non Round Holes – Round Cable Type – 17.5 x 17.5mm Mounting Hole Diameter - For Cable Diameters from 7.4mm to 9.1mm – Nylon 66 | Vital Parts – STRB102R
Strain Relief Bushings for Non Round Holes are part of the Lockit range from Heyco, designed to snap securely into square or rectangular panel holes. These bushings hold cables firmly in position and allow for pre-assembly before final panel installation. This makes them a convenient and assembly-friendly option, especially in large-scale production environments. Manufactured from UL94V-2 rated Nylon 6/6, they perform reliably across a temperature range of -18°C to +105°C.
What are Strain Relief Bushings for Non Round Holes?
These bushings are used to provide strain relief for cables exiting through square or rectangular panel cut-outs. Their three-finger Lockit design ensures a secure snap-fit installation without the need for tools. By preventing cable rotation, they help to reduce wear and maintain the integrity of the cable connection. Available for both flat and round cable types, they suit a wide range of electrical or industrial applications where non-round panel holes are used.
Key Features:
- Manufactured from UL94V-2 rated Nylon 6/6
- Three-finger Lockit design for secure snap fit
- Designed for square or rectangular mounting holes
- Meets UL pull-out test requirements
- Available for both round and flat cable profiles
Key Applications and Industries
- Electrical equipment using non-round knockouts
- Enclosures with rectangular panel cut-outs
- Consumer appliances and electronic assemblies
- Control systems and industrial machinery
- Pre-assembled cable harness installations
Technical Specifications :

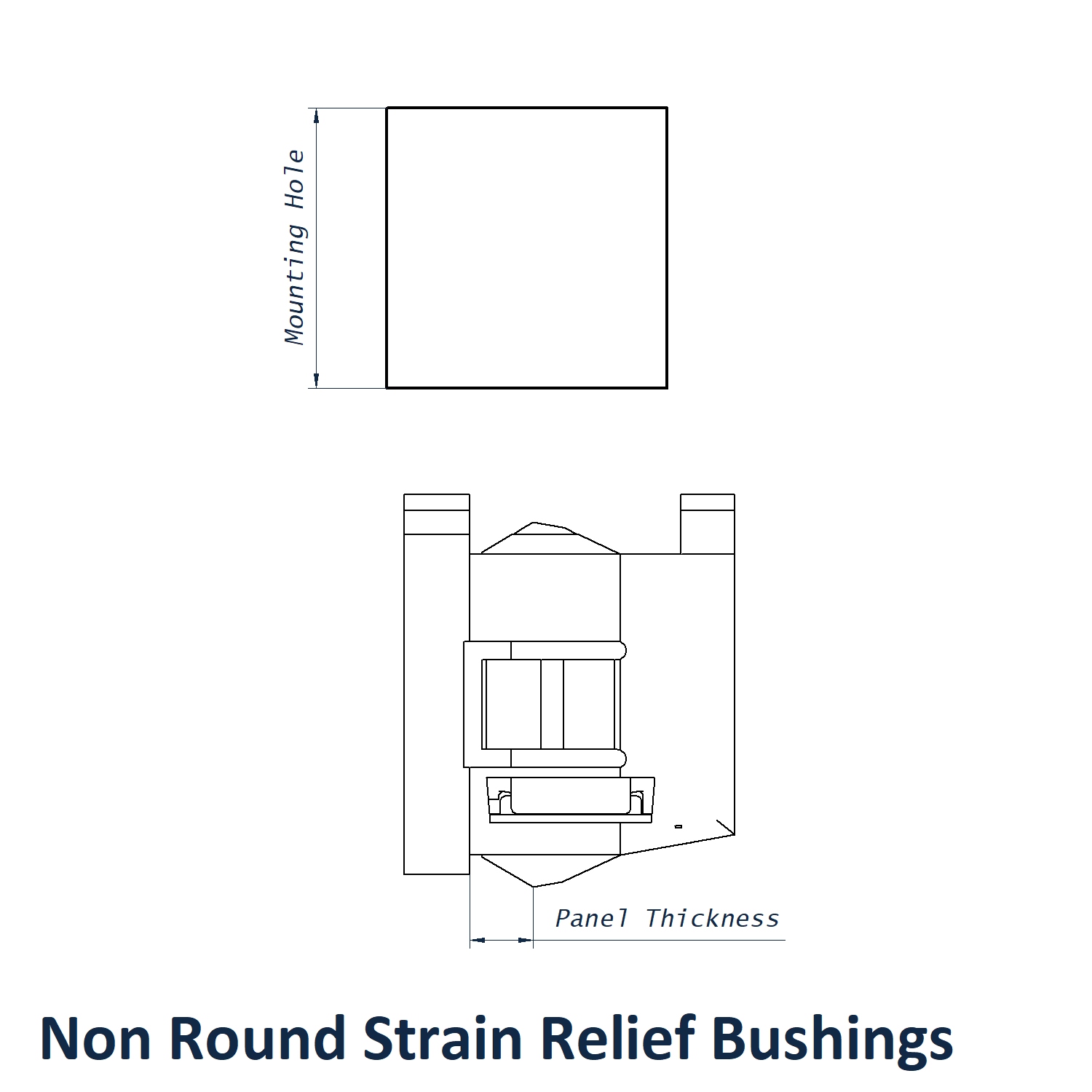

- Mounting Hole Diameter: 17.5 x 17.5mm
- Panel Thickness: 0.8 - 2.5mm
- Min Cable Diameter: 7.4mm
- Max Cable Diameter: 9.1mm
- Colour: Black
- Material: Nylon 6/6 (UL94V-2 flame rating)
- Operating temperature: -18°C to +105°C
- Fitment type: Round
Certifications:
- UL Recognised – File E15331
- Certified by CSA – File 8919
Installation Notes:
To install, align the bushing with the square or rectangular panel hole and press firmly until it snaps into place. No tools are required. Select -R- part numbers for round cable fitment or -F- for flat cable fitment.
Why Choose Vital Parts?
- UK-based supplier with fast dispatch and expert support
- Bulk discounts and trade pricing for larger orders
- Full range of cable bushings for all panel types
If you need assistance selecting the right size or would like to discuss custom options , contact our expert team at 01233 713581.
