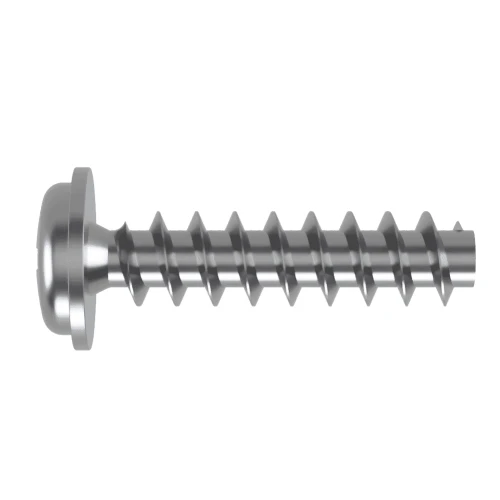

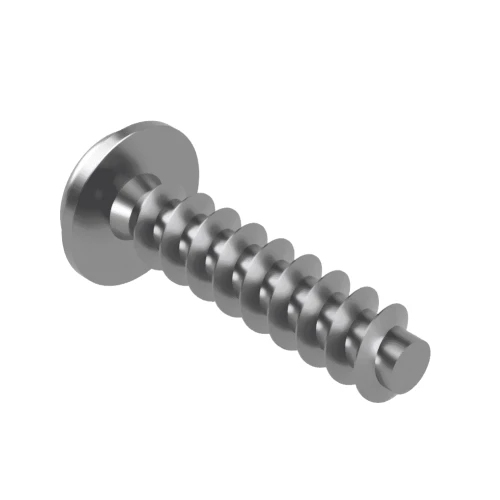

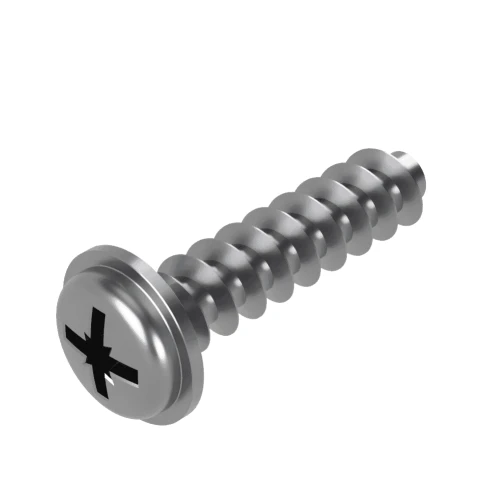

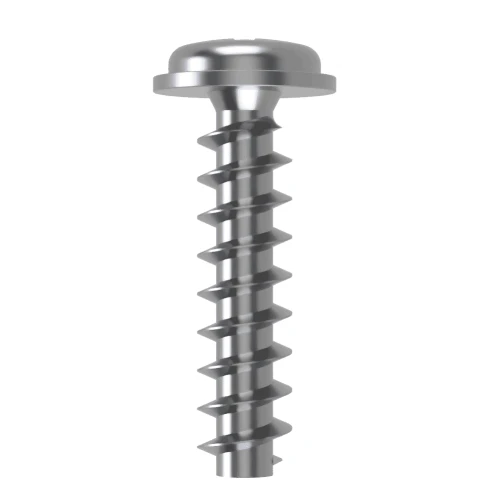

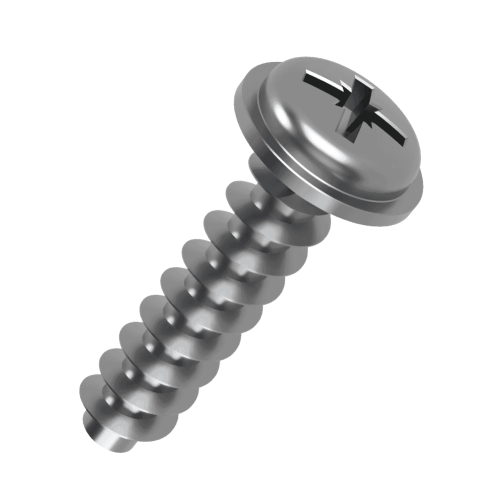

4mm x 16mm Pozi Flanged Screw for Hard Plastics (PT45) - PZ2 Drive | A2 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 49 | £0.68 | £0.81 |
| 50 - 99 | £0.41 | £0.49 |
| 100 - 249 | £0.28 | £0.33 |
| 250 - 499 | £0.20 | £0.24 |
| 500 - 999 | £0.17 | £0.20 |
| 1000 - 4999 | £0.13 | £0.16 |
| 5000 + | £0.10 | £0.12 |
£0.81 / each
.png)
Product Specification
| Thread Size | 4.0mm |
| Thread Length | 16mm |
| Material | A2 Stainless Steel |
| Head Diameter | 8.00mm |
| Head Height | 2.00mm |
| Drive | PZ2 |
| Head Style | Flanged |
Frequently Bought Together
Total Price: £0.00
4mm x 16mm Pozi Flanged PT45 Screw for Hard Plastics | A2 Stainless Steel
Designed for engineering-plastic assemblies, this 4mm x 16mm Pozi Flanged PT45 Screw uses a 45° trilobular thread form developed for harder plastics and fibre-reinforced materials. The A2 Stainless Steel fastener combines a wide Flanged head with a PZ2 Pozi drive to spread bearing pressure across a larger area of the plastic.
What Are Pozi Flanged PT45 Screws?
Pozi Flanged PT45 screws are designed for moulded or predrilled pilot holes in hard plastics and reinforced materials. The Pozi recess uses a widely available drive format while the wide head diameter distributes clamping pressure across more of the component surface.
Common Applications
- Lighting Products: Secures rigid plastic bezels, covers and housings where a broad bearing surface is beneficial.
- Production Assemblies: Provides a specialist PT45 fastener for repeatable assembly where the flange helps spread clamping stress.
- Automotive Components: Fastens rigid plastic trim and moulded parts where a broad flanged head is useful around the fixing point.
- Industrial Equipment: Fastens hard-plastic guards, covers and instrument housings on machinery and control equipment.

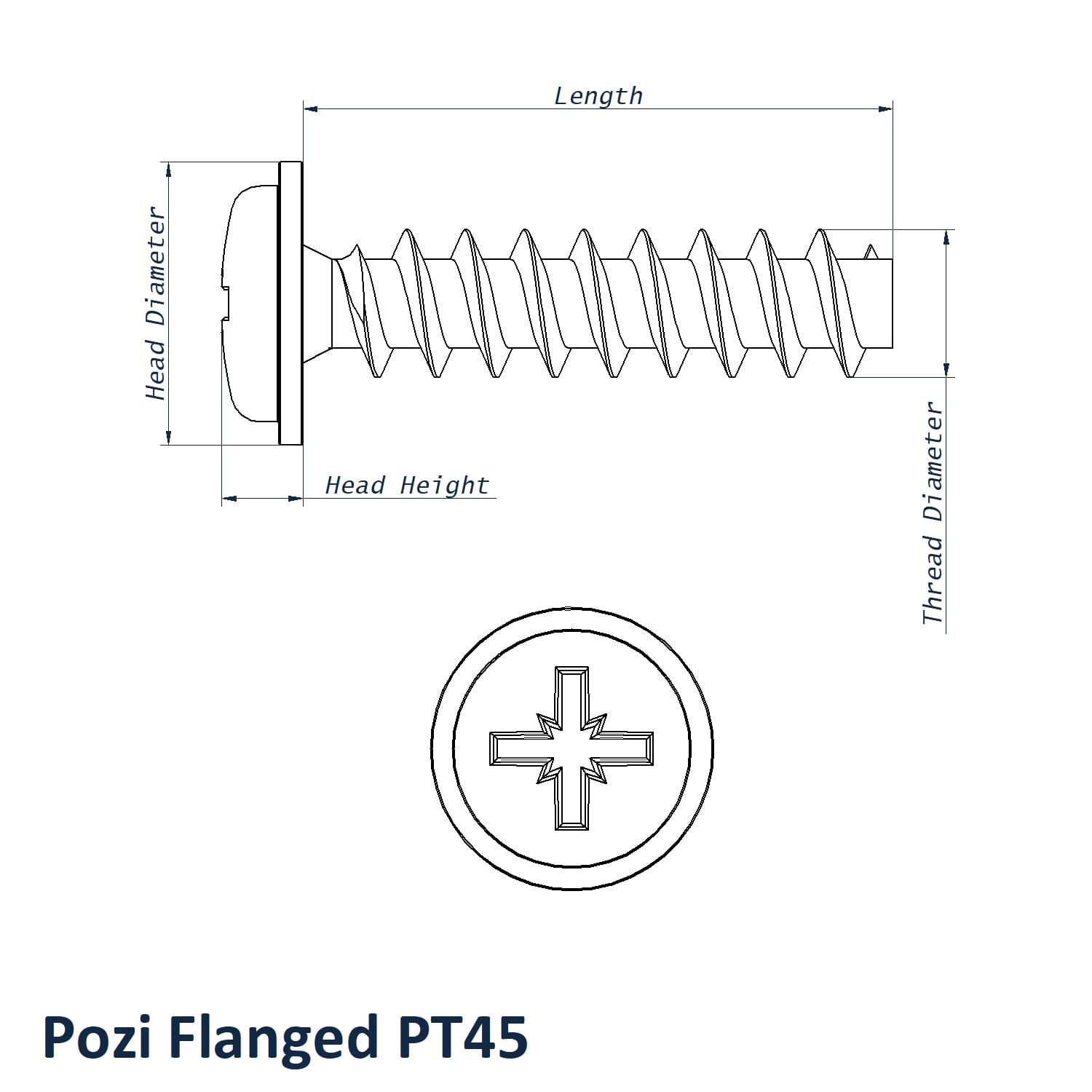

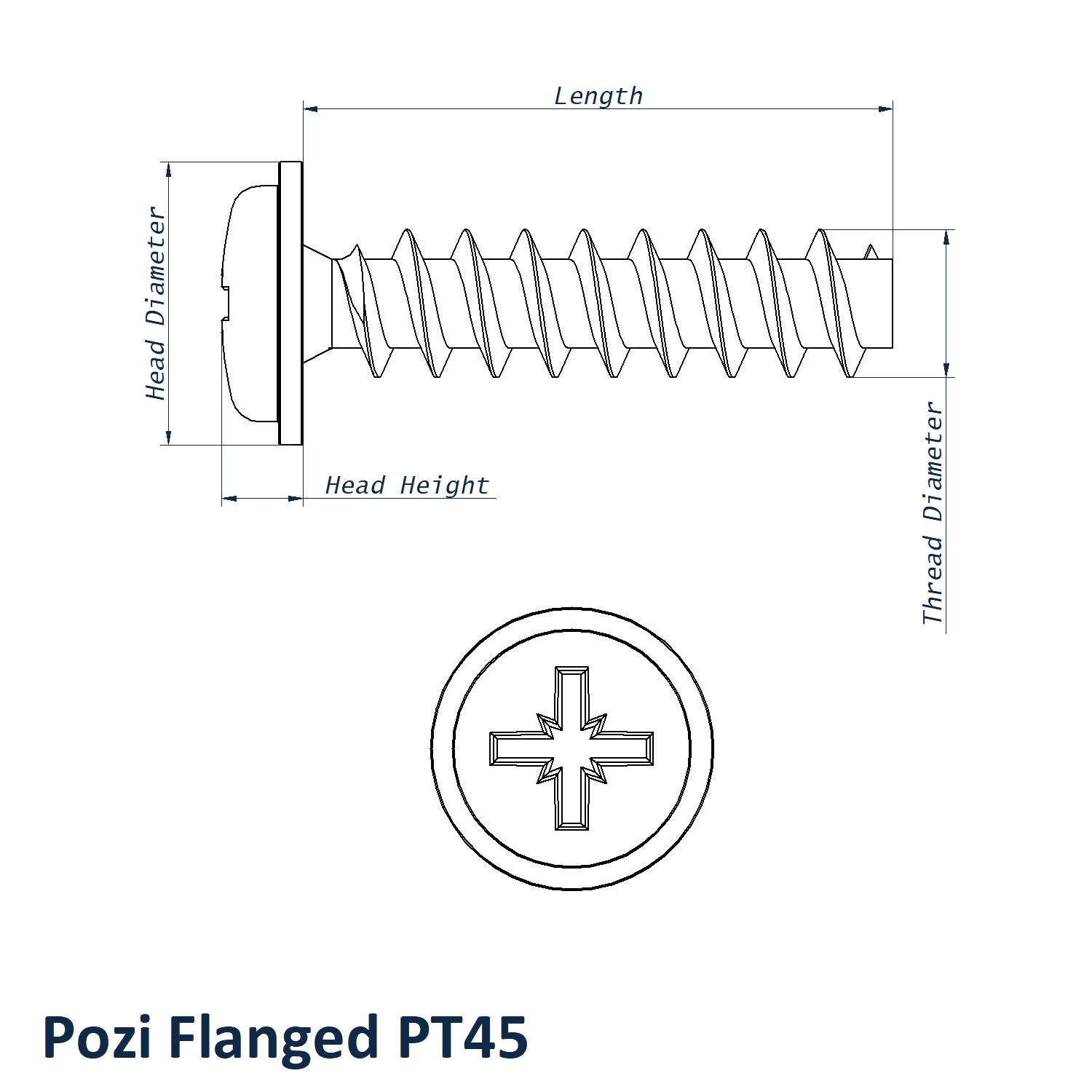

4mm x 16mm Pozi Flanged PT45 Screw Dimensions
- Thread Size: 4.0mm
- Thread Length: 16mm
- Head Diameter: 8.00mm
- Head Height: 2.00mm
- Drive: PZ2
- Material: A2 Stainless Steel
- Head Style: Flanged
Key Benefits
- 2.00mm head height matches the uploaded SKU specification.
- 45° trilobular PT45 thread form is designed for harder plastics and reinforced materials.
- The wider range also includes Bright Zinc Plated Steel, Black Zinc Plated Steel and A2 Stainless Steel options.
- 8.00mm head diameter gives the Flanged head a broad bearing surface.
Browse the full Pozi Flanged PT45 Screws for Hard Plastics category for available material and size options. You can also use our Screws for Plastic Engineering Guide for PT30/PT45 selection and installation guidance. Technical support is available on 01233 713581.
