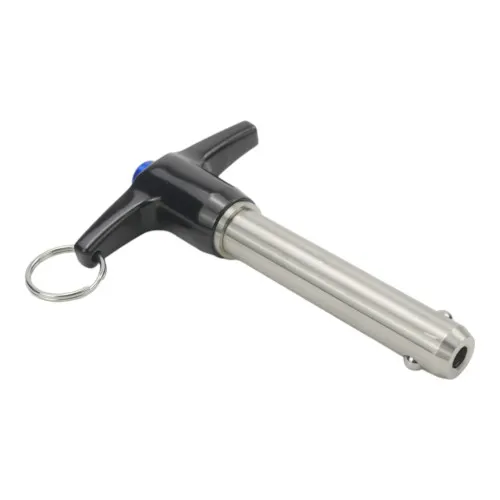

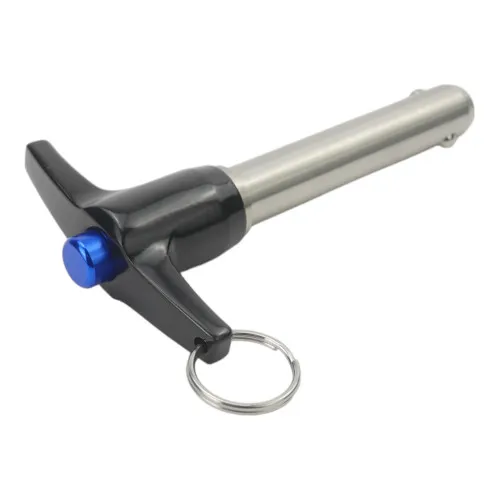

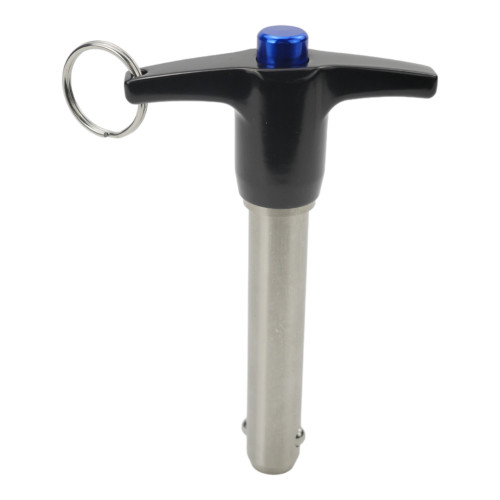

5mm x 10mm T-Handle Push Knob Detent Pin

5mm x 10mm T-Handle Push Knob Detent Pins - 303 Stainless Steel with Cast Aluminium Handle | Vital Parts - THDP001

Our T-Handle Detent Pins are made up of a push-knob and pull ring. When pulled and pressed, the internal spring mechanism compresses and retracts the ball bearings, allowing the pin to be safely and quickly removed from its seated position.

The pull ring serves two purposes: it can be used to attach a retaining chain to prevent misplacement and also acts as a secondary removal method in place of the T-handle itself.

The T-handle is manufactured from cast aluminium while the shaft and detent components are made from 303 stainless steel. This combination ensures excellent strength and corrosion resistance for long-term use in demanding applications.

What Are T-Handle Push Knob Detent Pins?

T-Handle Push Knob Detent Pins are quick release fasteners designed for tool-free operation. They are inserted into aligned holes where their spring-loaded ball detents secure the pin until released by pressing the knob. This version is ideal for environments that require repeated adjustments or secure positioning under vibration or load.

Click here to view our full Guide to Detent Pins ,showcasing the different types, their functions and how to use them effectively across various applications.

Key Features:

• Quick release detent mechanism
• Effective retention during vibration and movement
• Corrosion resistant stainless steel body
• Cast aluminium T-handle for easy manual operation
• RoHS, REACH, Conflict Materials and California Prop 65 compliant

Common Applications and Industries

• HVAC systems - for securing ducting and airflow components
• Industrial machinery - quick change parts and tooling access
• Maintenance platforms and mobile equipment
• Transport and logistics hardware
• Jigs, fixtures and workstations requiring repetitive use

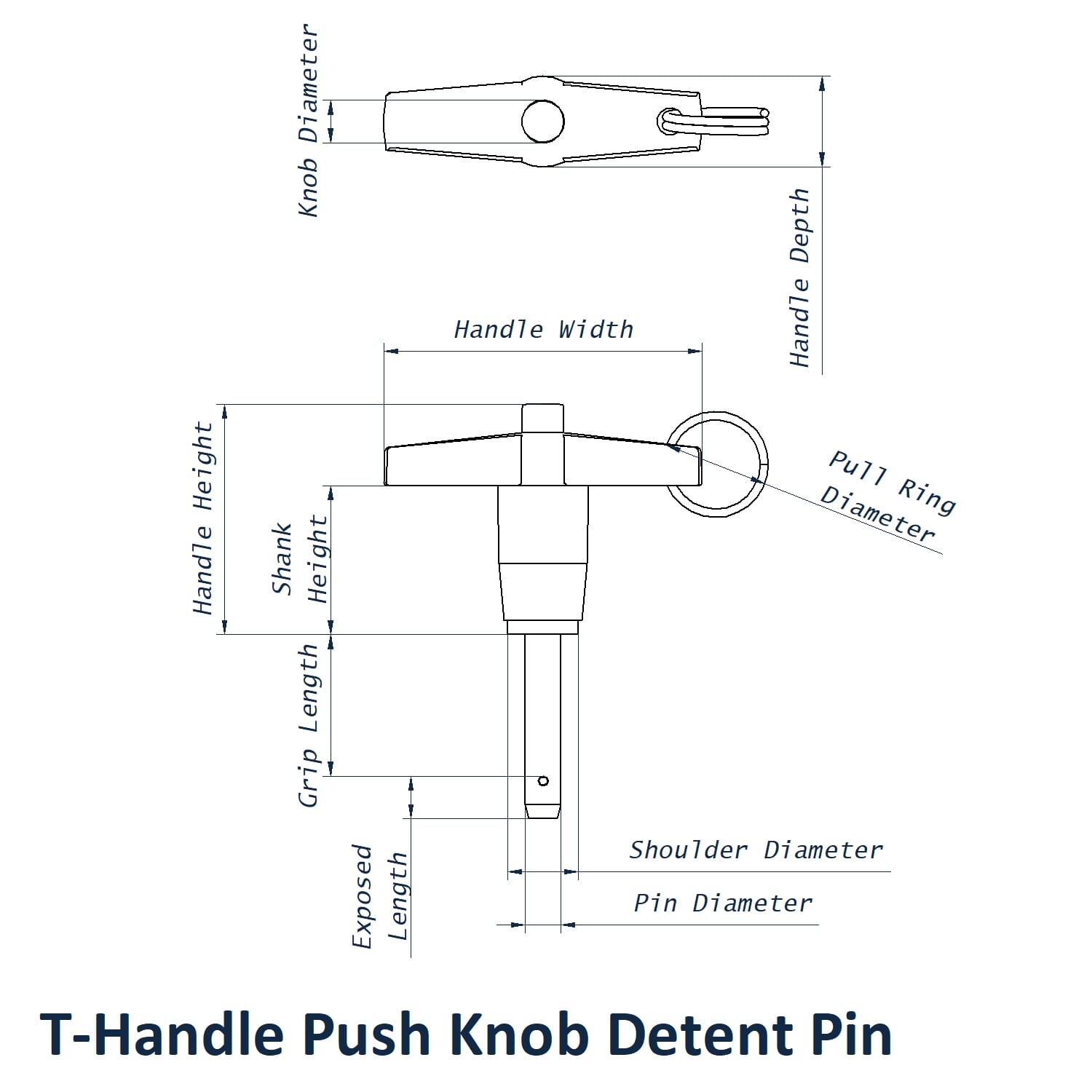

Technical Specifications :

• Pin Diameter : 5mm
• Grip Length : 10mm
• Handle Height : 25mm
• Handle Width : 45mm
• Handle Depth : 18mm
• Exposed Length : 12mm
• Knob Diameter : 20mm
• Shoulder Diameter : 6mm
• Shank Height : 8mm
• Pull Ring Diameter : 12mm

Installation Notes:

This variant is designed to be inserted into a hole 0.1mm larger than the pin body to ensure a secure yet removable fit.

Why Choose Vital Parts?

• UK-based supplier with fast dispatch and expert support
• Bulk discounts and trade pricing for larger orders
• Wide selection of detent pin styles and configurations

If you need assistance selecting the right size or would like to discuss custom options , contact our expert team at 01233 713581.
