M16 x 1.5mm Threaded Stainless Steel Cable Gland (IP69) 4.5 - 10mm Cable | Marine Grade A4
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 4 | £48.37 | £58.04 |
| 5 - 24 | £47.40 | £56.88 |
| 25 - 49 | £46.45 | £55.74 |
| 50 + | £45.52 | £54.63 |
£58.04 / each
Product Specification
| Thread Size | M16 x 1.5mm |
| Cable Diameter | 4.5 - 10.0mm |
| Thread Length | 5.0mm |
| Total Length | 26 - 34mm |
| Style | Straight-through |
| Material | A4 Stainless Steel |
| Colour/Finish | Self Colour |
| IP Rating | IP69 |
Frequently Bought Together
Total Price: £0.00

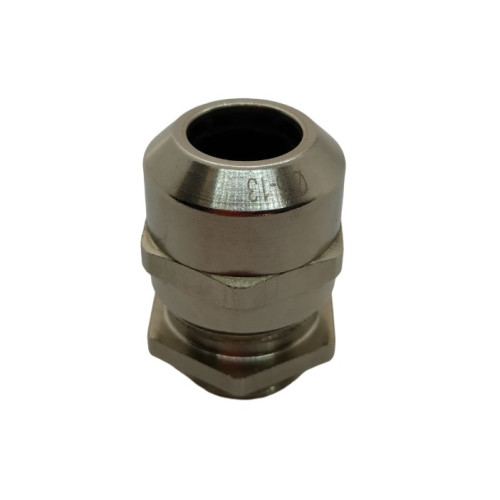

M16 x 1.5mm Marine Grade A4 Stainless Steel Threaded Cable Gland – 4.5 - 10mm Cable (IP69)
Use this stainless steel cable gland to bring a 4.5 - 10mm cable through a compatible M16 x 1.5mm entry in instrument housings. The straight-through arrangement provides a direct cable route while the 5mm threaded section makes the fitting suitable for a corresponding threaded opening. Listed protection: IP69.
What Are Threaded Stainless Steel Cable Glands?
Threaded Stainless Steel Cable Glands are cable entry fittings positioned in a matching threaded opening. A cable passes through the gland and the compression mechanism grips the outer cable sheath to help secure the entry. This version is made from A4 Stainless Steel with a Self Colour finish and uses the M16 x 1.5mm thread format.
Common Applications
- Control panels: Guide cables with a 4.5 - 10mm outer diameter into electrical control panels using a compatible M16 x 1.5mm entry.
- Machine enclosures: Provide a defined straight-through cable entry on machinery with a matching metric mounting thread.
- Electrical cabinets: Organise cable entry points in distribution or automation cabinets while selecting the stated IP69 gland.
- Instrumentation: Route instrument or sensor leads through a correctly sized cable entry in an equipment housing.

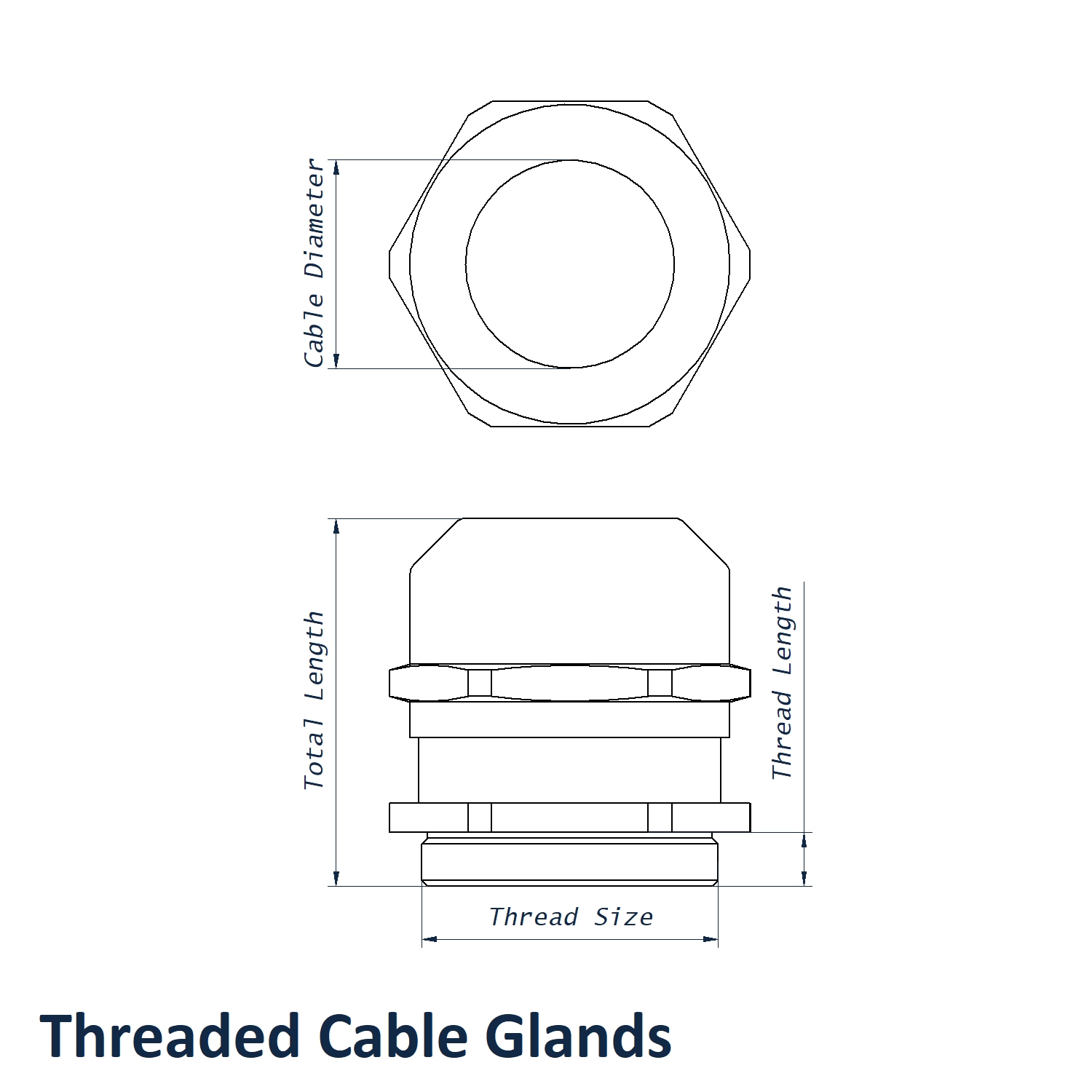

M16 x 1.5mm Threaded Stainless Steel Cable Gland Dimensions
- Thread Size: M16 x 1.5mm
- Cable Diameter: 4.5 - 10.0mm
- Thread Length: 5.0mm
- Total Length: 26 - 34mm
- IP Rating: IP69
- Style: Straight-through
- Material: A4 Stainless Steel
- Colour/Finish: Self Colour
Key Benefits
- Accepts the specified 4.5 - 10mm cable diameter range for accurate gland selection.
- Provides a 5mm thread length for checking panel entry compatibility.
- A4 Stainless Steel construction with self colour appearance for metal cable-entry fittings.
- IP69 ingress protection classification for the stated gland design.
Browse more stainless steel cable entry fittings to compare thread connections and cable diameter options. If you need help selecting the correct size, call us on 01233 713581.
