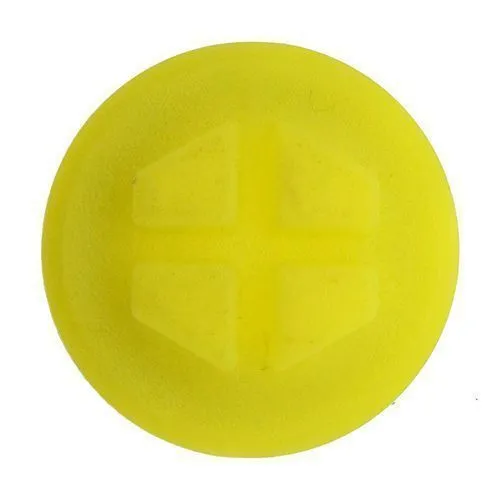

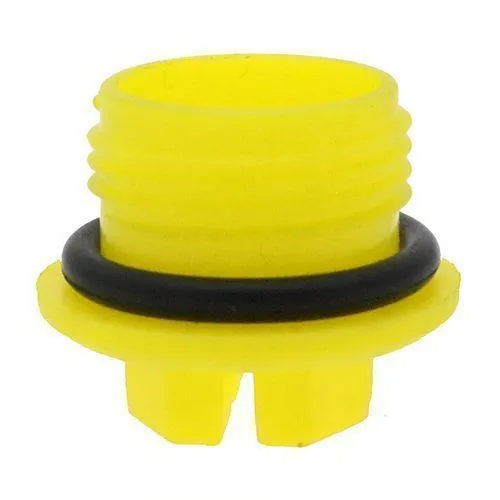

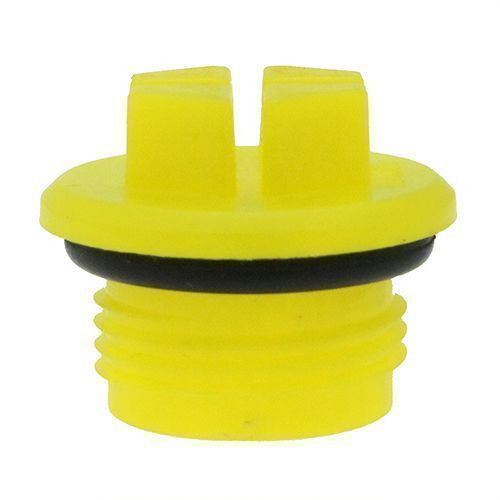

1/2in (20TPI) UNF Threaded Sealing Plug (Quick Fit Connector) - Yellow | HDPE
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 1 | £0.12 | £0.14 |
| 2 - 99 | £0.12 | £0.14 |
| 100 - 499 | £0.11 | £0.13 |
| 500 - 999 | £0.10 | £0.12 |
| 1000 - 4999 | £0.09 | £0.11 |
| 5000 + | £0.08 | £0.10 |
Product Specification
| Thread Type | UNF |
| Thread Size | 1/2" x 20 |
| Head Size | 19.0mm |
| Material | HDPE |
| Length | 20.9mm |
| Colour | Yellow |
Frequently Bought Together
Total Price: £0.00
1/2" x 20 UNF Threaded Sealing Plug | Yellow HDPE
Ideal for fine-thread protection, this 1/2" x 20 UNF sealing plug helps keep machined ports cleaner before final assembly or pressure testing. It is a practical UNF thread protector for temporary protection.
Its bright yellow colour makes protected UNF ports easy to spot during quality checks, packing and maintenance inspections. This version combines a 20.9mm length with a 19.0mm head size, giving a clear size reference for matching against the threaded port.
Common Applications
- Inspection station port identification
- Bulk component storage and handling
- Protective covering for OEM assemblies
- Reducing contamination in fluid equipment

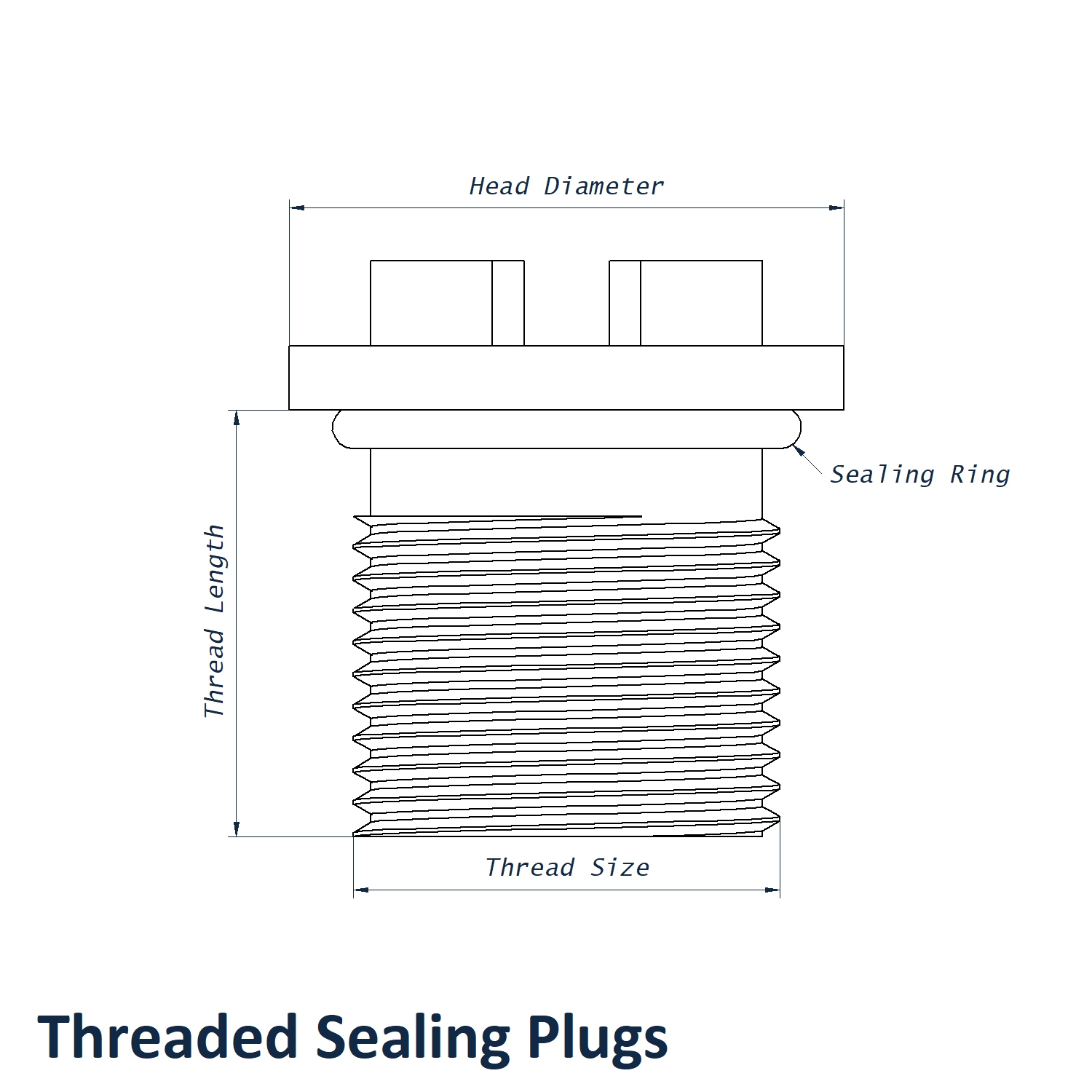

1/2" x 20 UNF Threaded Sealing Plug Dimensions
- Thread Size: 1/2" x 20
- Length: 20.9mm
- Head Size: 19.0mm
- Colour: Yellow
- Material: HDPE
- Thread Type: UNF
Threaded Sealing Plug Selection
These plugs are commonly chosen when a visible, removable thread closure is needed. The yellow colour helps identify protected ports during production checks, while the threaded body helps the plug locate into the matching component.
View our full Threaded Sealing Plugs range.
Product Support and Trade Orders
For bulk orders, sample checks or help choosing the right threaded sealing plug, the Vital Parts team can be contacted on 01233 713581. We can support both one-off maintenance needs and repeat production supply.
