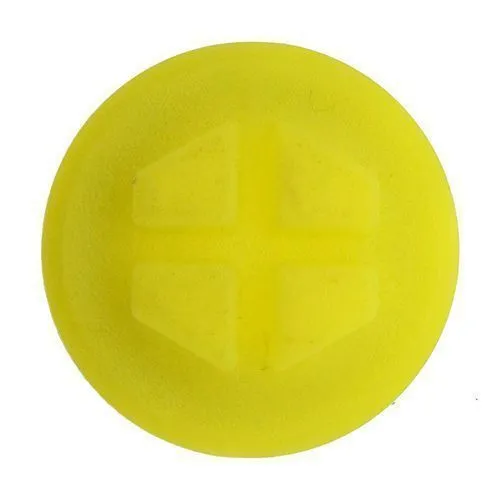

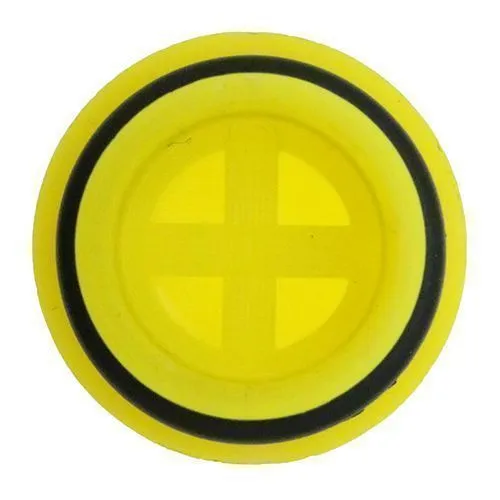

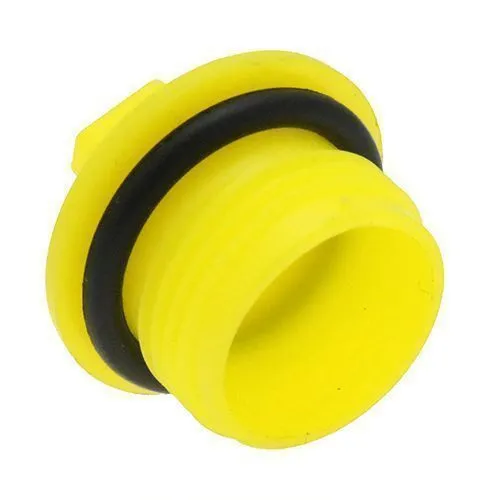

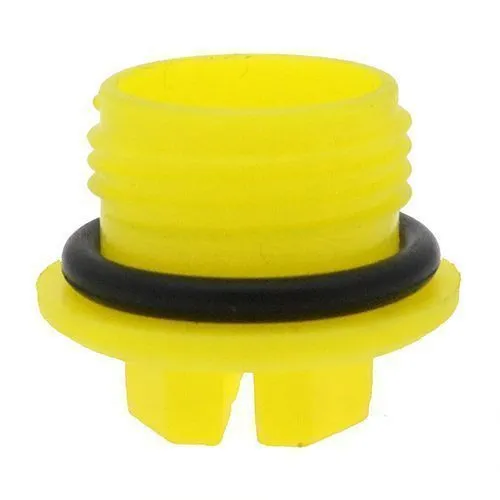

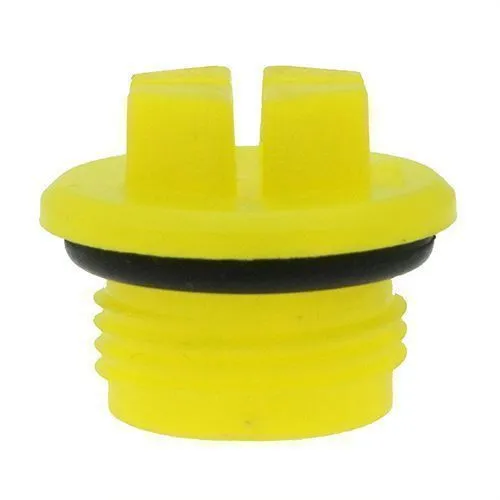

5/8in (18TPI) UNF Threaded Sealing Plug (Quick Fit Connector) - Yellow | HDPE
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 1 | £0.20 | £0.24 |
| 2 - 99 | £0.18 | £0.22 |
| 100 - 499 | £0.17 | £0.20 |
| 500 - 999 | £0.16 | £0.19 |
| 1000 - 4999 | £0.14 | £0.17 |
| 5000 + | £0.13 | £0.16 |
Product Specification
| Thread Type | UNF |
| Thread Size | 5/8" x 18 |
| Head Size | 22.0mm |
| Material | HDPE |
| Length | 20.9mm |
| Colour | Yellow |
Frequently Bought Together
Total Price: £0.00
5/8" x 18 UNF Threaded Sealing Plug | Yellow HDPE
Frequently specified for UNF thread protection, this yellow HDPE plug helps reduce dirt ingress and thread damage in demanding service environments. The wording and fit make it suitable where teams need a HDPE UNF plug rather than a permanent metal plug.
Used on fine-thread fittings, this yellow HDPE plug supports clean handling of automotive, hydraulic and precision-engineered assemblies. This version combines a 20.9mm length with a 22.0mm head size, giving a clear size reference for matching against the threaded port.
Common Applications
- Protecting machined threads in engineering workshops
- Closing open ports on pneumatic assemblies
- Preventing dirt ingress during transport
- Preparing components for inspection or packing

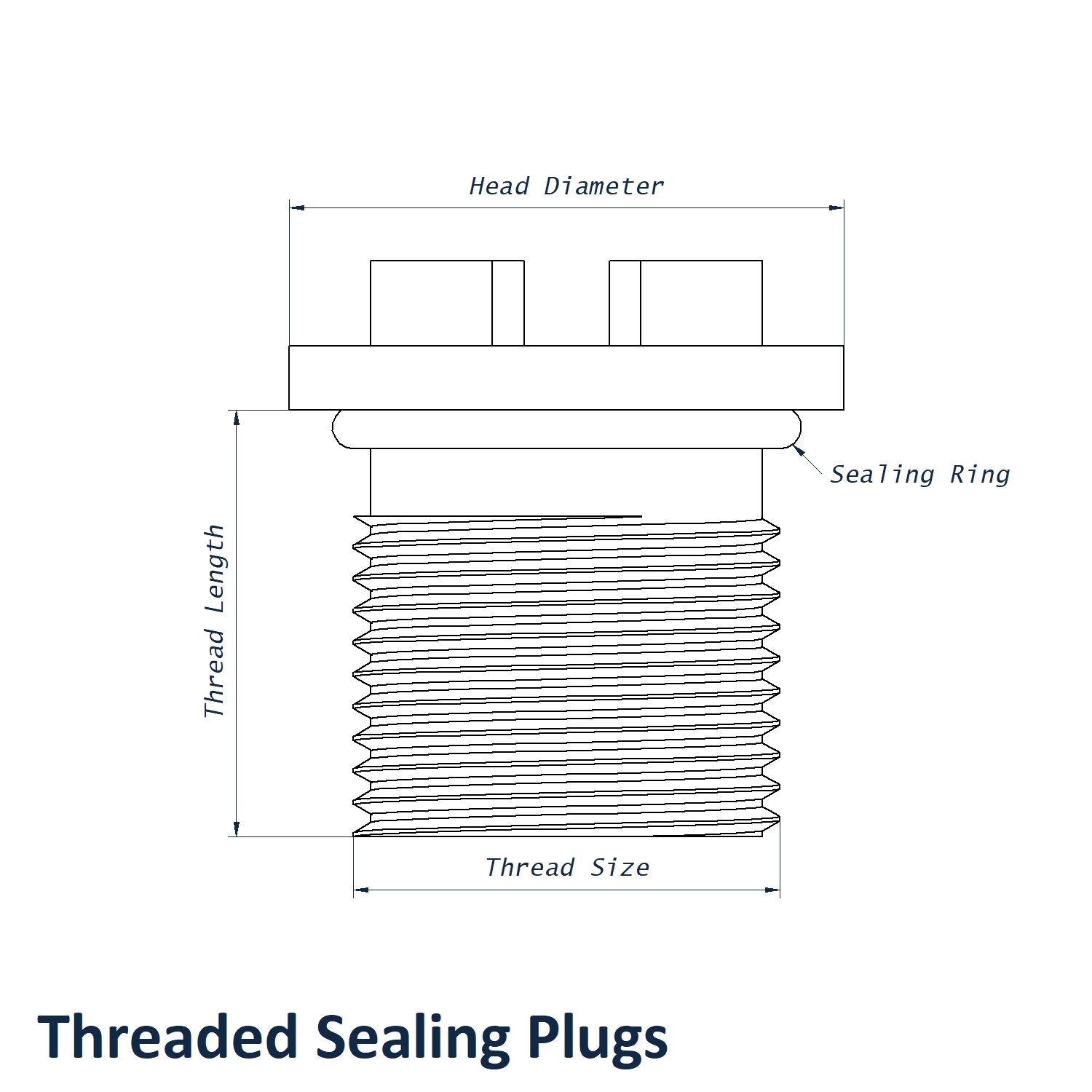

5/8" x 18 UNF Threaded Sealing Plug Dimensions
- Thread Size: 5/8" x 18
- Length: 20.9mm
- Head Size: 22.0mm
- Colour: Yellow
- Material: HDPE
- Thread Type: UNF
Threaded Sealing Plug Selection
For best results, match the plug to the thread form shown on the fitting or port. These yellow sealing plugs are intended for temporary protection and sealing, especially where threads need to remain clean before installation or testing.
View our full Threaded Sealing Plugs range.
Product Support and Trade Orders
For advice on BSP, UNF or Metric thread selection, contact the Vital Parts team on 01233 713581. We can help confirm sizing, discuss larger quantities and support repeat purchasing for maintenance or production use.
