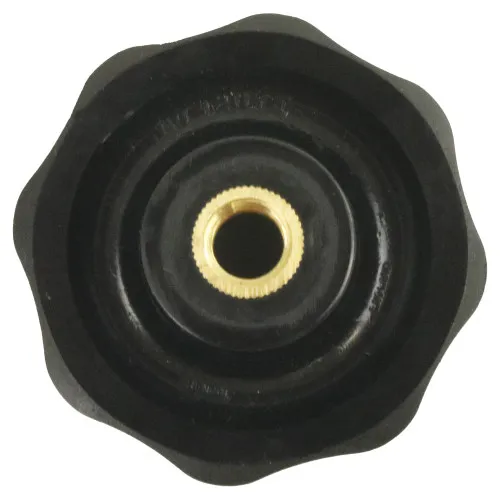

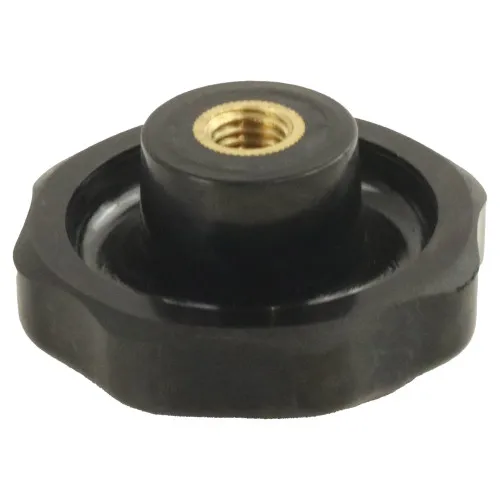

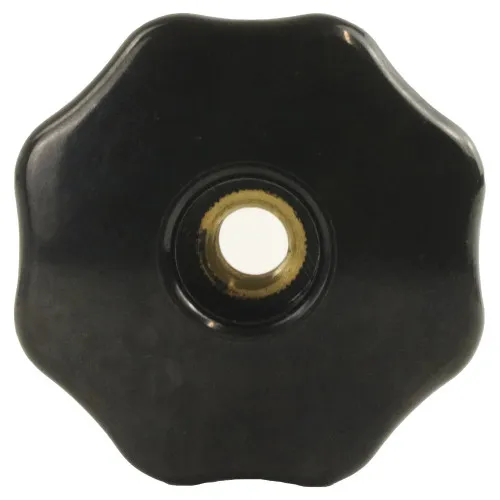

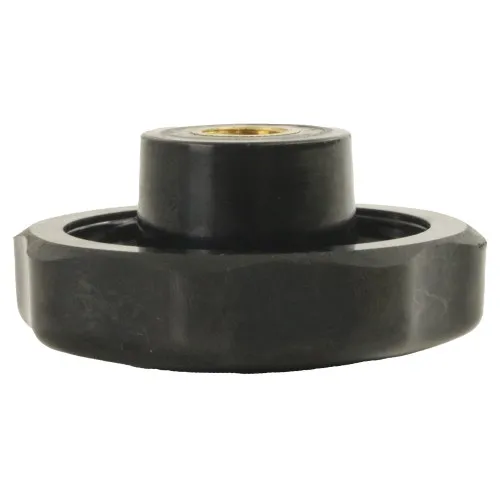

57mm x M10 Duroplast Through Threaded Handwheel - 8 Lobed
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 0 - 24 | £4.29 | £5.15 |
| 25 - 49 | £4.29 | £5.15 |
| 50 - 99 | £3.90 | £4.68 |
| 100 - 499 | £3.55 | £4.26 |
| 500 + | £2.93 | £3.52 |
Product Stock

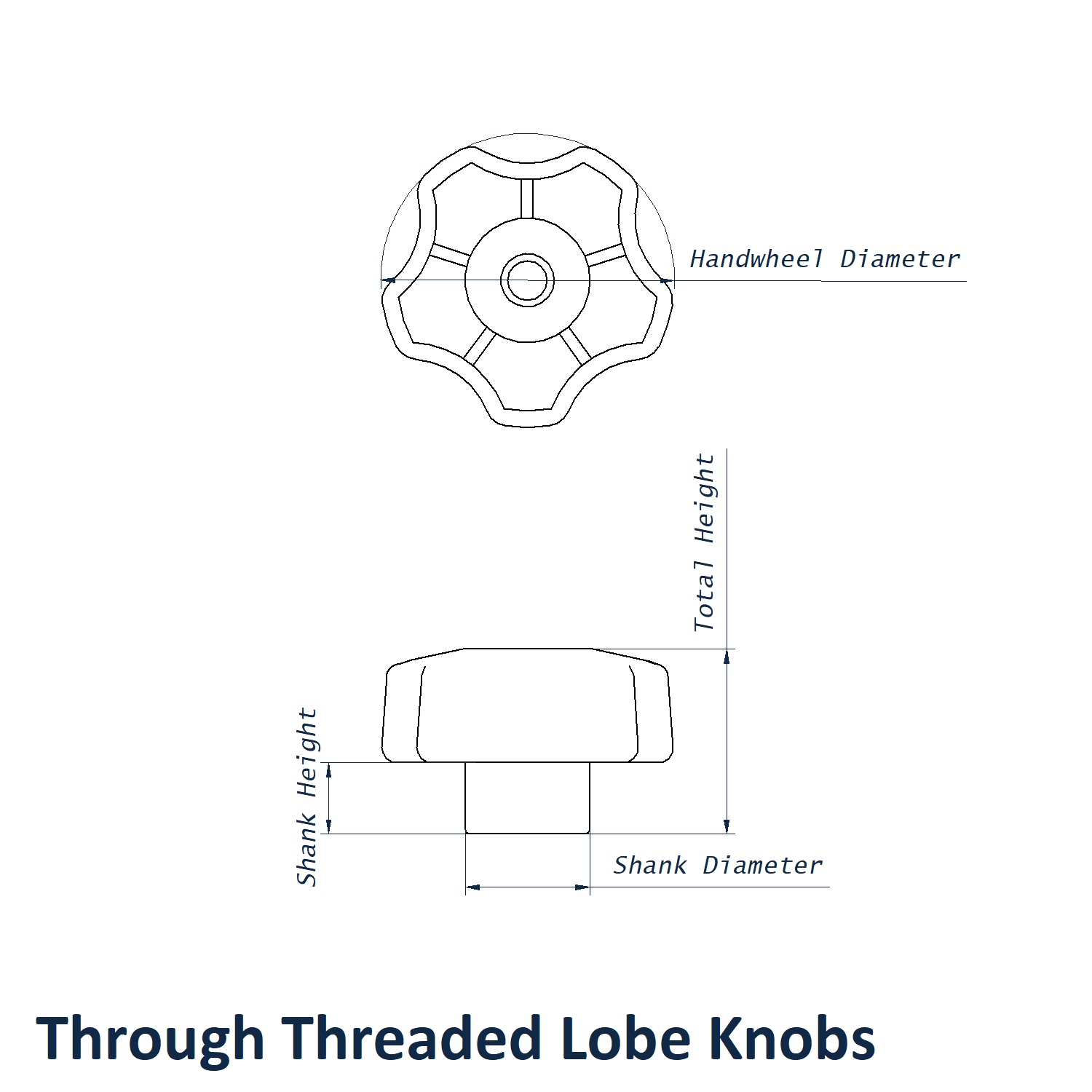

| Product Specifications | HW106 |
|---|---|
| Handwheel Diameter | 57mm |
| Thread | M10 |
| Type | Through Threaded |
| Total Height | 27mm |
| Shank Height | 12mm |
| Shank Diameter | 25mm |
| Lobes | 8 |
| Handle Material | Duroplast |
| Thread Material | Brass |
| Colour/Finish | Black/Gloss |
Same Day Dispatch Available
Order by 4pm (UK) for same day dispatch (Monday – Thursday, 2pm Friday). Next Day or Standard Delivery available via DHL or Royal Mail.
Frequently Bought Together
Total Price: £0.00
Product Description
57mm x M10 Brass Through Threaded Handwheel – 27mm Total Height & 8 Lobes | Vital Parts – HW106
Our Through Threaded Handwheels offer a simple and effective clamping solution for industrial and commercial applications. Designed for projects that require adjustable fixing without tools these handwheels feature a continuous internal thread that allows for variable thread engagement and limitless clamping length.
What are Through Threaded Handwheels?
Through Threaded Handwheels are round operating knobs or handles with an internally threaded through hole. Unlike standard female threads that stop at a closed end through threads run completely through the hub allowing a male threaded stud or bolt to pass freely. This makes them ideal for applications requiring adjustable depth clamping or extended threaded engagement without restriction.
Key Features:
- Continuous through thread design for variable adjustment
- Toolless installation and removal for quick setup
- Durable construction for repeated use
- Comfortable ergonomic grip for control and precision
- Attractive appearance suitable for visible or aesthetic assemblies
Key Applications and Industries
Through Threaded Handwheels are used across manufacturing mechanical engineering furniture production and laboratory equipment. They are particularly useful for clamping fixing and adjusting components where thread length varies or needs to pass completely through a part. Their replaceable design and smooth finish make them ideal for applications where appearance and hygiene matter such as in medical and food processing environments.
Technical Specifications
- Handwheel Diameter: 57mm
- Thread: M10
- Total Height: 27mm
- Shank Height: 12mm
- Shank Diameter: 25mm
- Lobes: 8
- Handle Material: Duroplast
- Thread Material: Brass
- Colour/Finish: Black/Gloss
- Thread Type: Through internal thread
- Finish Options: Natural Black Polished or Anodised
- Installation: Manual toolless fitting
- Operating Temperature: Dependent on material Nylon up to 120°C Stainless Steel up to 300°C
- Maintenance: Replaceable and easy to clean
Benefits:
- Limitless clamping depth thanks to through thread design
- Fast and simple adjustment without tools
- Strong durable construction for demanding environments
- Attractive finish for aesthetic assemblies
- Available in multiple materials to suit diverse applications
Variants and Alternatives
Alongside Through Threaded Handwheels we also supply Male Threaded and Female Threaded variants to match different assembly requirements. If you need an alternative thread size material or finish we can provide custom quotations for non standard parts to fit your project.
Why Choose Vital Parts?
We stock a wide range of Through Threaded Handwheels in multiple sizes and materials ready for fast UK delivery. Each handwheel is manufactured to precise standards to ensure consistent fitment strength and reliability across a range of industrial uses.
- Fast UK delivery on stocked sizes
- Technical support to help specify the correct part
- Custom options available for bespoke requirements
