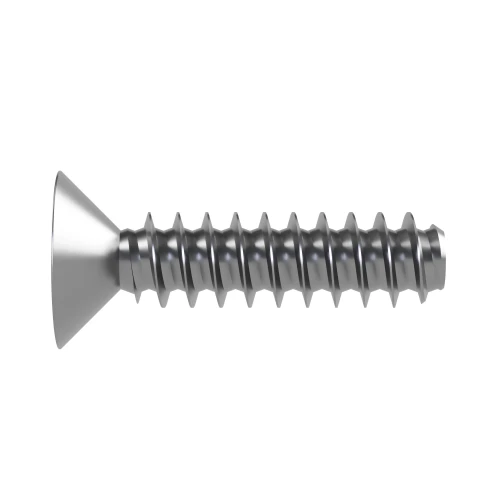

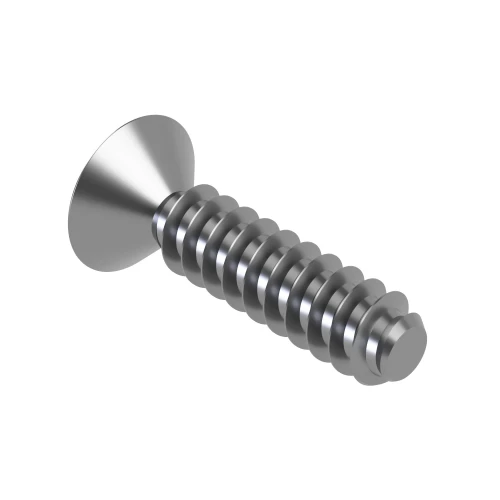

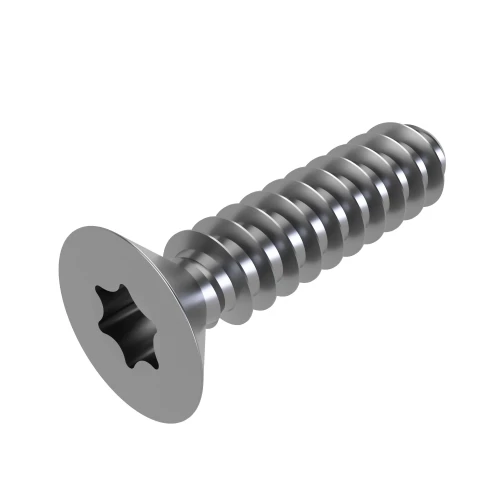

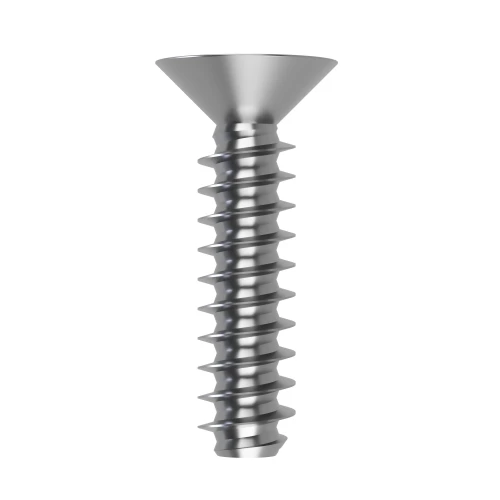

3.5mm x 12mm Torx Countersunk Screw For Soft Plastics (PT30) | A2 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 49 | £0.48 | £0.58 |
| 50 - 99 | £0.29 | £0.35 |
| 100 - 249 | £0.19 | £0.23 |
| 250 - 499 | £0.14 | £0.17 |
| 500 - 999 | £0.12 | £0.14 |
| 1000 - 4999 | £0.10 | £0.12 |
| 5000 + | £0.07 | £0.09 |
£0.58 / each
.png)
Product Specification
| Thread Size | 3.5mm |
| Thread Length | 12mm |
| Material | A2 Stainless Steel |
| Head Diameter | 7.3mm |
| Head Height | 2.80mm |
| Drive | T15 |
| Head Style | Countersunk |
Frequently Bought Together
Total Price: £0.00
3.5mm x 12mm Torx Countersunk PT30 Screw For Soft Plastics | A2 Stainless Steel
This 3.5mm x 12mm Torx Countersunk PT30 screw is engineered for fastening into softer plastics and thermoplastic components. The PT30 thread form is designed to create strong engagement in plastic substrates while the countersunk head provides a flush installed finish. Featuring a 7.3mm head diameter, this specific size is suited to applications requiring reliable retention and controlled assembly performance.
Manufactured from A2 stainless steel (304 grade), this fixing offers corrosion resistance for outdoor and damp environments. The screw incorporates a 2.80mm head height and T15 Torx drive which helps improve torque transfer during installation. The 3.5mm thread size combined with the 12mm length creates a variant suited to its own assembly and holding requirements.
Common Applications
- Plastic housings and enclosures
- Moulded component assemblies
- Consumer product manufacture
- Electrical and electronic equipment

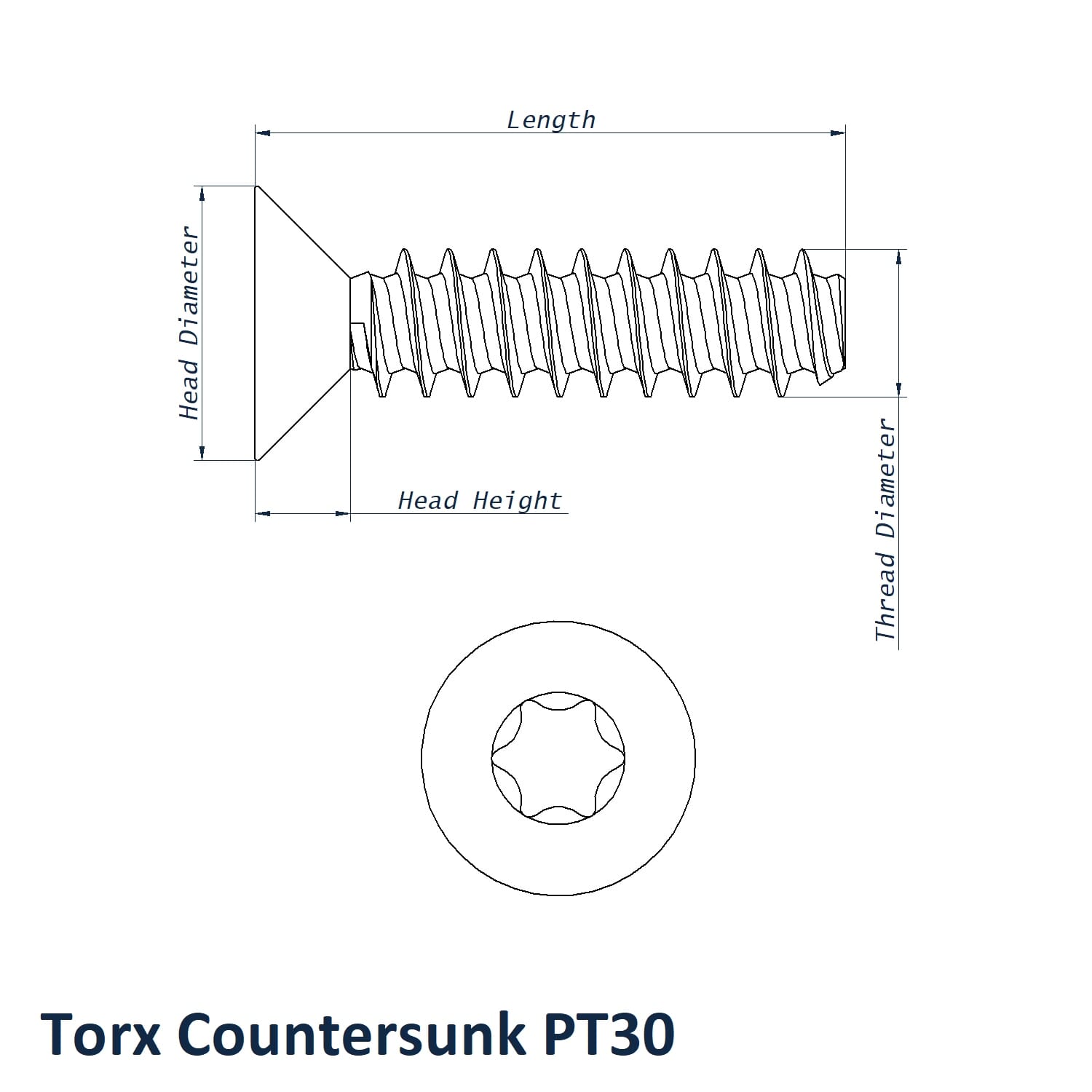

3.5mm Torx Countersunk PT30 Screw For Soft Plastics Dimensions
- Thread Size: 3.5mm
- Thread Length: 12mm
- Head Diameter: 7.3mm
- Head Height: 2.80mm
- Drive: T15
- Material: A2 Stainless Steel
- Head Style: Countersunk
View our full Screws for Plastic Range or browse our Fastener collection.
Need help or buying in bulk?
For technical support, sizing guidance or volume pricing enquiries call 01233 713581.
