3.5mm x 12mm Torx Countersunk Screw for Hard Plastics (PT45) - T10 Drive | A2 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 49 | £0.43 | £0.52 |
| 50 - 99 | £0.26 | £0.31 |
| 100 - 249 | £0.17 | £0.21 |
| 250 - 499 | £0.13 | £0.16 |
| 500 - 999 | £0.11 | £0.13 |
| 1000 - 4999 | £0.08 | £0.10 |
| 5000 + | £0.07 | £0.08 |
£0.52 / each
.png)
Product Specification
| Thread Size | 3.5mm |
| Thread Length | 12mm |
| Material | A2 Stainless Steel |
| Head Diameter | 6.30mm |
| Head Height | 1.65mm |
| Drive | T10 |
| Head Style | Countersunk |
Frequently Bought Together
Total Price: £0.00

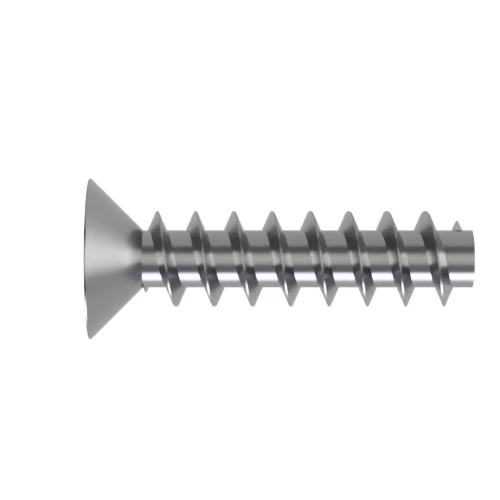

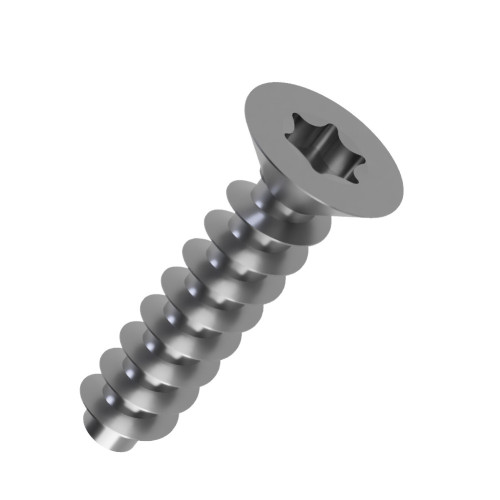

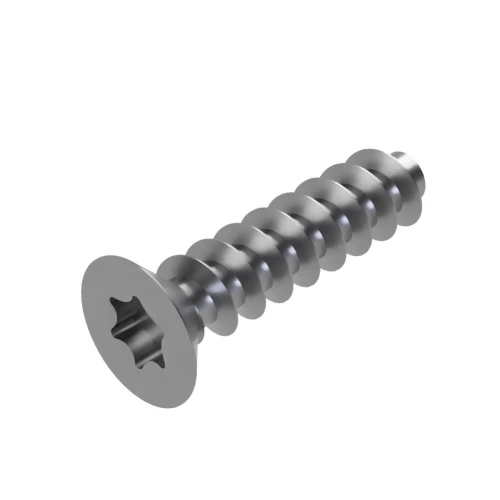

3.5mm x 12mm Torx Countersunk PT45 Screw for Hard Plastics | A2 Stainless Steel
Commonly used for food and catering equipment components, this 3.5mm x 12mm PT45 plastic fastener features a Countersunk head and T10 Torx drive. The A2 Stainless Steel screw forms its thread within a correctly sized moulded or predrilled pilot hole and finishes flush in a matching recess.
What Are Torx Countersunk PT45 Screws?
A Torx Countersunk PT45 screw provides a middle ground between a sharp 30° plastic thread and a conventional self tapping screw. Its shorter 45° thread and trilobular form make it particularly useful where secure engagement, flush installation and a strong drive-to-strip ratio are required.
Common Applications
- Outdoor Equipment: Provides an A2 Stainless Steel fastening option for suitable exterior hard-plastic assemblies.
- Fibre-Reinforced Plastics: Provides a specialised thread-forming fastening option for compatible reinforced plastic parts.
- Appliance Housings: Provides a dedicated fastening method for rigid plastic covers, panels and moulded components.
- Lighting Products: Secures rigid plastic bezels, covers and housings where a flush finished face is useful.

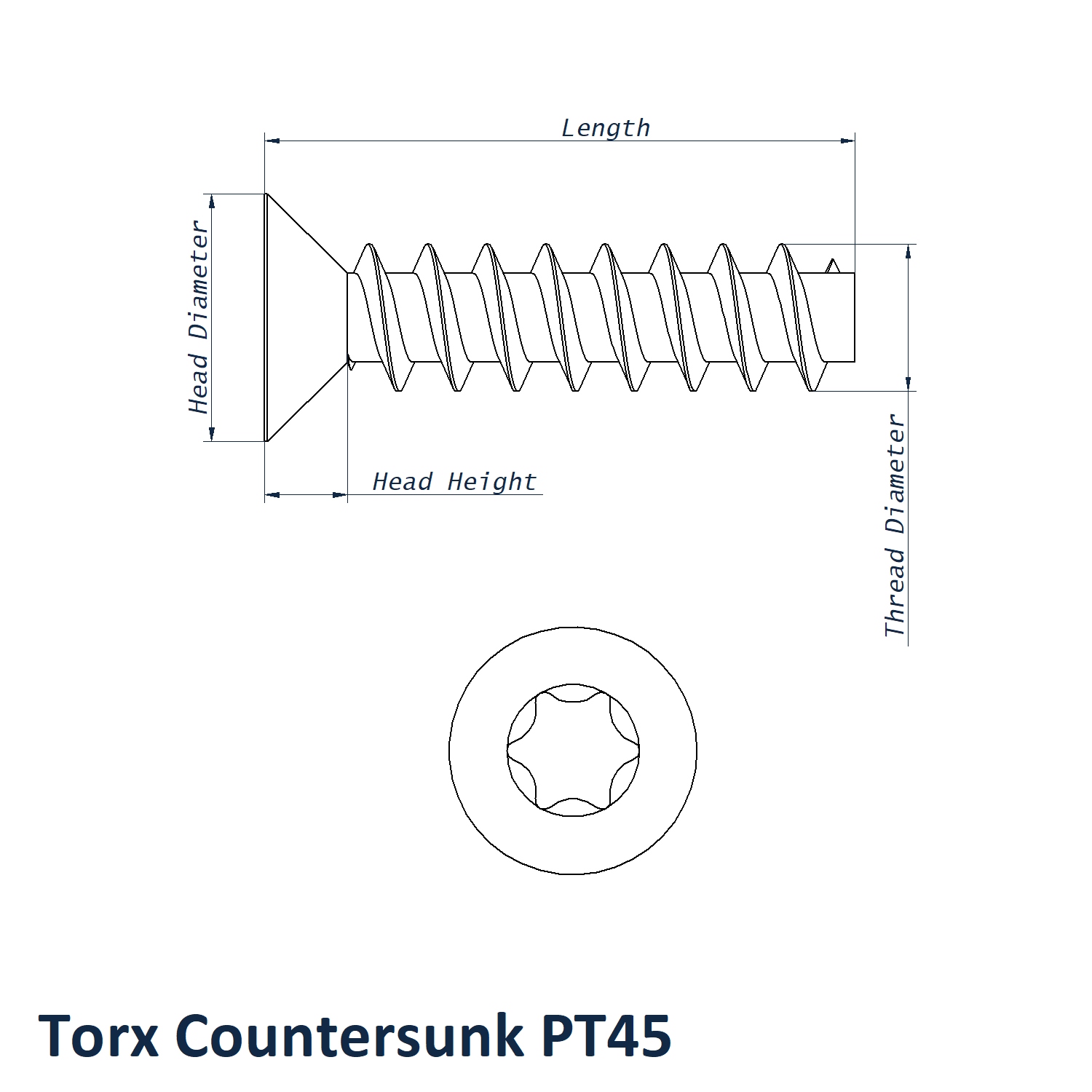

3.5mm x 12mm Torx Countersunk PT45 Screw Dimensions
- Thread Size: 3.5mm
- Thread Length: 12mm
- Head Diameter: 6.30mm
- Head Height: 1.65mm
- Drive: T10
- Material: A2 Stainless Steel
- Head Style: Countersunk
Key Benefits
- A2 Stainless Steel construction provides improved corrosion resistance for suitable demanding environments.
- The engineering guide provides PT45 pilot-hole tables, boss-sizing guidance and thread-selection information.
- 6.30mm head diameter and 1.65mm head height match the uploaded SKU specification.
- PT45 geometry provides a strong drive-to-strip ratio for compatible hard-plastic assemblies.
See related dimensions in the Torx Countersunk PT45 Screw range. If you are designing a hard-plastic boss, our Engineering Guide to Screws for Plastic covers pilot-hole ratios, boss sizing and PT45 tolerances. For help, call 01233 713581.
