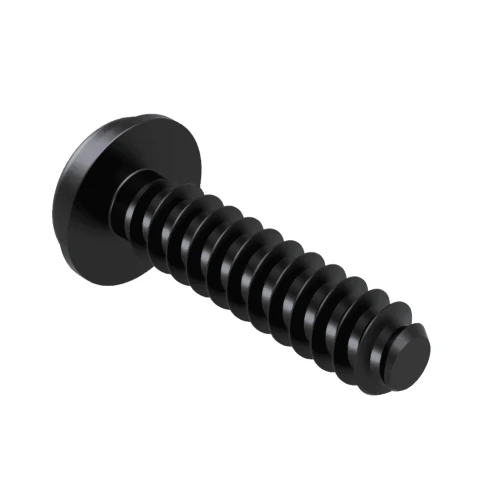

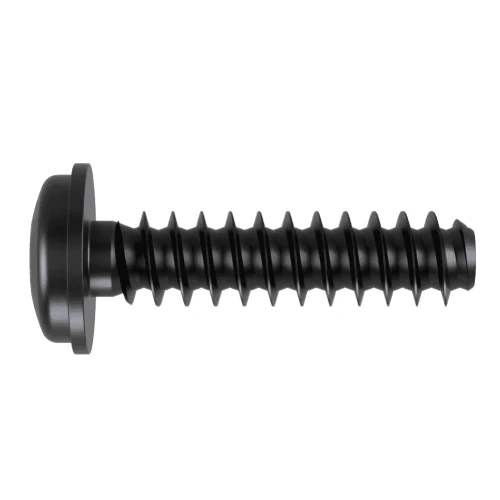

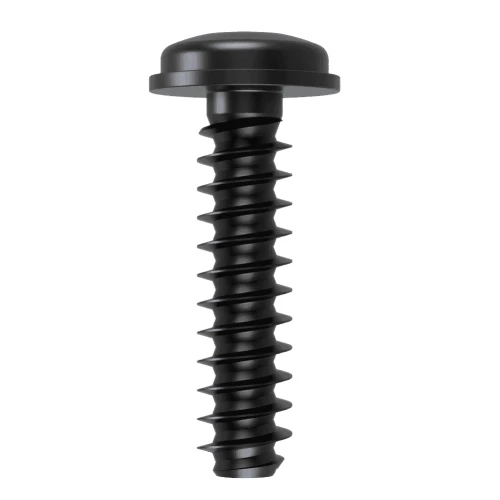

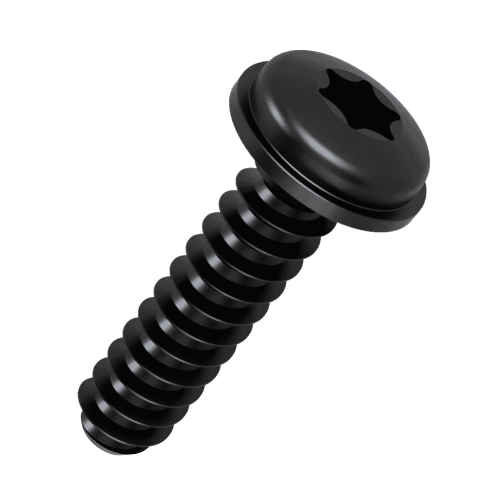

3.5mm x 12mm Torx Flanged Screw for Soft Plastics (PT30) | Black Zinc Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 49 | £0.33 | £0.39 |
| 50 - 99 | £0.19 | £0.23 |
| 100 - 249 | £0.12 | £0.15 |
| 250 - 499 | £0.10 | £0.12 |
| 500 - 999 | £0.08 | £0.10 |
| 1000 - 4999 | £0.07 | £0.08 |
| 5000 + | £0.05 | £0.06 |
£0.39 / each
.png)
Product Specification
| Thread Size | 3.5mm |
| Thread Length | 12mm |
| Material | Steel Black Zinc |
| Head Diameter | 7.0mm |
| Head Height | 2.40mm |
| Drive | T10 |
| Head Style | Flanged |
Frequently Bought Together
Total Price: £0.00
3.5mm x 12mm Torx Flanged PT30 Screw for Soft Plastics | Black Zinc Plated Steel
This 3.5mm x 12mm Torx Flanged PT30 Screw is intended for consumer electronics and dark enclosures. It combines Black Zinc Plated Steel, a T10 Torx recess and specialist plastic thread geometry with a broad flange that spreads clamping pressure across the component.
What Are Torx Flanged PT30 Screws?
A Torx Flanged PT30 screw combines specialist plastic thread geometry with a broad bearing head and positive Torx drive. The 30° thread form helps reduce outward stress on the plastic boss while the flange is useful where a larger surface area is needed around the fixing point.
Common Applications
- Furniture Components: Secures suitable moulded plastic fittings and panels used in furniture manufacture.
- Control Equipment: Secures plastic panels and housings used around switches, sensors and electronic controls.
- Automotive Interiors: Secures trim, housings and interior plastic components where reduced boss stress and positive Torx engagement are useful.
- Industrial Equipment: Secures plastic guards, instrument covers and housings used on machinery and control equipment.

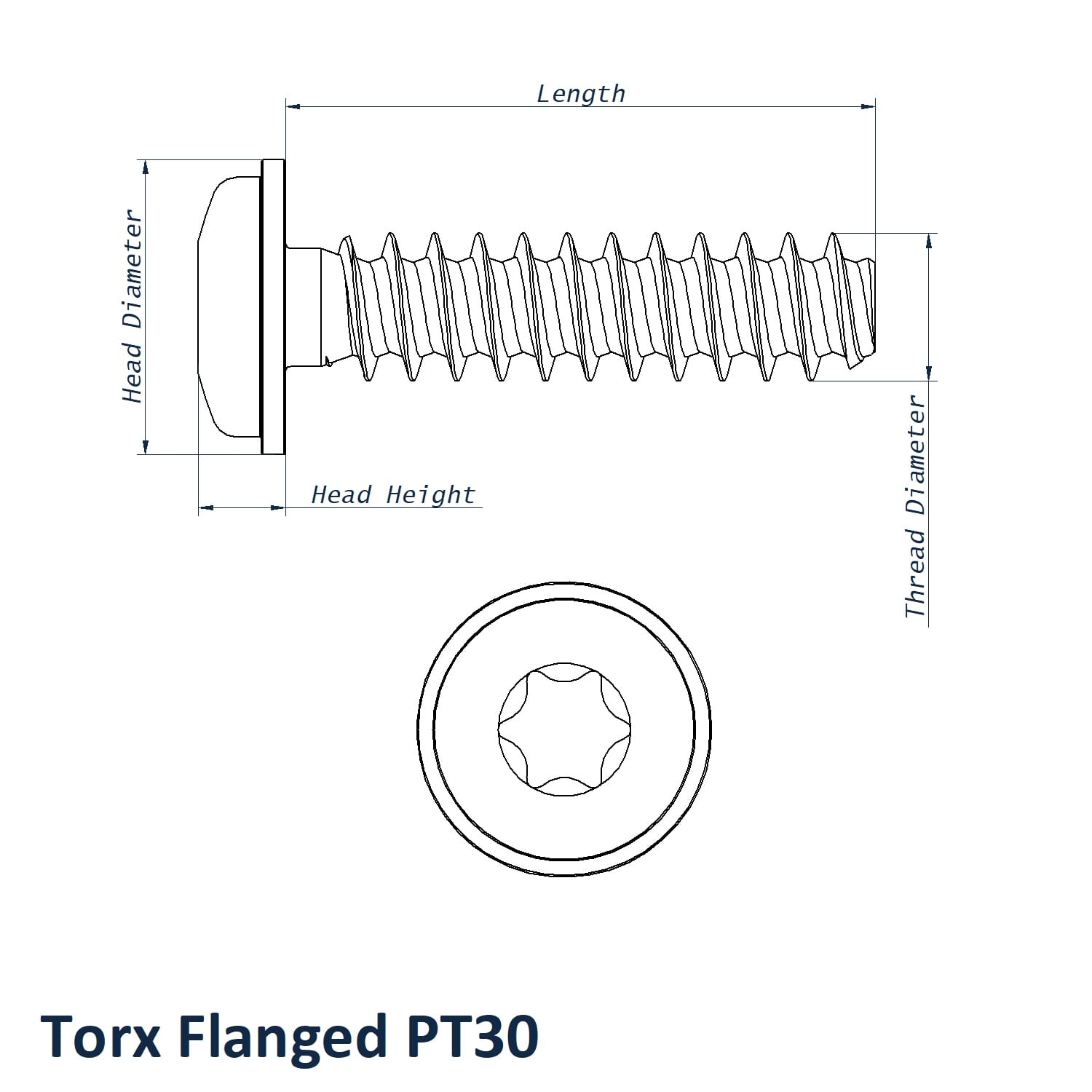

3.5mm x 12mm Torx Flanged PT30 Screw Dimensions
- Thread Size: 3.5mm
- Thread Length: 12mm
- Head Diameter: 7.0mm
- Head Height: 2.40mm
- Drive: T10
- Material: Steel Black Zinc
- Head Style: Flanged
Key Benefits
- T10 Torx drive provides positive engagement and efficient torque transfer.
- Thread-forming action displaces plastic rather than producing conventional cutting swarf.
- Correct pilot-hole diameter, boss size and thread engagement should be selected for the specific plastic and assembly.
- 2.40mm head height matches the uploaded SKU specification.
See related dimensions and materials in the Torx Flanged PT30 Screw range. If you are designing a plastic boss or choosing between PT30 and PT45, our Engineering Guide to Screws for Plastic covers pilot-hole ratios, thread engagement and torque testing. For help, call 01233 713581.
