M3 x 16mm Torx Raised Countersunk Screw (DIN 966TX) | A2 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 49 | £1.52 | £1.82 |
| 50 - 99 | £1.13 | £1.36 |
| 100 - 499 | £0.76 | £0.91 |
| 500 - 999 | £0.57 | £0.68 |
| 1000 + | £0.38 | £0.45 |
Product Specification
| Thread Size | M3 |
| Length | 16mm |
| Pitch | 0.5mm |
| Head Diameter | 5.60mm |
| Head Height | 1.65mm |
| Drive | T10 |
| Standard | DIN 966T |
| Head Style | Raised Countersunk |
| Material | A2 Stainless Steel |
Frequently Bought Together
Total Price: £0.00
M3 x 16mm Torx Raised Countersunk Screw DIN 966TX | A2 Stainless Steel
Engineered for visible assemblies requiring a raised countersunk finish, this medium reach machine screw combines a M3 thread size with a 16mm thread length and 0.5mm thread pitch for commercial fabrication. The raised countersunk head profile allows partial seating within a countersunk hole while maintaining a clean domed appearance above the surface.
Manufactured to DIN 966TX from a2 stainless steel, this screw features a 5.60mm head diameter, 1.65mm head height and T10 Torx drive for improved torque transfer during installation. The drive design helps minimise cam-out while supporting consistent fastening across engineering, fabrication and industrial environments.
Common Applications
- Engineering and fabrication assemblies
- Machine and equipment manufacture
- Panel and bracket installations
- Maintenance and repair operations

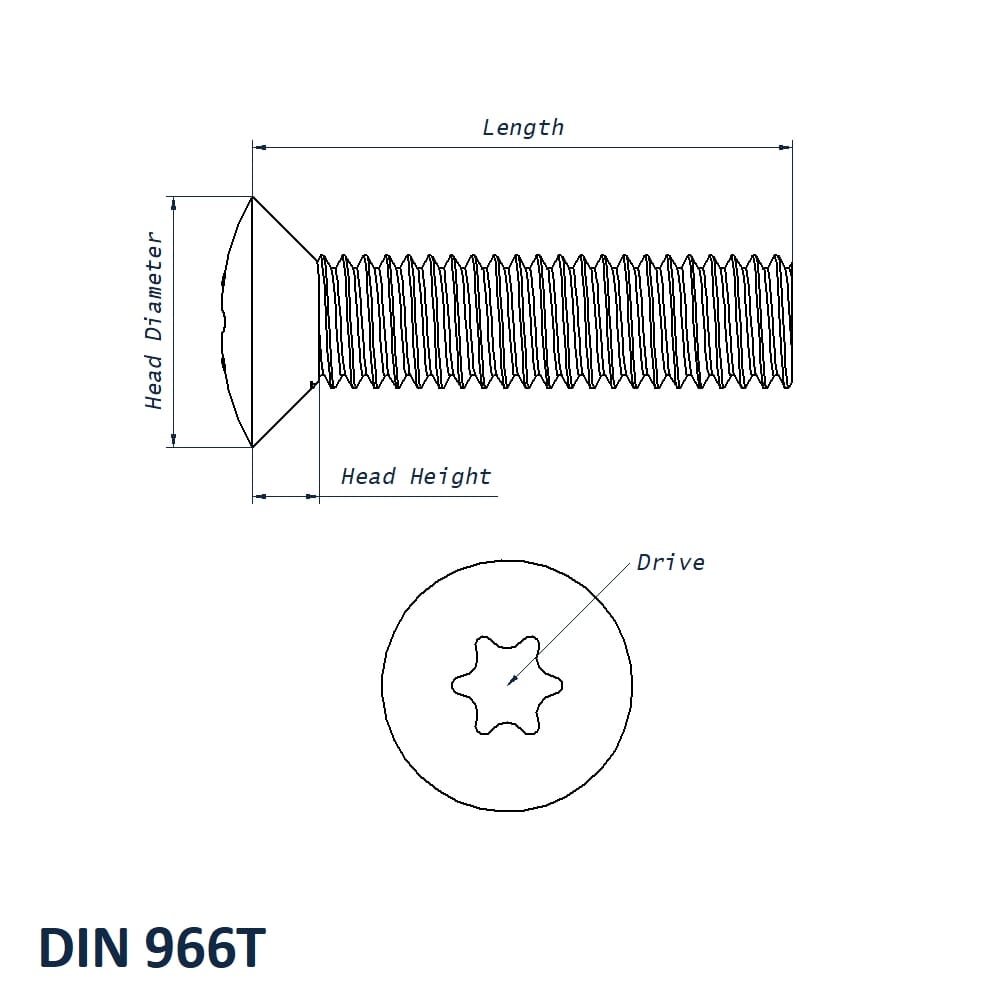

M3 Torx Raised Countersunk Screw Dimensions
- Thread Size: M3
- Length: 16mm
- Pitch: 0.5mm
- Head Diameter: 5.60mm
- Head Height: 1.65mm
- Drive: T10
- Material: A2 Stainless Steel
- Standard: DIN 966TX
- Head Style: Raised Countersunk
