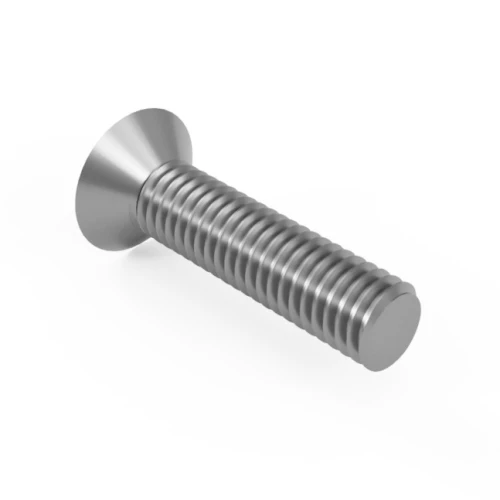

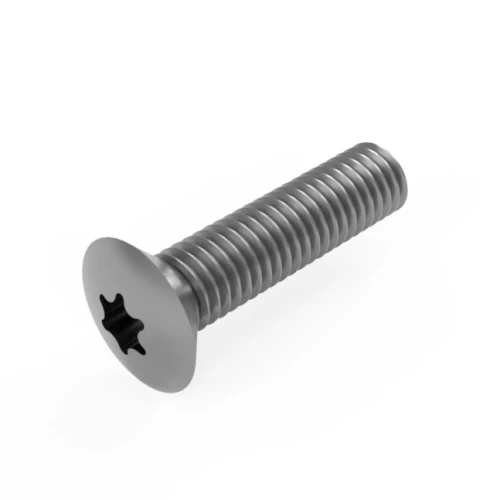

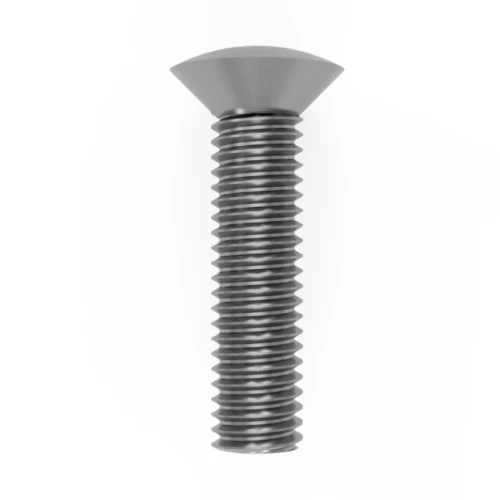

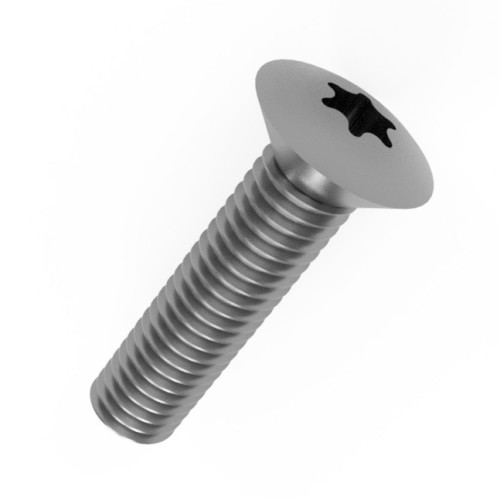

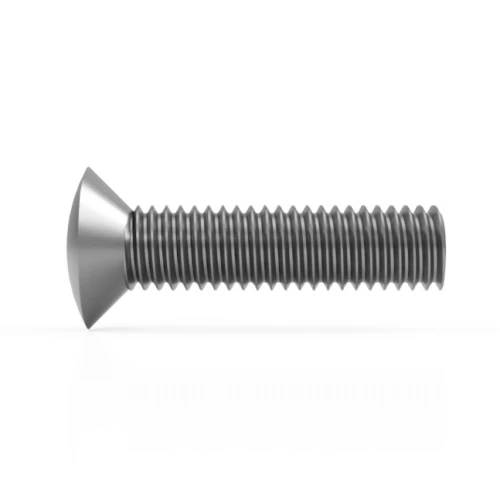

M5 x 12mm Torx Raised Countersunk Screw (DIN 966TX) | Marine Grade A4 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 49 | £2.27 | £2.73 |
| 50 - 99 | £1.71 | £2.05 |
| 100 - 499 | £1.14 | £1.37 |
| 500 - 999 | £0.85 | £1.02 |
| 1000 + | £0.57 | £0.68 |
Product Specification
| Thread Size | M5 |
| Length | 12mm |
| Pitch | 0.8mm |
| Head Diameter | 9.20mm |
| Head Height | 2.50mm |
| Drive | T25 |
| Standard | DIN 966T |
| Head Style | Raised Countersunk |
| Material | A4 Stainless Steel |
Frequently Bought Together
Total Price: £0.00
M5 x 12mm Torx Raised Countersunk Screw DIN 966TX | A4 Stainless Steel
Manufactured for secure machine screw installations requiring improved drive engagement, this medium reach machine screw combines a M5 thread size with a 12mm thread length and 0.8mm thread pitch for precision fabricated products. The raised countersunk head profile allows partial seating within a countersunk hole while maintaining a clean domed appearance above the surface.
Manufactured to DIN 966TX from a4 stainless steel, this screw features a 9.20mm head diameter, 2.50mm head height and T25 Torx drive for improved torque transfer during installation. The drive design helps minimise cam-out while supporting consistent fastening across engineering, fabrication and industrial environments.
Common Applications
- Engineering and fabrication assemblies
- Machine and equipment manufacture
- Panel and bracket installations
- Maintenance and repair operations

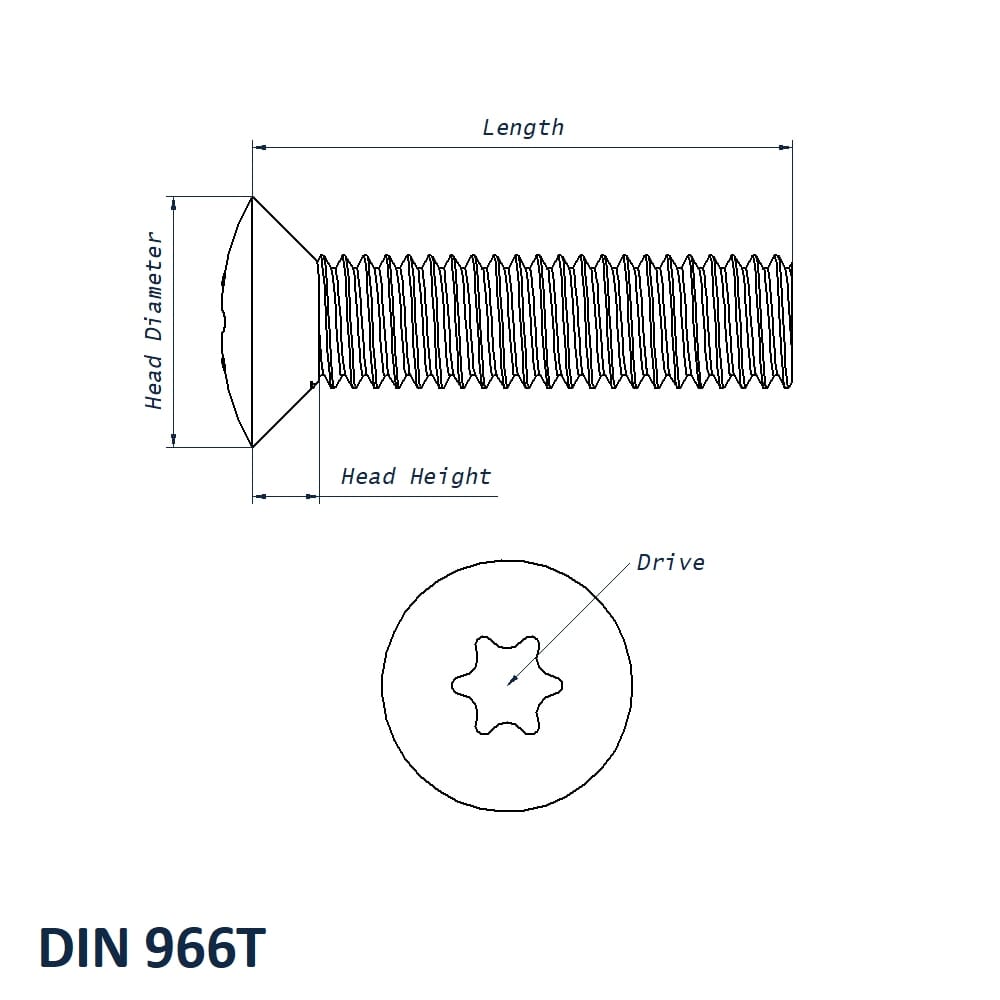

M5 Torx Raised Countersunk Screw Dimensions
- Thread Size: M5
- Length: 12mm
- Pitch: 0.8mm
- Head Diameter: 9.20mm
- Head Height: 2.50mm
- Drive: T25
- Material: A4 Stainless Steel
- Standard: DIN 966TX
- Head Style: Raised Countersunk
View our full Torx Raised Countersunk Screw range or browse our Countersunk Fasteners collection.
Need help or buying in bulk?
For technical support, sizing guidance or volume pricing enquiries call 01233 713581.
