M5 x 35mm TX25 Torx Cap Screw (ISO 14579) | BZP Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £0.11 | £0.13 |
| 100 - 999 | £0.09 | £0.11 |
| 1000 - 4999 | £0.07 | £0.09 |
| 5000 + | £0.06 | £0.07 |
£0.13 / each
Product Specification
| Thread Size | M5 |
| Length | 35mm |
| Threaded Length | 22mm |
| Drive | TX25 |
| Pitch | 0.80mm |
| Head Diameter | 8.5mm |
| Head Height | 5.0mm |
| Standard | ISO 14579 |
| Head Style | Cap Head |
| Material | BZP Steel |
Frequently Bought Together
Total Price: £0.00

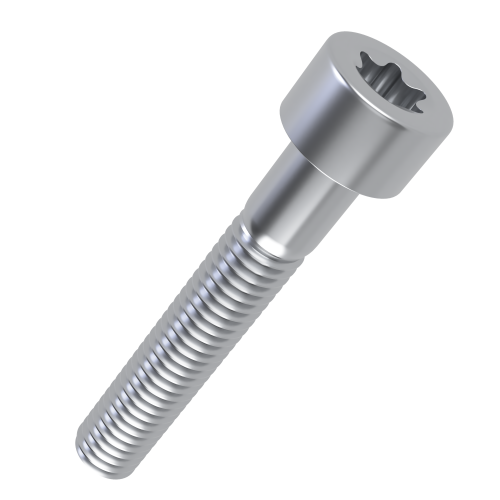

M5 x 35mm TX25 Torx Cap Screw (ISO 14579) | BZP Steel
A practical choice for automotive assemblies, this screw pairs a TX25 recess with a cap head profile to give a neat finish when used in counterbored holes.
Manufactured from BZP steel, it provides a strong everyday option for metalwork where stainless corrosion resistance is not required. The description focus is kept on m5 star drive cap screw, TX25 drive installation and the exact 35mm length rather than repeating the same size-led keyword across the range. The circular cap head can be recessed into a counterbore where a neater surface finish is required.
Common Applications
- Fixing sheet steel panels using a TX25 Torx drive
- Fixing removable inspection panels with bzp steel fixings
- Control cabinet assembly requiring M5 x 35mm hardware
- Workshop jig construction

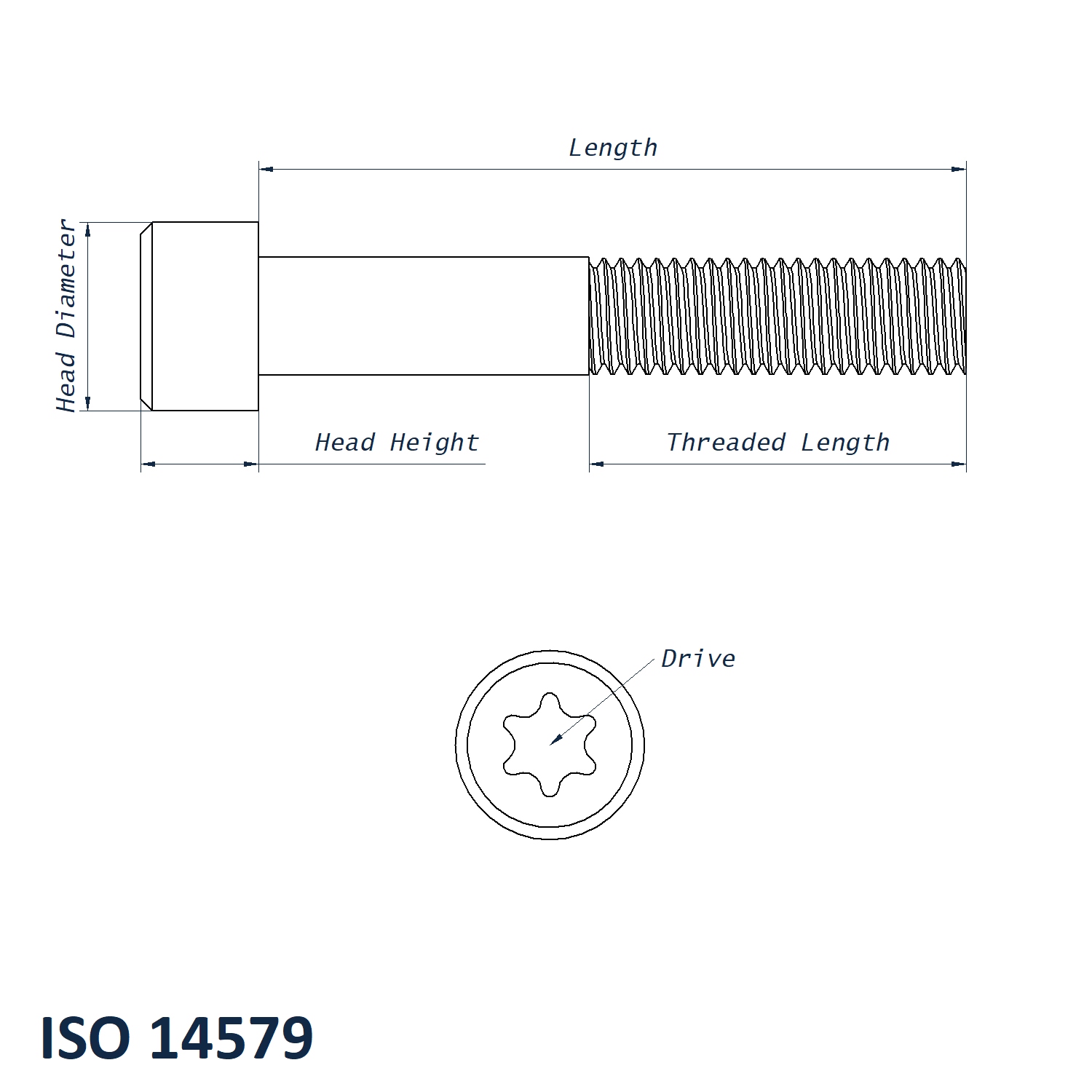

M5 x 35mm Torx Socket Cap Screw Dimensions
- Thread Size: M5
- Length: 35mm
- Threaded Length: 22mm
- Pitch: 0.80mm
- Head Diameter: 8.5mm
- Head Height: 5mm
- Drive: TX25
- Standard: ISO 14579
- Head Style: Cap Head
- Material: BZP Steel
Related Fasteners
Most commonly used in conjunction with Washers and Nuts, these products are used to hold fasteners in place, joining two or more parts together. We also offer Socket Button Screws and Socket Countersunk Screws. A Torx drive is used where higher installation torques are required than a traditional slot or cross recessed drive will support.
View our full Torx Socket Cap Screws ISO 14579.
