31.8mm Universal Open/Closed Bushing - 3.2mm Panel (25.4mm Cable) | Nylon
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 249 | £0.54 | £0.65 |
| 250 - 499 | £0.49 | £0.59 |
| 500 - 999 | £0.45 | £0.54 |
| 1000 - 2499 | £0.40 | £0.48 |
| 2500 - 4999 | £0.36 | £0.43 |
| 5000 + | £0.32 | £0.38 |
Product Specification
| To Fit Hole Diameter | 31.8mm |
| Max Panel Thickness | 3.2mm |
| Max Cable Diameter | 25.4mm |
| Head Diameter | 37.3mm |
| Length | 10.3mm |
| Style | Split |
Frequently Bought Together
Total Price: £0.00

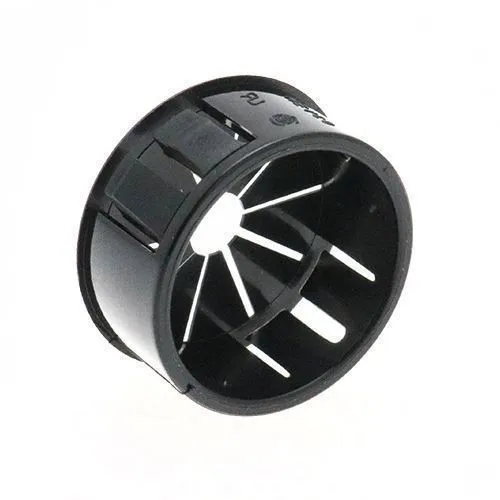

31.8mm Universal Open/Closed Bush | 25.4mm Max Cable | Black Nylon 66
Specified for larger cable routes, this 31.8mm large cable bushing supports cables up to 25.4mm while protecting the surrounding panel opening. The universal open/closed body makes it easier to fit around cable looms that are already in position.
A 37.3mm head diameter provides broad coverage around the cut-out, helping create a tidier finish on enclosure faces and machine panels. The Nylon 66 material helps resist wear from cable movement and provides useful insulation between the cable and the panel edge.
What Are Universal Open/Closed Bushes?
Large open/closed cable bushings are used where a simple side-entry bush is needed for wider cables or grouped wiring. The snap-fit fingers secure the bush to the panel and help keep the cable properly located.
Common Applications
- Larger electrical enclosure apertures
- Cable loom pass-throughs
- Machine frame wiring exits
- Production line panel assemblies
31.8mm Universal Open/Closed Bush Dimensions
- To Fit Hole Diameter: 31.8mm
- Max Panel Thickness: 3.2mm
- Max Cable Diameter: 25.4mm
- Head Diameter: 37.3mm
- Length: 10.3mm
- Material: Nylon 66
- Colour: Black
Universal Cable Bush Selection
These large cable bushing products are designed for cable protection where a side-entry bush is needed. Always check the hole diameter, panel thickness and maximum cable diameter against your application before ordering.
View our full Universal Open/Closed Bushes range.
Product Support and Trade Orders
If you need help selecting a larger cable bushing for a wiring loom or enclosure cut-out, contact Vital Parts on 01233 713581. We can advise on dimensions, availability and repeat supply requirements.
