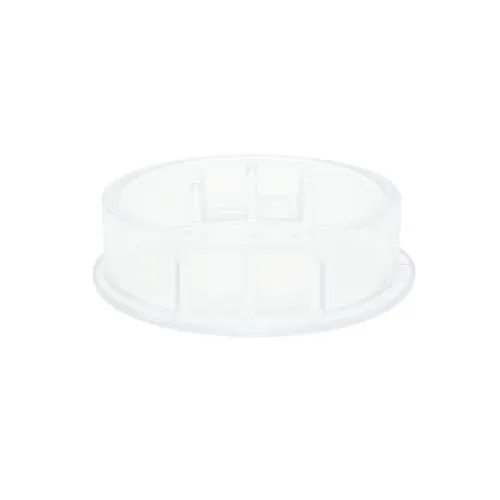

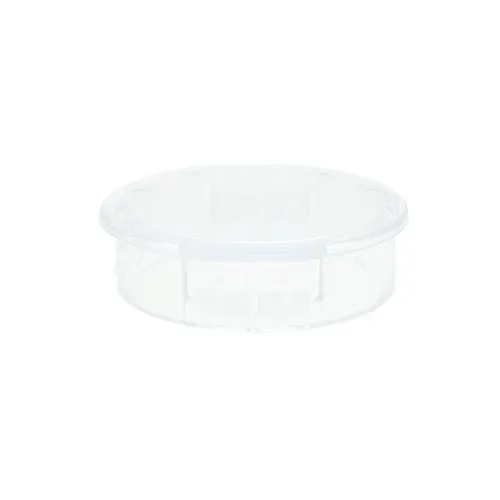

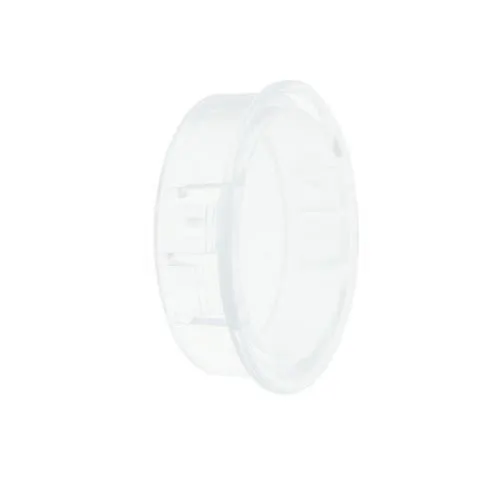

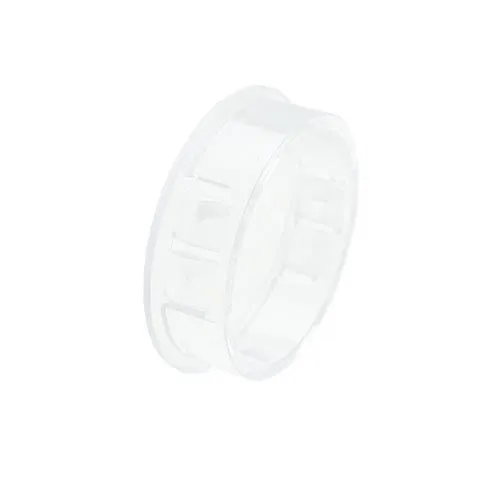

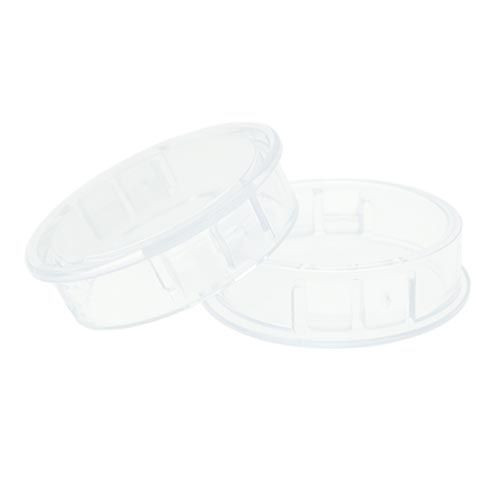

22.5mm Clear Viewport Plug (24.2mm Head) | Polycarbonate
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 499 | £0.82 | £0.99 |
| 500 - 999 | £0.55 | £0.66 |
| 1000 - 4999 | £0.33 | £0.40 |
| 5000 - 9999 | £0.29 | £0.35 |
| 10000 + | £0.28 | £0.33 |
£0.99 / each
.png)
Product Specification
| Mounting Hole Diameter | 22.5mm |
| Panel Thickness | 1.6mm |
| Material | Polycarbonate |
| Head Diameter | 24.2mm |
| Overall Height | 6.4mm |
| Colour | Clear |
Frequently Bought Together
Total Price: £0.00
22.5mm Clear Short Viewport Window Plug | 1.6mm Panel | Polycarbonate
Created for thin-wall enclosures requiring a compact transparent window plug, this low-profile window plug is made from clear Polycarbonate to suit a 22.5mm mounting hole and 1.6mm panel thickness. It provides a clear viewing point for enclosed components while giving the panel opening a clean, protected finish.
Its shallow design provides a tidy viewing point for thin-wall equipment, lightweight housings and compact electrical assemblies. The 24.2mm head diameter and 6.4mm overall height make it suitable for accurately finished panel work where visibility, fit and practical protection all matter.
What Are Viewport Window Plugs?
Short viewport window plugs are compact transparent inserts designed for thin panels where rear clearance is limited. They create a clear viewing point for checking internal LEDs, markers or component status while keeping the panel aperture covered. Manufactured from clear polycarbonate, these inspection plugs are commonly used in equipment housings, control panels and machinery enclosures where passive visual monitoring is required.
Common Applications
- Thin panel inspection holes on compact control equipment
- Instrument covers where space behind the face is restricted
- Panel cut-outs for viewing status lamps or internal tags
- Maintenance panels requiring easy snap-in installation
22.5mm Clear Short Viewport Window Plug Dimensions
- Mounting Hole Diameter: 22.5mm
- Panel Thickness: 1.6mm
- Head Diameter: 24.2mm
- Overall Height: 6.4mm
- Colour: Clear
- Material: Polycarbonate
Inspection and Panel Protection
This short viewport window plug helps reduce unnecessary panel opening by giving technicians a visible inspection point for internal equipment. The snap-fit design supports quick installation in prepared holes, making it suitable for production builds, control cabinet assembly and maintenance replacements.
View our full Viewport Window Plugs range.
Product Support and Trade Orders
If you need help selecting the correct clear inspection plug for an enclosure, housing or control panel, the Vital Parts team can advise on 01233 713581. Support is available for trade orders, samples where available and repeat supply.
