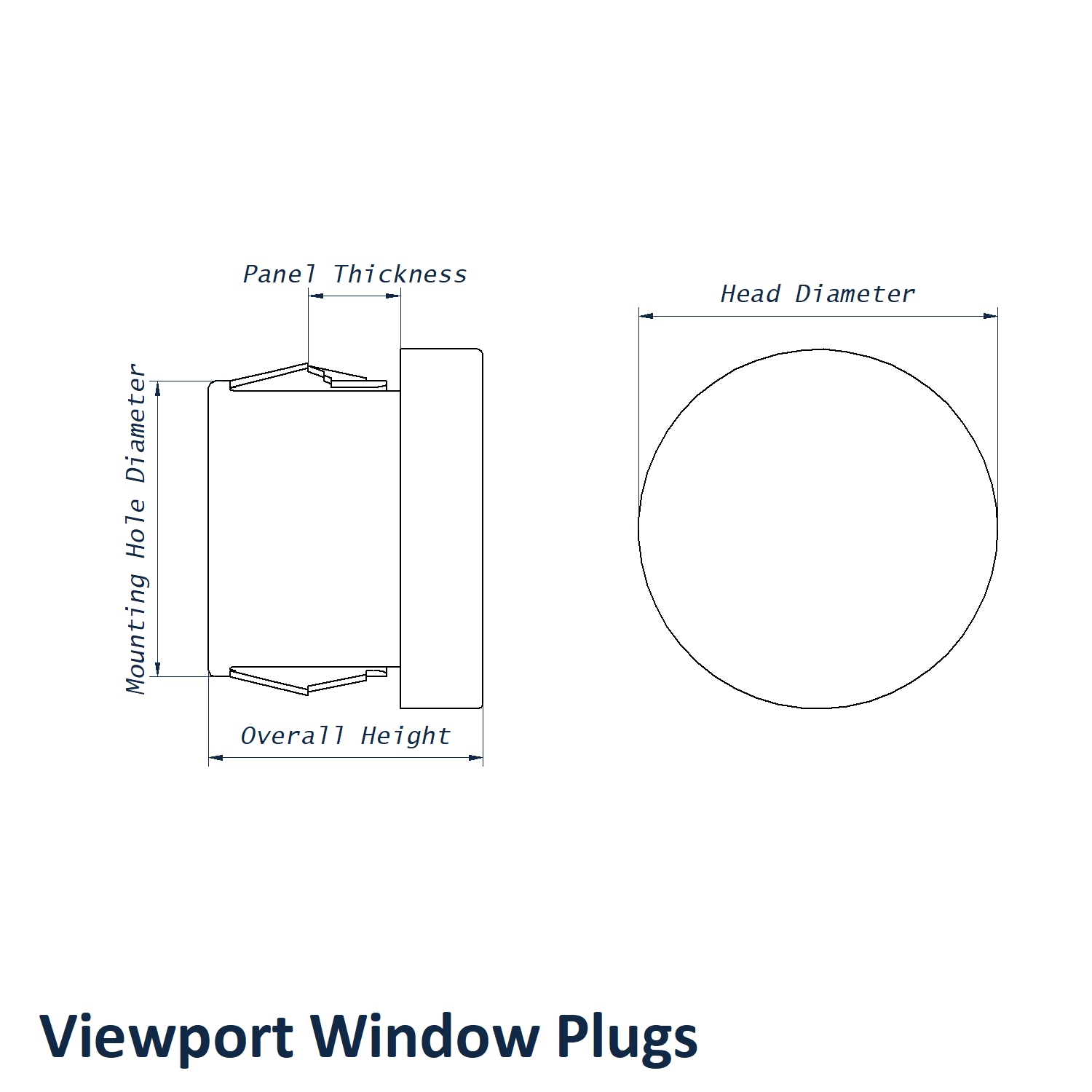

Viewport Window Plugs
Viewport window plugs are transparent polycarbonate panel inserts that combine the functionality of blanking plugs with internal visibility capabilities. These window plugs provide a clear viewing window into enclosed systems whilst maintaining an effective environmental seal against dust moisture and debris. Manufactured from UL94V-2 rated clear polycarbonate these inspection plugs are designed to withstand temperatures from -40°C to 115°C making them suitable for demanding UK industrial applications including electrical control panels machinery enclosures HVAC systems and medical equipment. The primary benefit of viewport window plugs is their ability to enable routine visual monitoring of internal components such as indicator lights fuse locations fluid levels or operational status without requiring panel opening or system shutdown.
Available in both standard and shorty configurations these plugs accommodate various panel thicknesses from 1.6mm up to 6.4mm with mounting hole diameters ranging from 4.7mm to 50.8mm in round and oval styles.
Available Materials & Style Options:
- Clear polycarbonate construction - UL94V-2 flammability rated for safety compliance
- Round style plugs - Standard circular mounting holes from 4.7mm to 50.8mm diameter
- Oval style plugs - Rectangular openings for specialised applications
- Standard viewport plugs - Multiple locking positions for panel thicknesses up to 6.4mm
- Shorty viewport plugs - Single locking position for thin panels up to 1.6mm thickness
- Temperature resistant - Operating range from -40°C to 115°C for harsh environments
Key Features & Benefits:
- Crystal clear visibility - Transparent polycarbonate allows unobstructed internal viewing
- Tool-free installation - Integrated locking fingers provide secure snap-fit mounting
- Environmental sealing - Prevents ingress of dust moisture and contaminants
- Flame retardant material - UL94V-2 rating ensures safety in electrical applications
- Wide temperature tolerance - Reliable performance from -40°C to 115°C
- Impact resistant construction - Durable polycarbonate withstands industrial environments
- Multiple panel thickness compatibility - Locking fingers accommodate various wall thicknesses
- Low profile design - Minimal intrusion into internal space especially shorty versions
Common UK Use Cases:
- Electrical control panels - Monitoring fuse status indicator lights and circuit breakers without opening enclosures
- Industrial machinery - Visual inspection of internal components fluid levels and operational indicators
- HVAC equipment - Checking airflow indicators filter status and system operation in heating and ventilation systems
- Medical and laboratory equipment - Viewing operational status lights and internal sensors whilst maintaining sterile sealing
- Telecommunications cabinets - Inspecting LED status indicators and equipment operation in confined spaces
Related Vital Parts Products:
- Blanking Plugs - Nylon snap-fit plugs for sealing unused panel holes
- Rectangular Blanking Plugs - For covering connector ports and power outlets
- Flexible Blanking Plugs - Rubber alternatives for enhanced chemical and temperature resistance
- Plugs & Stoppers Range - Complete selection of sealing and masking solutions
Call Vital Parts:
For quick quotes same-day dispatch custom sizes or bulk discounts call our sales line on 01233 713 581. Businesses can register for a Vital Parts Business Account to benefit from priority shipping trade pricing free product samples credit accounts and a dedicated account manager. Our technical experts can help you select the correct viewport window plug size and style for your specific application requirements.
Frequently Asked Questions
Viewport Window Plugs snap securely into a panel opening using integrated locking fingers, creating a transparent viewing window that allows visual inspection whilst helping prevent dust, moisture and contaminants from entering the enclosure.
Viewport Window Plugs are ideal for monitoring indicator lights, fuses, fluid levels, gauges, sensors, moving components and equipment status without removing the panel or interrupting operation.
Yes. Viewport Window Plugs provide a secure environmental seal that helps reduce the ingress of dust, dirt and moisture whilst still allowing clear visibility of internal components.
Standard Viewport Window Plugs feature multiple locking positions to suit a wider range of panel thicknesses, whilst Shorty Viewport Window Plugs are designed for thinner panels where minimal internal projection is required.
Yes. Viewport Window Plugs are commonly installed in electrical control panels and enclosures, allowing engineers to safely inspect fuses, indicator lights and electrical components without opening the cabinet.
Yes. Viewport Window Plugs feature a snap-fit design with integrated locking fingers, allowing quick installation by hand without requiring screws, adhesives or specialist tools.
