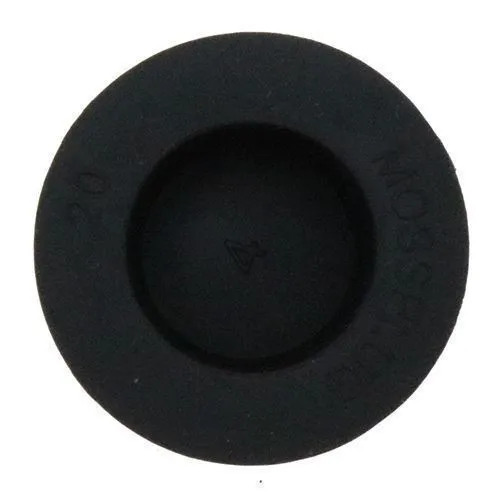

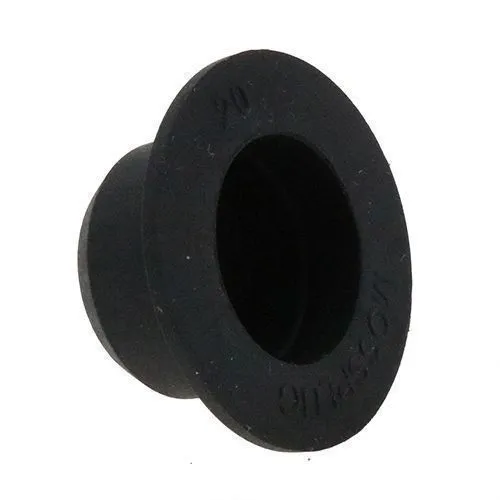

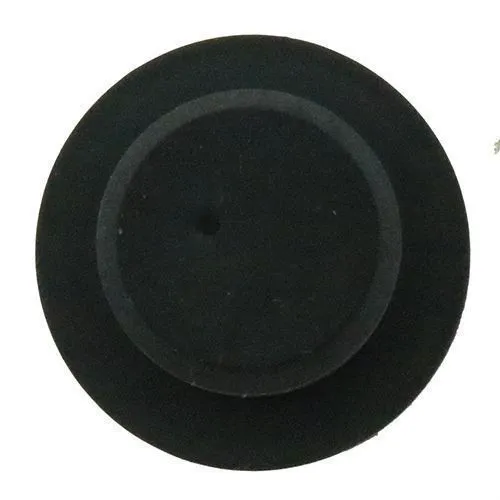

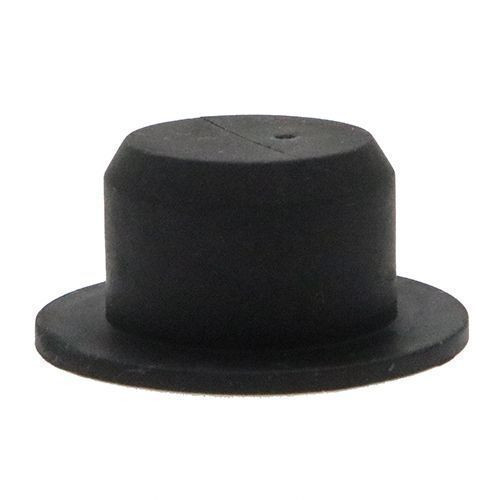

16mm Washer Masking Plug - For 24mm Washer (14mm Length) | Thermoplastic Rubber
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 1 | £0.60 | £0.72 |
| 2 - 10 | £0.60 | £0.72 |
| 11 - 50 | £0.52 | £0.62 |
| 51 - 100 | £0.42 | £0.50 |
| 101 - 500 | £0.33 | £0.40 |
| 501 - 1000 | £0.27 | £0.32 |
| 1001 - 2500 | £0.22 | £0.26 |
| 2501 + | £0.17 | £0.21 |
Product Specification
| To Fit Hole Diameter | 16mm |
| Washer Diameter | 24mm |
| Length | 14mm |
| Internal Diameter | 12.9mm |
| Material & Colour | Thermoplastic Rubber |
Frequently Bought Together
Total Price: £0.00
16mm Hole x 24mm Washer Masking Plug | Black TPR
Manufactured for coating preparation, this 16mm anodising masking plug combines a tapered sealing body with a 24mm flange so the hole and nearby face can be protected in one fitting.
Its TPR body offers a dependable balance of grip and removal, helping operators protect threaded or plain holes without adding a separate washer or masking disc.
Common Applications
- Masking threaded ports before finishing
- Protecting flat surfaces around mounting holes
- Use in OEM component preparation
- Reducing coating rework on precision assemblies

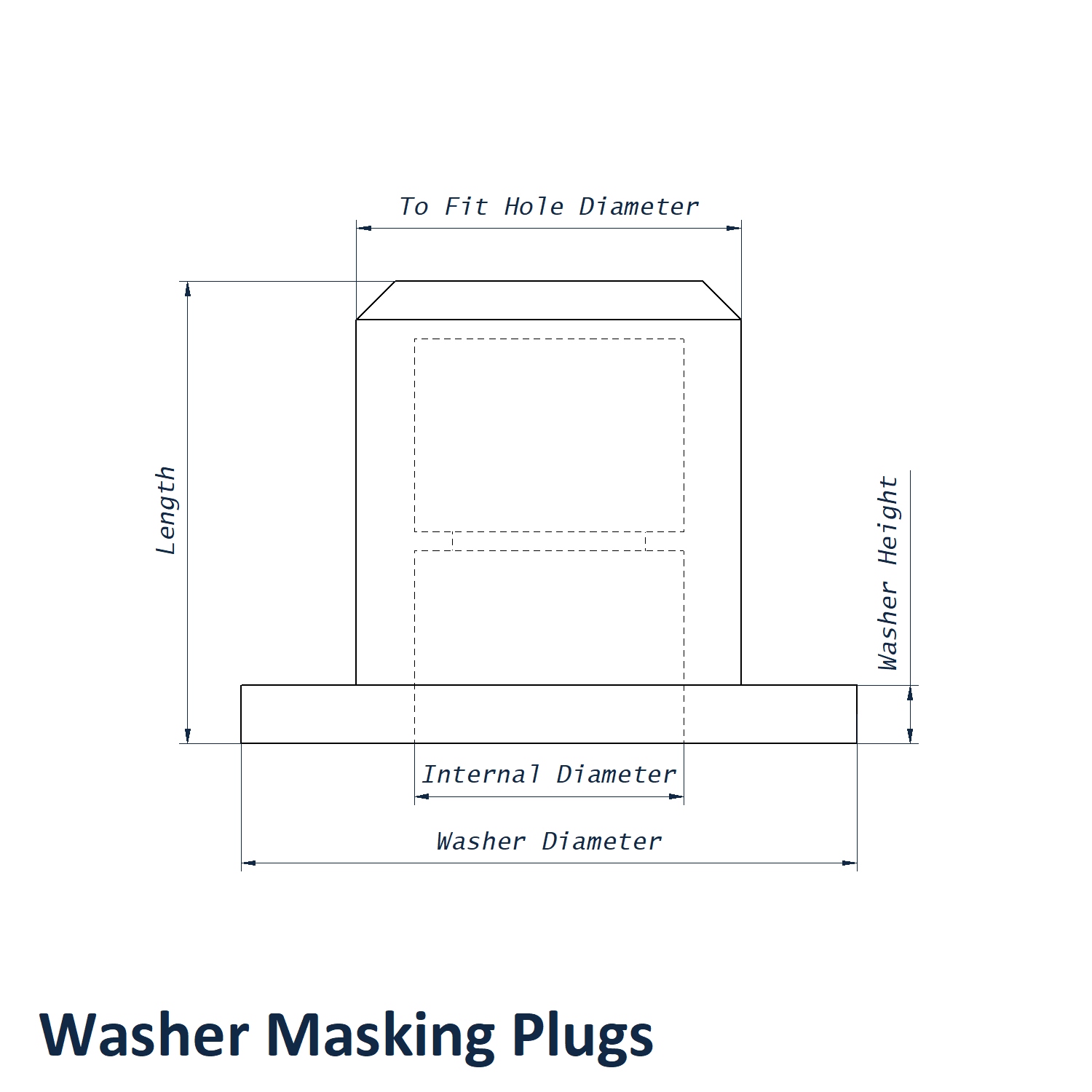

16mm Hole x 24mm Washer Masking Plug Dimensions
- To Fit Hole Diameter: 16mm
- Washer Diameter: 24mm
- Length: 14mm
- Internal Diameter: 12.9mm
- Material & Colour: Thermoplastic Rubber (TPR)
- Colour: Black
- Temperature Resistance: Up to 125°C
Washer Masking for Powder Coating
These washer plugs sit alongside our wider Masking Plugs selection for powder coating, spraying, curing and general surface treatment work.
View our full Washer Masking Plugs range.
Product Support and Trade Orders
For sizing advice on hole diameter, flange coverage or batch quantities, contact the Vital Parts team on 01233 713581. We can help with sample requests where available and support for production masking requirements.
