18mm Washer Masking Plug - For 28mm Washer (14mm Length) | Thermoplastic Rubber
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 1 | £0.64 | £0.77 |
| 2 - 10 | £0.64 | £0.77 |
| 11 - 50 | £0.55 | £0.66 |
| 51 - 100 | £0.44 | £0.53 |
| 101 - 500 | £0.35 | £0.42 |
| 501 - 1000 | £0.28 | £0.34 |
| 1001 - 2500 | £0.23 | £0.28 |
| 2501 + | £0.18 | £0.22 |
Product Specification
| To Fit Hole Diameter | 18mm |
| Washer Diameter | 28mm |
| Length | 14mm |
| Internal Diameter | 15.0mm |
| Material & Colour | Thermoplastic Rubber |
Frequently Bought Together
Total Price: £0.00

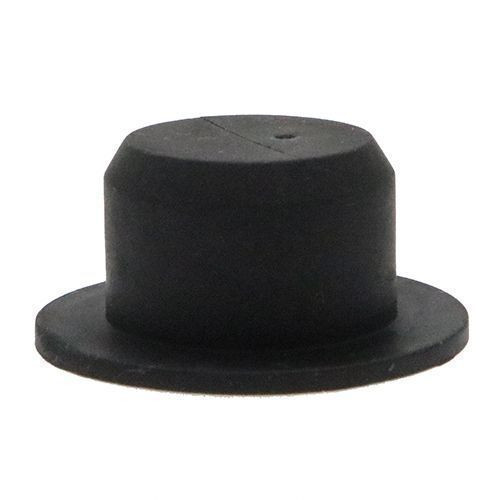

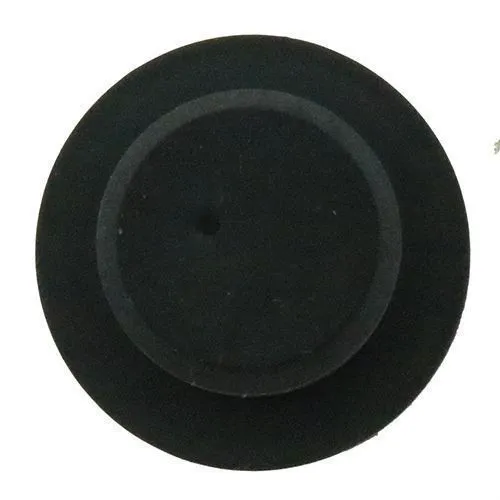

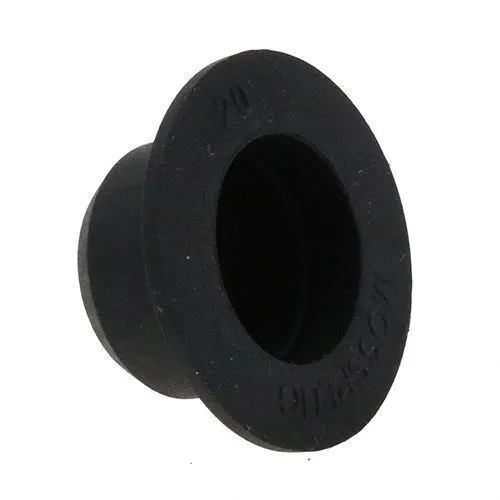

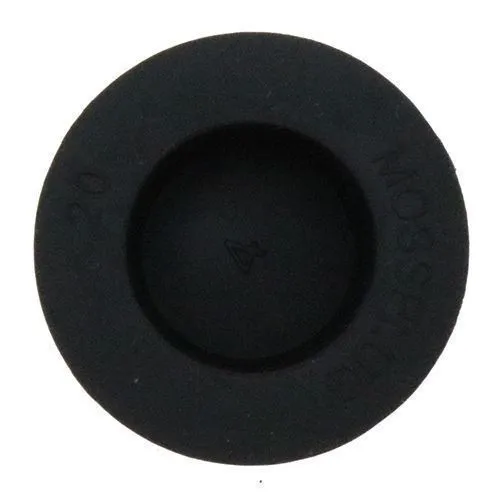

18mm Hole x 28mm Washer Masking Plug | Black TPR
Commonly specified for metal finishing lines, this flanged masking plug is made for 18mm holes and uses its 28mm washer diameter to shield the surrounding face. The format is useful where a threaded hole masking plug needs to protect more than the bore alone.
Because the plug is reusable and resistant to common finishing chemicals, it is well suited to batch coating work and repeat production cycles.
Common Applications
- Covering bolt holes on aluminium and steel components
- Protecting flat washer contact areas during spraying
- Masking electrical enclosure fixings before finishing
- Use in batch coating and subcontract finishing workshops

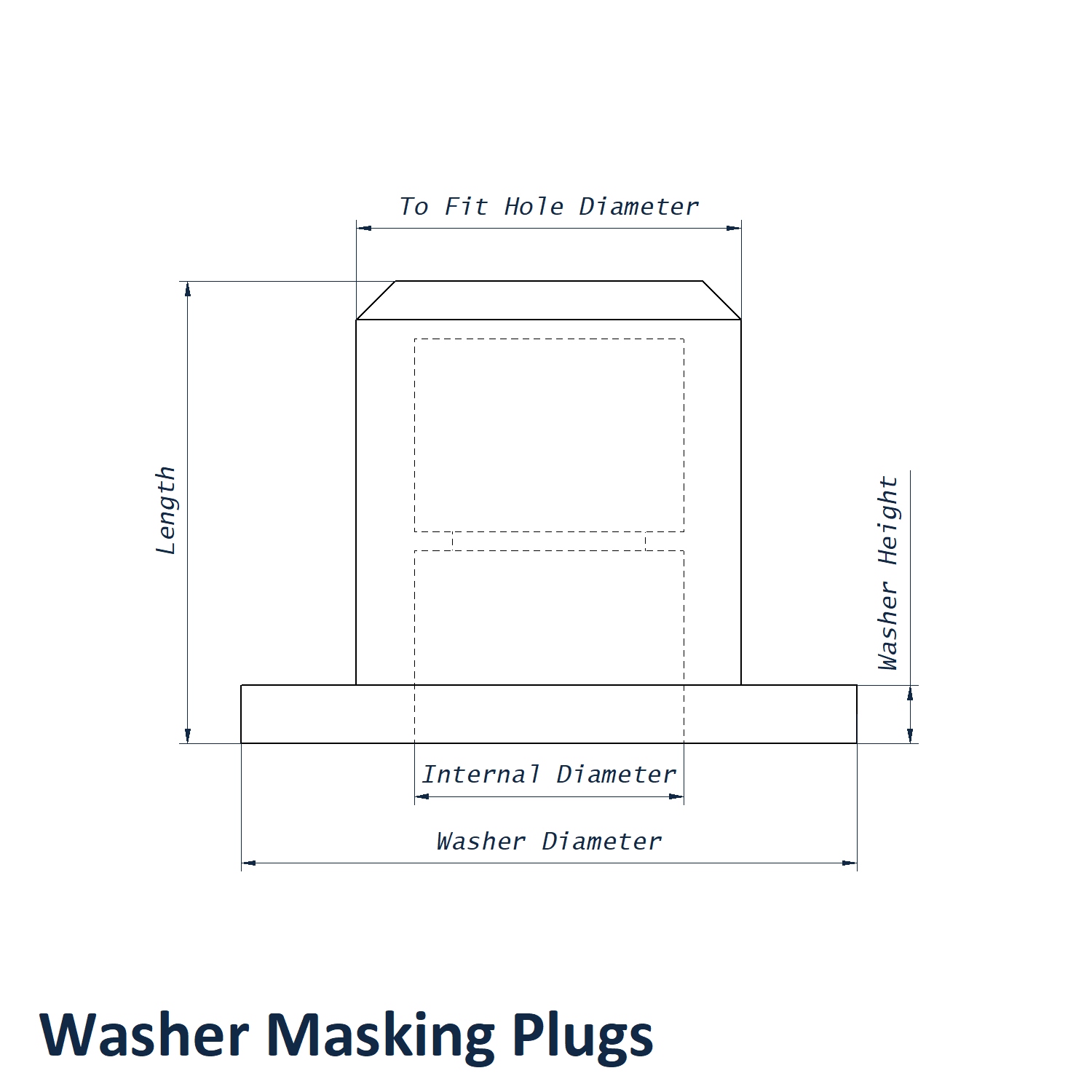

18mm Hole x 28mm Washer Masking Plug Dimensions
- To Fit Hole Diameter: 18mm
- Washer Diameter: 28mm
- Length: 14mm
- Internal Diameter: 15.0mm
- Material & Colour: Thermoplastic Rubber (TPR)
- Colour: Black
- Temperature Resistance: Up to 125°C
Washer Masking for Powder Coating
For broader masking requirements, view our Masking Plugs range for powder coating, painting and finishing processes.
View our full Washer Masking Plugs range.
Product Support and Trade Orders
For trade orders, sample enquiries or help checking the correct masking plug dimensions, call the Vital Parts team on 01233 713581. We can support workshop, fabrication and production line requirements.
