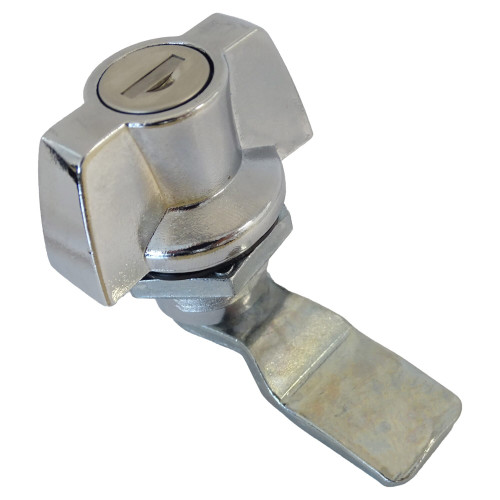

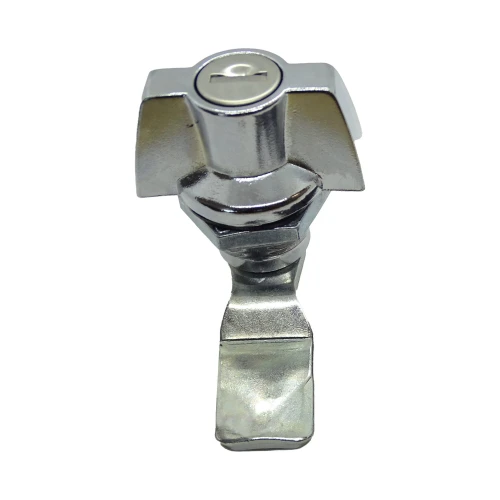

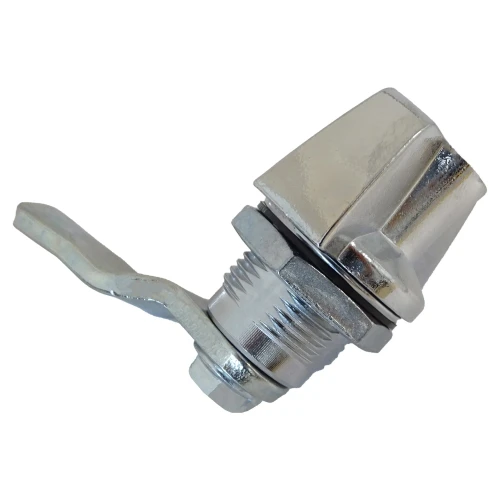

Standard Key 22.5mm x 18mm Lockable Wing Knob Camlock - Die Cast Zinc Plated Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 2 - 24 | £14.43 | £17.32 |
| 25 - 49 | £14.27 | £17.12 |
| 50 - 99 | £13.32 | £15.98 |
| 100 + | £10.54 | £12.65 |
Product Stock

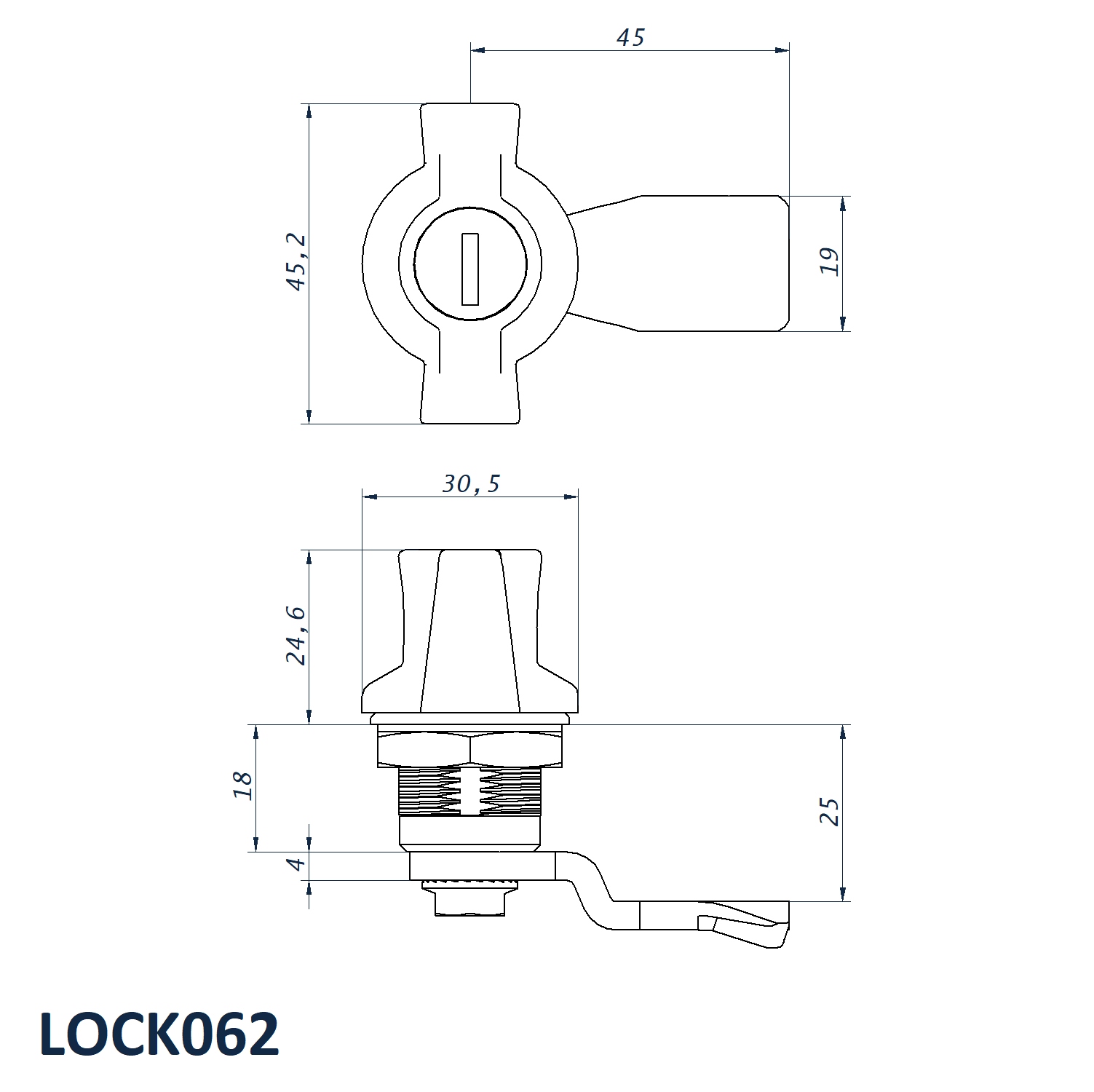

| Product Specifications | LOCK062 |
|---|---|
| Head Width | 45.2mm |
| Material | Die Cast Zinc Plated Steel |
| Key Type | Standard Key (Included) |
| Cam Depth | 25mm |
| Cam Length | 45mm |
| Head Height | 24.6mm |
| Hole Size | 22.5mm |
| Across Flats | 27mm |
| Thread Length | 18.0mm |
| Thread Size | 19.8mm |
| Colour | Self-colour |
Same Day Dispatch Available
Order by 4pm (UK) for same day dispatch (Monday – Thursday, 2pm Friday). Next Day or Standard Delivery available via DHL or Royal Mail.
Frequently Bought Together
Total Price: £0.00
Product Description
Standard Key 22.5mm x 18mm Lockable Wing Knob Camlock – Die Cast Zinc Plated Steel | Vital Parts - LOCK062
Our Standard Key Lockable Wing Knob Camlock is a robust, secure, and ergonomic solution for securing panels, cabinets, and industrial enclosures. Designed with a 22.5mm hole size, 18mm thread length, and 45mm cam length, this high-performance fastening component is crafted from Die Cast Zinc Plated Steel with a self-coloured finish. It combines tool-free access via its wing knob with added security through a standard key locking system, making it ideal for frequent-access installations in both indoor and outdoor environments.
What is a Lockable Wing Knob Camlock?
This component functions as a quarter-turn lock designed for use with cabinets, metal enclosures, switchgear panels, and other industrial or electrical housings. The integrated wing knob allows for easy manual operation, while the built-in key mechanism enhances safety and restricts unauthorised access. Its rugged design, combined with precision measurements, ensures a reliable and secure fit across a wide variety of applications in sectors such as telecommunications, HVAC, transport and engineering.
Key Applications and Industries
- Electrical Cabinets: Frequently used by installers and maintenance contractors to secure service panels and access doors.
- Industrial Enclosures: Providing reliable closure for mechanical or control equipment housing.
- Telecom Infrastructure: Commonly installed in network cabinets, server units, and comms boxes.
- HVAC Systems: Secures control panel hatches and unit access points.
- Vehicle and Trailer Storage: Used to protect toolboxes and compartment doors on commercial fleets.
Why Choose Our Wing Knob Camlock?
Premium Construction: Made from die cast zinc plated steel for superior strength and resistance to corrosion.
Secure Access: Fitted with a standard key locking system to protect against unauthorised opening.
User-Friendly: The large wing knob enables quick, tool-free opening and closing for frequent access situations.
3 Key Features:
- Quick installation and ergonomic operation via wing knob

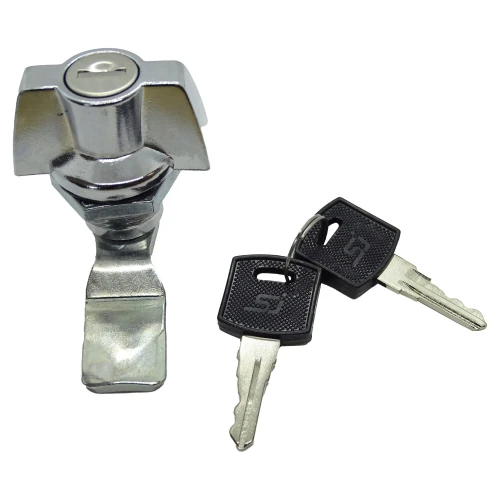

- Supplied with a standard key – no additional accessories needed
- Compatible with a wide range of cabinets and enclosures
Product Specifications:
- Product Code: LOCK062
- Hole Size: 22.5mm
- Thread Length: 18mm
- Thread Size: 19.8mm
- Cam Length: 45mm
- Cam Depth: 25mm
- Across Flats: 27mm
- Head Width: 45.2mm
- Head Height: 24.6mm
- Material: Die Cast Zinc Plated Steel
- Finish: Self-Colour
- Key Type: Standard Key (Included)
