Self Threading Nut Caps
Our Self Threading Nut Caps, also known as Thread Caps, Nut Caps or Bolt Caps, are made from high quality LDPE anmd are designed to be easily installed to protected exposed threads. These Stud Protection Caps are used to conceal fasteners, but can also offer protection to the otherwise exposed threads from dirt, damage, corrosion or injury.

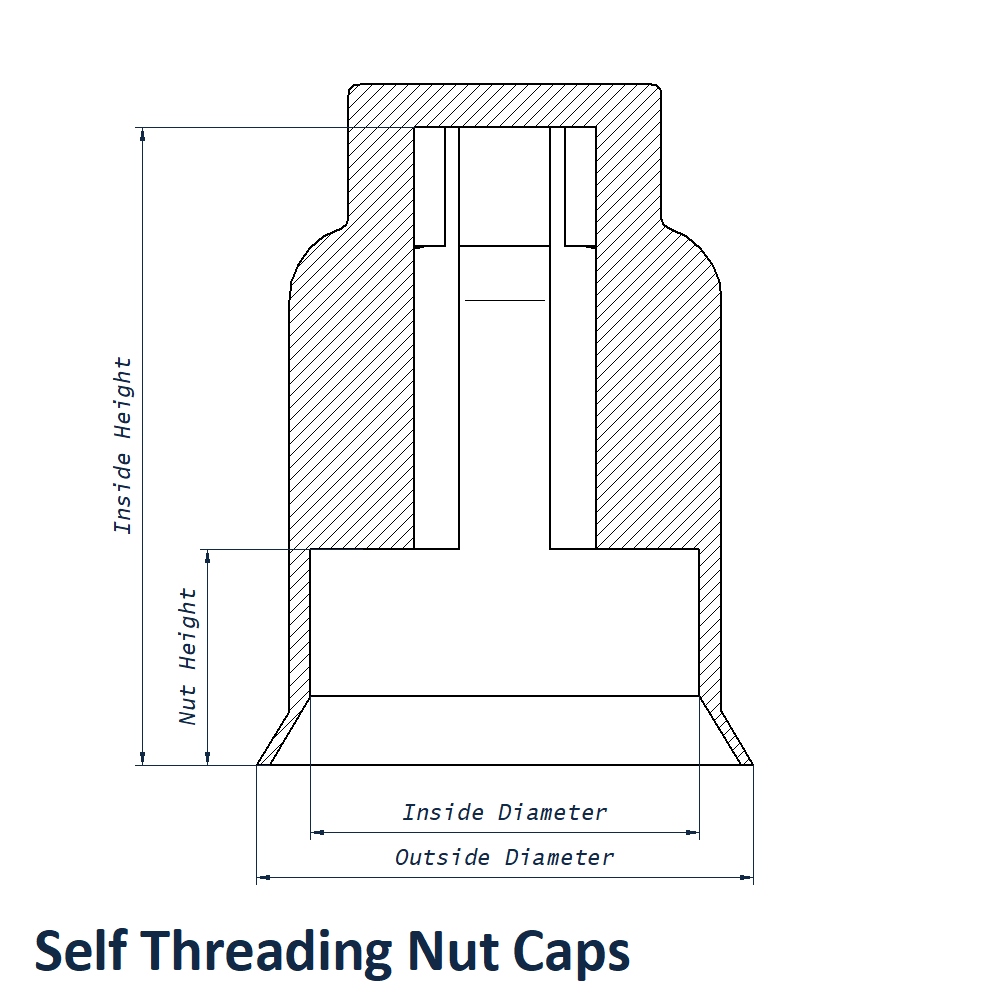

Our Self Threading Nut Caps are designed to be screwed onto the thread of an existing stud or bolt, where the internal ribs are threaded as the cap is inserted. This provides a strong connection, making it hard to be accidently removed, and provides and excelent seal around the bottom lip protecting the fastener from the elements. Our Self Threading Nut Caps have a hex head allow the user to use a spanner or wrench when threading this cap onto the bolt or stud. Our range is suitable for threads from M36 to M48, and are available in several lengths per size.
Our range comes in black as standard, but we are able to offer custom batches in any RAL colour required. For further info on custom colour runs, please get in touch on 01233 713581.
Our LDPE can widstand constant temperatures of 70ºC , and is resistant to:
- Seawater
- Non-Oxidising Acids
- Non-Oxidising Alkaline Solutions
- Alcohol
- Fuels
- Oils
- Greases
We also offer Secure Nut & Bolt Caps and Domed Nut & Bolt Caps.
Where are Thread Protection Caps commonly used?
Thread protection caps are commonly used in the following applications:
- Flanged Assemblies
- Outside and Industrial Lighting
- Bridges
- Playgrounds
- Marine Systems
- Road Guardrails
Looking for a custom style or variant for your use? Call one of our experts on 01233 713 581
Frequently Asked Questions
Self Threading Nut Caps feature an internal thread-forming design that grips directly onto the exposed thread as the cap is screwed into place. This creates a secure fit without the need for a matching nut beneath the cap.
Yes. Self Threading Nut Caps are ideal for protecting exposed threaded rods, threaded studs and bolts, helping prevent thread damage, corrosion and accidental injury from exposed threads.
Yes. Self Threading Nut Caps cover exposed threads, helping reduce the ingress of moisture, dirt and other contaminants that can lead to corrosion and premature thread wear.
