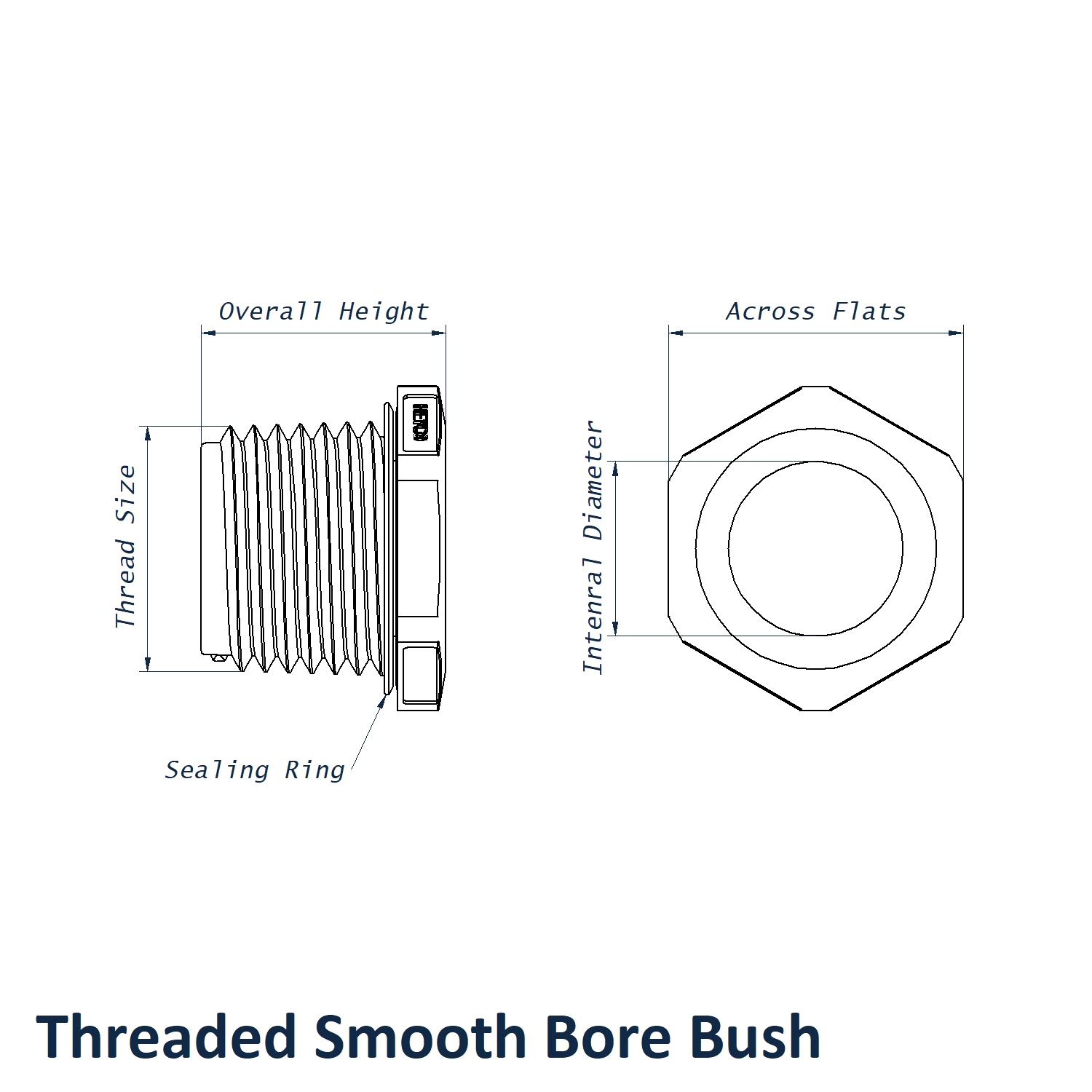

Threaded Smooth Bore Bushings
Our range of Threaded Smooth Bore Bushings are manufactured from a UL94V-2 rated Nylon 6/6 which is non conductive by design and capable of resisting temperatures between -18°C to 105°C. Commonly used to protect a threaded hole and allow the passing through of a cable, these products work to prevent avoidable damage that can be caused by a raw, exposed edge.
Much like our other 'Snap Fit Bushes', these bushings insulate a cable and can be used to protect anything from communication cables to tubing.
We stock these Threaded Smooth Bore Cable Bushings in a range of NPT thread sizes from 1/4 to 3/4 in both black or grey colour-ways. Please see the table below to view all sizes of this product. If you require a custom size or variation then we recommend contacting a member of our team.
Please note we also stock 'Snap In' versions of these products for non-threaded holes!
Key Product Features:
- Manufactured from a UL94V-2 rated Nylon 6/6
- Mechanically protects and insulates cables
- NPT threaded from 1/4 to 3/4
- Smooth central bore
Commonly Used For:
- To protect and insulate a cable when passing through a threaded hole
- To absorb excess vibration from passing through the cable
Need help with our Threaded Smooth Bore Cable Bushings? Call us on 01233 713 581
Frequently Asked Questions
Threaded Smooth Bore Bushings are designed to protect cables, wires and tubing as they pass through threaded holes. They help prevent abrasion from exposed threads whilst providing insulation and a smooth, protective passage for cables.
Threaded Smooth Bore Bushings screw directly into a threaded hole, creating a smooth internal bore that protects cables from damage caused by sharp thread edges whilst helping to reduce vibration.
Threaded Smooth Bore Bushings are manufactured from durable UL94V-2 rated Nylon 6/6, providing excellent strength, flame resistance and electrical insulation for commercial and industrial applications.
Exposed threaded holes can damage cables through abrasion over time. Threaded Smooth Bore Bushings eliminate contact with sharp thread edges, helping to extend cable life and improve the reliability of electrical installations.
Yes. Threaded Smooth Bore Bushings are suitable for protecting electrical cables, communication cables, fibre optic cables, pneumatic tubing and other flexible lines passing through threaded openings.
