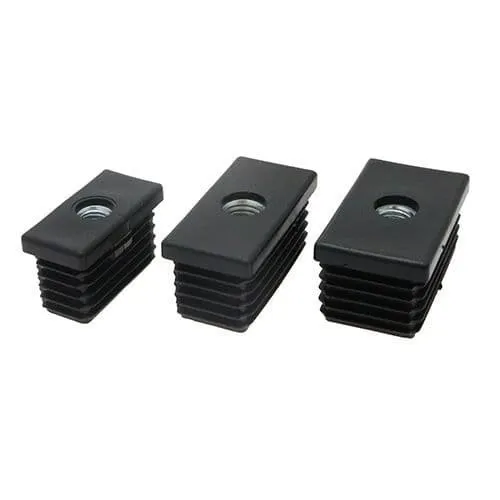

Rectangular Threaded Tube Inserts

Our Rectangular Threaded Tube Inserts are designed to provide a secure and functional solution for inserting threaded components into rectangular box sections tubes or pipes. Manufactured from durable materials such as LDPE plastic polypropylene and aluminium these inserts feature an integrated metal thread allowing for the attachment of components such as adjustable feet castor wheels and levelling glides. Their ribbed exterior ensures a tight and stable fit making them ideal for both light and heavy-duty applications.

Available in a range of sizes with standard M8 to M10 thread options our inserts offer an effective way to enhance the functionality of rectangular tubing commonly used in furniture industrial equipment and construction applications.

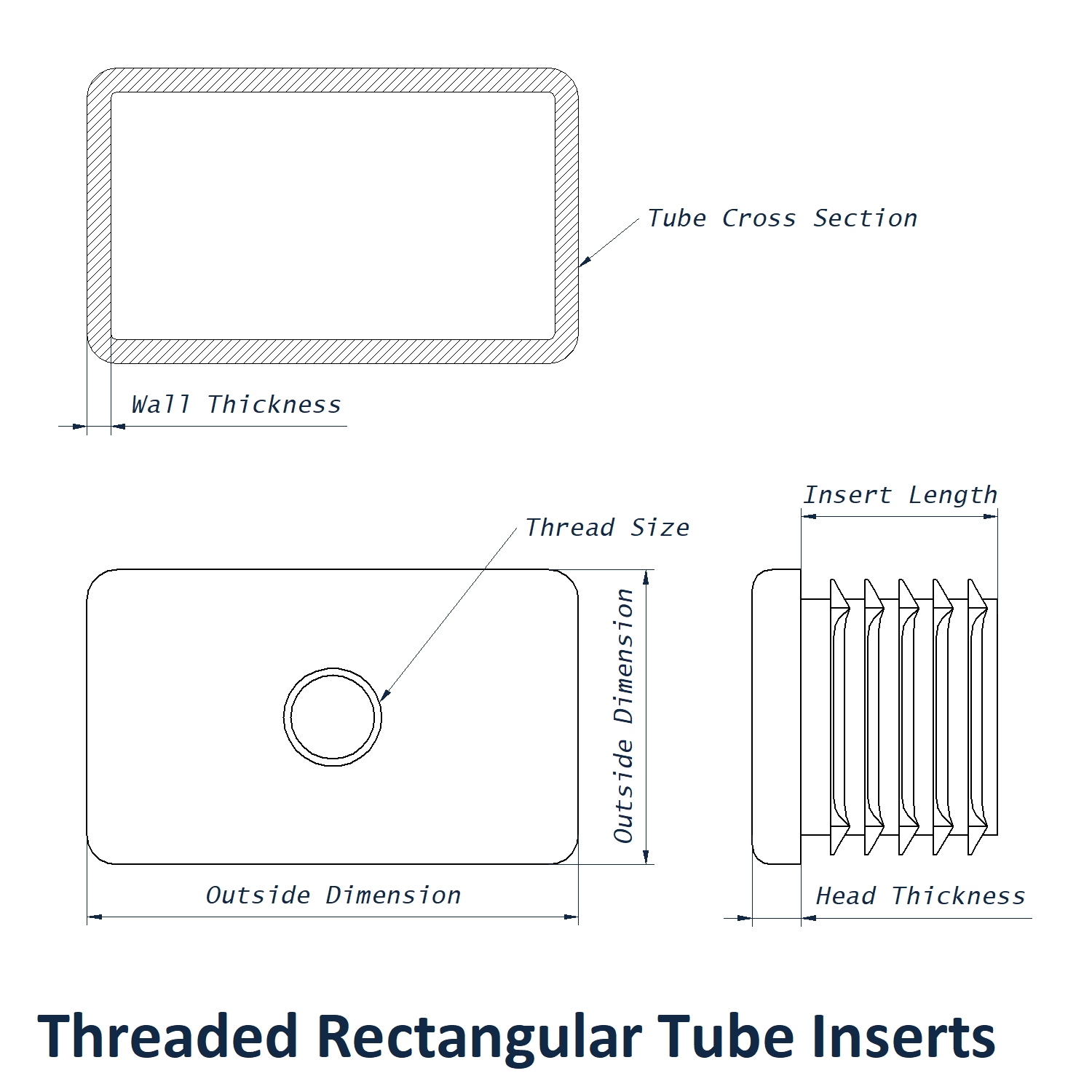

How to Measure for the Correct Size

Choosing the right Rectangular Threaded Tube Insert requires accurate measurements of your tubing. Follow these steps to ensure a proper fit:

• Measure the Outside Dimensions (OD): Use a calliper or ruler to measure the outermost width of your tube.
• Measure the Wall Thickness: Use the same tool to measure the thickness of the tube wall.
• Calculate the 'To Fit Tube' Size: Subtract the wall thickness from the outside diameter. This value represents the internal diameter of your tube.
• Match the Size: Compare your calculated size to our available product range to find a suitable insert.

If you need assistance with sizing or would like to request a free sample for testing our team is available to help. Contact us at 01233 713 581.

Key Product Features

• Manufactured from LDPE polypropylene or aluminium for durability
• Strong metal thread options in M8 and M10
• Ribbed exterior for a secure and stable fit
• Ideal for attaching adjustable feet castors and threaded components
• Available in sizes to fit tubes ranging from 30mm x 20mm up to 80mm x 30mm

Product Variations

Rectangular Plastic Threaded Tube Inserts

These lightweight yet durable inserts are made from LDPE or polypropylene. They offer an economical and effective solution for applications that require threaded components without adding significant weight. They are ideal for furniture office equipment and general fabrication.

Rectangular Metal Threaded Tube Inserts

Designed for heavy-duty applications these inserts feature a robust aluminium construction. Their increased strength makes them suitable for industrial equipment machinery and structural framework where additional load-bearing capacity is required.

Common Applications

• As fittings for adding adjustable feet to furniture tables and workstations
• For mounting castor wheels onto equipment racks and carts
• Used in industrial frameworks to provide a secure threaded mounting point
• For connecting or reinforcing rectangular box sections in metal fabrication

Need Help Choosing the Right Insert?

If you need assistance selecting the correct size or material for your application our expert team is here to help. Contact us on 01233 713 581 for guidance or to request a free sample to ensure the perfect fit.
