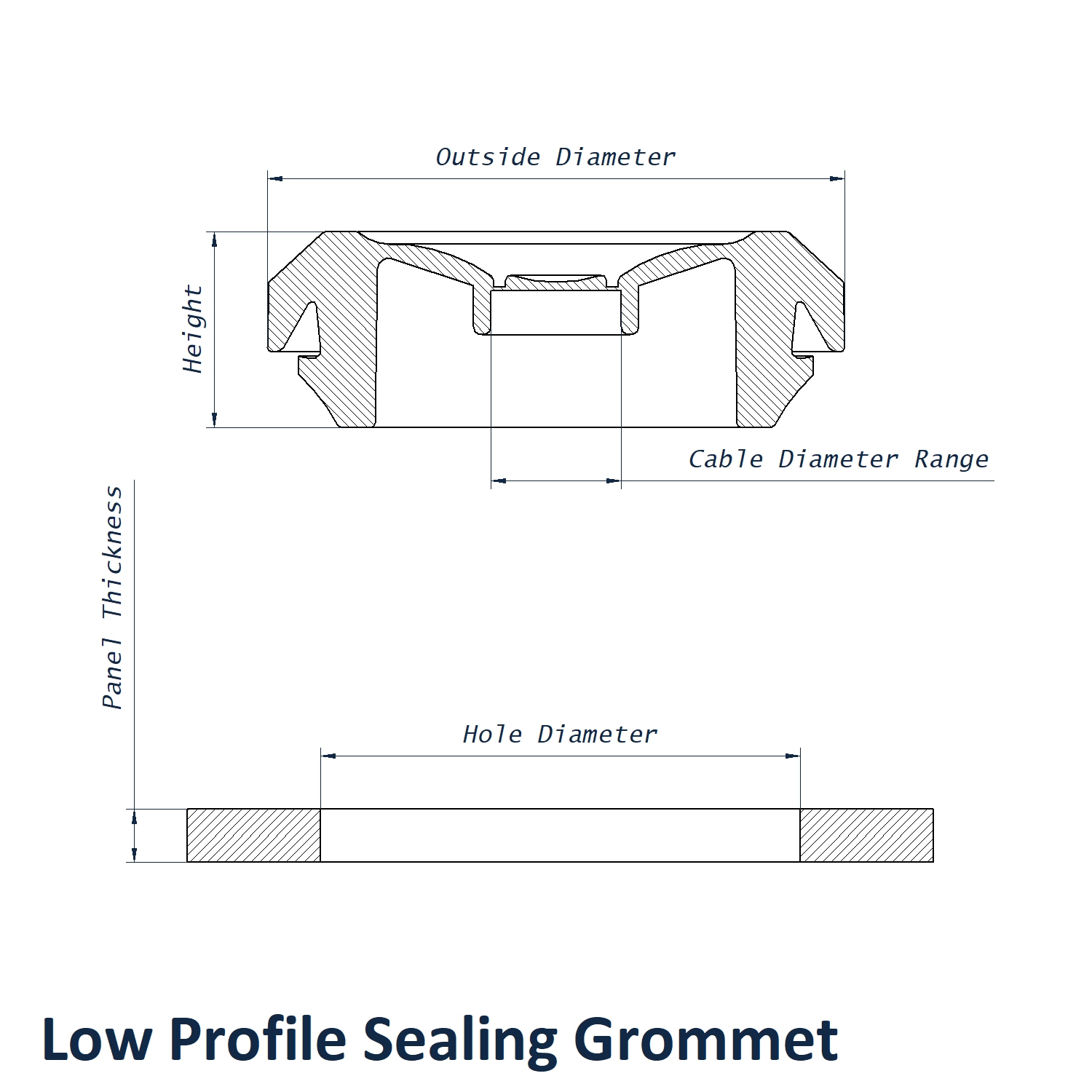

Low Profile Sealing Grommets IP67
Low profile sealing grommets, also known as waterproof grommets or compact sealing grommets, are specialised cable protection components designed to enable secure cable passage through sheet metal panels whilst providing IP67-rated environmental protection. These low profile grommets feature the smallest footprint of all sealing grommet designs, making them essential for tight or awkward spaces where standard grommets cannot fit. Manufactured from high-grade TPE (Thermoplastic Elastomer), they deliver robust waterproof grommet seal performance across a wide temperature range from -50°C to +125°C. We offer three styles of IP67 grommet: larger Conical shaped grommets which provide the best seal, Low Profile grommets which have the smallest footprint, and Strain Relief grommets where the grommet offers mechanical support to the cable. Widely used throughout UK industries including electrical engineering, telecommunications, HVAC systems, industrial machinery, automotive assemblies, and marine applications, low profile sealing grommets provide complete dust protection and water immersion resistance. Their primary benefit lies in delivering full IP67 environmental sealing whilst occupying minimal panel space, making them ideal for densely populated enclosures, junction boxes, and control panels where space constraints are critical but environmental protection cannot be compromised.
Available Materials & Style Options:
- TPE (Thermoplastic Elastomer) - standard material offering excellent flexibility and durability
- Temperature resistance: -50°C to +125°C for reliable performance in extreme conditions
- Available in Black (RAL9005), Light Grey (RAL7035), and White (RAL9010) colour options
- Metric sizing: M12, M16, M20, M25, M32, M40 thread sizes for comprehensive compatibility
- PG sizing: PG7, PG9, PG11, PG13.5, PG16, PG21 options for legacy installations
- Panel thickness accommodation: 0.5mm to 4.5mm depending on grommet size
- Custom colours and UL94-V0 flame resistant materials available upon request
Key Features & Benefits:
- IP67 certification to EN 60529 standard - complete dust protection and water immersion resistance up to 1 metre depth for 30 minutes
- Low profile design with minimal panel footprint - ideal for space-restricted installations and densely populated enclosures
- Superior TPE construction providing excellent chemical resistance, UV stability, and mechanical durability
- Wide operating temperature range from -50°C to +125°C ensuring reliable performance in harsh UK weather conditions
- Flexible installation accommodating various cable diameters within each grommet size range
- Vibration resistance making them suitable for mobile applications and industrial machinery
- Compliance with UK electrical regulations and building standards for professional installations
Common UK Use Cases:
- Electrical control panels and distribution boards requiring waterproof cable entry in confined spaces
- Outdoor lighting installations including street lighting, security systems, and architectural illumination where weather protection is essential
- Telecommunications equipment housings and junction boxes exposed to British weather conditions
- HVAC system controls and sensors requiring environmental sealing in compact enclosures
- Marine and automotive applications where space limitations demand low profile solutions with full IP67 protection
Related Vital Parts Products:
- Conical Sealing Grommets IP67 - enhanced sealing with dual-point cable grip for maximum retention
- Strain Relief Sealing Grommets IP67 - combined environmental protection with mechanical cable support
- Standard Rubber Grommets - open and closed designs for general cable protection applications
- Quick-Fit Grommets - snap-in installation for rapid assembly requirements
