Adjustable Torque Positioning Hinge
Our Adjustable Torque Positioning Hinges, also known as Torque Hinges, Friction Hinges, Adjustable Torque Hinges, or Adjustable Torque Control Hinges, are designed to provide precise control over lid, door, and panel positioning. These hinges allow the user to adjust the frictional torque via a screw, ensuring the hinge holds a lid or door securely fully open, fully closed, or anywhere in between. Once set, the torque remains constant throughout the motion, providing reliable and repeatable positioning.
Constructed from acetal polymer with a polycarbonate pin and zinc-plated steel adjustment screw, these hinges are lightweight, durable, and corrosion-resistant. The thru-hole mounting design ensures secure and easy installation. Their adjustable torque capability makes them suitable for a wide range of applications, accommodating doors or lids of varying weights during assembly.

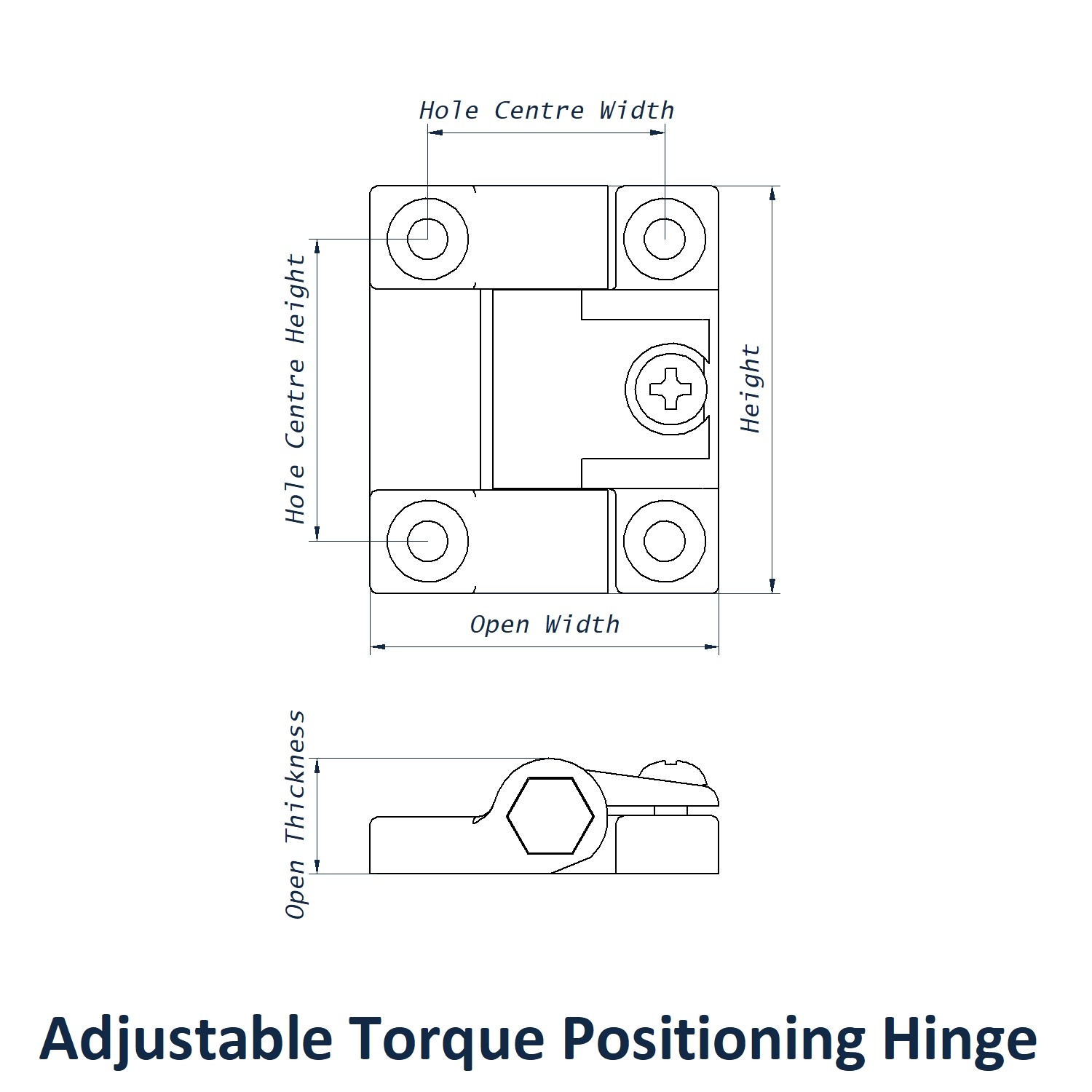

Large hinge: 65mm height, 56mm open width, vertical hole spacing 48mm, open horizontal hole spacing 36mm, thickness 19mm, 6.8mm diameter holes
Small hinge: 43mm height, 37mm open width, vertical hole spacing 32mm, open horizontal hole spacing 25mm, thickness 12mm, 4.2mm diameter holes
Available in black or white, these hinges are perfect for cabinets, enclosures, doors, display screens, and other mounted components where controlled movement and positioning are critical.
Key Features:
- Adjustable friction torque for precise positioning
- Holds lids and doors at any angle, fully open or closed
- Durable acetal polymer body with polycarbonate pin
- Zinc-plated steel screw for easy torque adjustment
- Thru-hole mounting for secure installation
- Suitable for multiple applications and adjustable to fit lid or door weight
