Heavy Duty Stainless Steel Door Stap Hinge
The Heavy Duty Stainless Steel door hinge is a strong and durable design, perfect for large doors, and has a high resistance to corrosion. The Heavy Duty Stainless Steel Door Hinges have countersunk square bore holes for use with Countersunk Screws, Raised Countersunk Screw or Square Neck Coach Bolts. The hinge has the unique feature of having a removable pin, allowing the door, gate or hatch to be quickly removed without having to be unattached a hinge leaf from the other components. This hinge also has a larger asymmetric leaf for larger doors and gates Heavy Duty Stainless Steel Door Hinges can be used for doors, gates and hatches on machinery or any outdoor use.

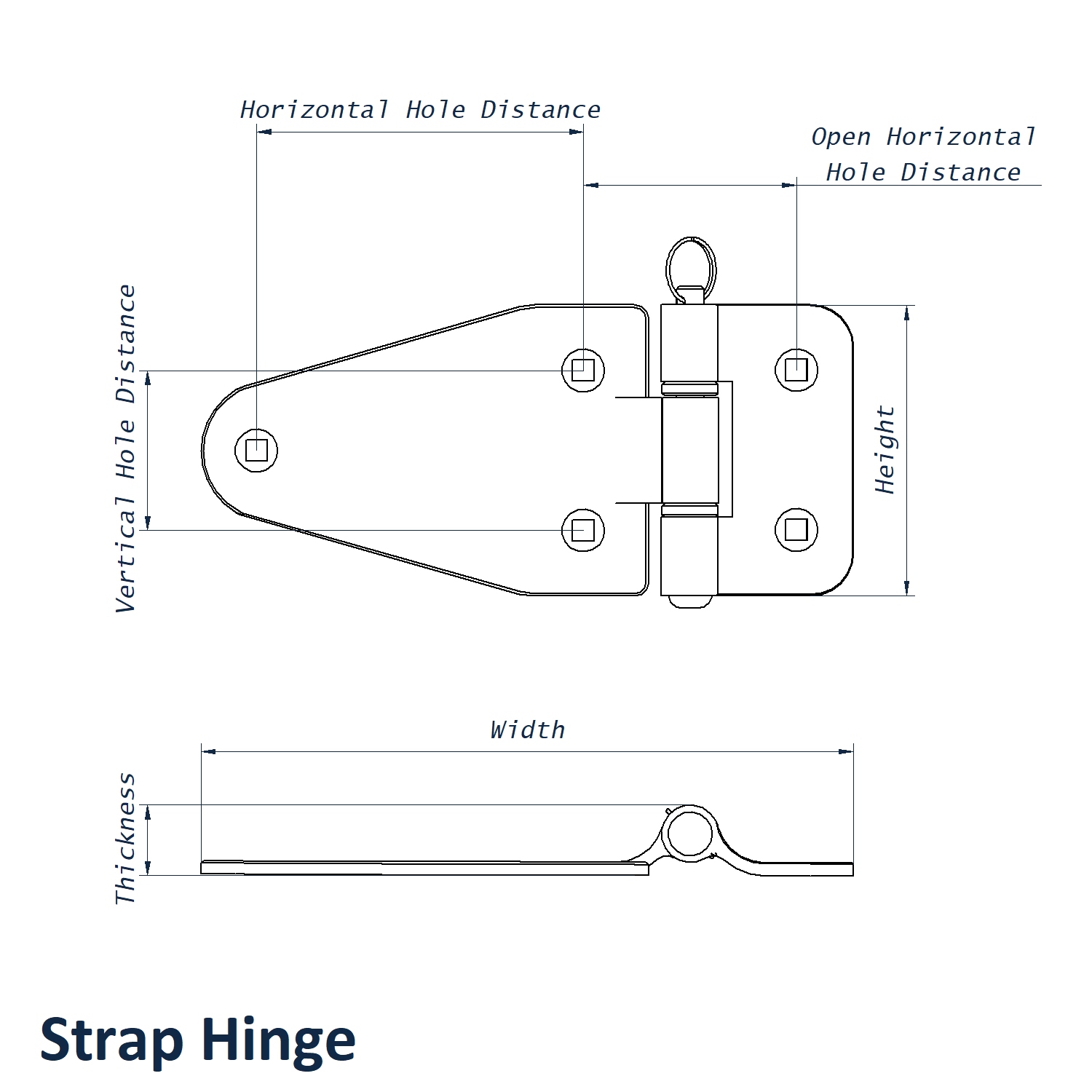

The Heavy Duty Stainless Steel Door Hinge with Removable Pin is available in a 82mm x 184mm size, with vertical hole distances of 45mm and open horizontal hole distances of 60mm. The holes are 6mm square bores. The Heavy Duty Stainless Steel Door Hinge with Removable Pin is available in an electrolytic polished finish. The Heavy Duty Stainless Steel Door Hinge is made from 304 Stainless Steel. The Heavy Duty Stainless Steel Door Hinge with Removable Pin may also be referred to as Stainless Steel Door Hinge, Steel Hinge, Door Hinge, Heavy Duty Door Hinge, Large Leaf Design Hinge
This Heavy Duty Stainless Steel Hinge is made from 304 Stainless Steel with an electrolytic polished finish. This Hinge can widstand a radial load of 400N and an axial load of 750N. The reccomended tightenting torque is 2.5Nm.
We also offer a Symetrical Butterfly Hinge variant.
Key Product Features:
- Manufactured from 304 Stainless Steel
- Countersunk square bore holes
- Removable Pin
Commonly Used For:
- Doors
- Industrial Gates
- Garden Gates
- Hatches
